Sinotruk Howo TX 8x4 Dump Truck

Sinotruk Howo TX 8x4 Dump Truck

Vehicle type
Dump Trucks
Model
ZZ3317N356GB1R
Dimension(mm)
10800*2550*3500
Engine
WD615.47
Max Horsepower
371HP
Transmission
HW19710
Drive type
8x4
Product Introduction
Overview

South Africa’s Top Choice for Heavy Duty Transportation: the Sinotruk Howo TX 8×4 Dump Truck
The Sinotruk Howo TX 8×4 Dump Truck has become a trusted piece of heavy-duty transportation equipment in South Africa’s construction and mining industries.

This Sinotruk Howo TX 8×4 Dump Truck South Africa has earned wide recognition in the South African market for its superior performance and reliability.
The Sinotruk Howo TX 8×4 Dump Truck South Africa is especially adapted to the complex and varied terrain conditions in South Africa. Whether it is a city construction project in Cape Town or a mining operation around Johannesburg, Sinotruk Howo TX 8×4 Dump Truck South Africa is able to fulfill all kinds of heavy-duty transportation tasks stably and reliably.

Many South African contractors choose the Sinotruk Howo TX 8×4 Dump Truck South Africa primarily because of its excellent 8×4 drive configuration that provides excellent traction on South Africa’s gravel roads and rough terrain. The rugged body construction of this Sinotruk Howo TX 8×4 Dump Truck South Africa is also able to cope well with the harsh South African working environment.

From the service support point of view, Sinotruk Howo TX 8×4 Dump Truck South Africa has a well-established local after-sales service network. Users in South Africa can conveniently get Sinotruk Howo TX 8×4 Dump Truck South Africa’s maintenance service and original spare parts supply, which greatly reduces the operating cost of the equipment.

Sinotruk Howo TX 8x4 Dump Truck South Africa

The market demand for Sinotruk Howo TX 8×4 Dump Truck  continues to grow as infrastructure development in South Africa continues to grow. This Sinotruk Howo TX 8×4 Dump Truck  is becoming an important force in the South African heavy haulage market due to its strong power, reliable quality and economical operating costs.

sinotruk howo TX 8×4 dump truck south africa-4
Parameters
SINOTRUK HOWO TX  8X4 DUMP TRUCK
Production Year 2025, new truck.
Cabin TX-F cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
High steel bumper, With inter-cooler fence.
Engine Diesel 4-stroke direct injection diesel engine
Engine model: WD615.47, 371HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
Transmission HW19710, 10F & 2R, with HW50 PTO
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering ZF power steering, model ZF8098, hydraulic steering with power assistance
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle VGD95, 9500 KGS
Steering with double T-cross section beam
Rear Axle MCP16ZG, 2*16000KG
Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles.
Chassis Front suspension:11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:11leaf semi-elliptic springs, bogie spring and stabilizer
Brake Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Fuel Tank 300L
Tire 12.00R20, Radial (steel wire) Tires. 12+1 Pics
Cargo Body 7300X2300X1700mm, 28.54Cubic Meters
Thickness: Floor 8 mm, Side 6 mm
Front Lifting System
Overall Dimension

11800*2550*3500 mm

Color

Optional

Product Advantages
SINOTRUK HOWO -2
High Comfort
Featuring an adjustable air suspension seat, the Sinotruk Howo TX 8x4 Dump Truck offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort. Crafted from high-quality, breathable materials, the seat effectively reduces fatigue during long drives. The thoughtfully designed rest area prioritizes driver well-being, featuring a comfortable sleeper berth to ensure a restorative rest after completing a journey, allowing drivers to recharge and prepare for the road ahead.
SINOTRUK HOWO -1
Excellent Ergonomic Design
Sinotruk Howo TX 8x4 Dump Truck ,All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.
SINOTRUK HOWO -5
SINOTRUK's Exclusive High-End Power
Sinotruk Howo TX 8x4 Dump Truck ,Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.
SINOTRUK HOWO -4
Transmission - Always in the Right Gear
Sinotruk Howo TX 8x4 Dump Truck ,The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.
SINOTRUK HOWO -6
Axles - Carry More, Cost Less
Sinotruk Howo TX 8x4 Dump Truck ,The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life to accommodate various road conditions.
Product Applications

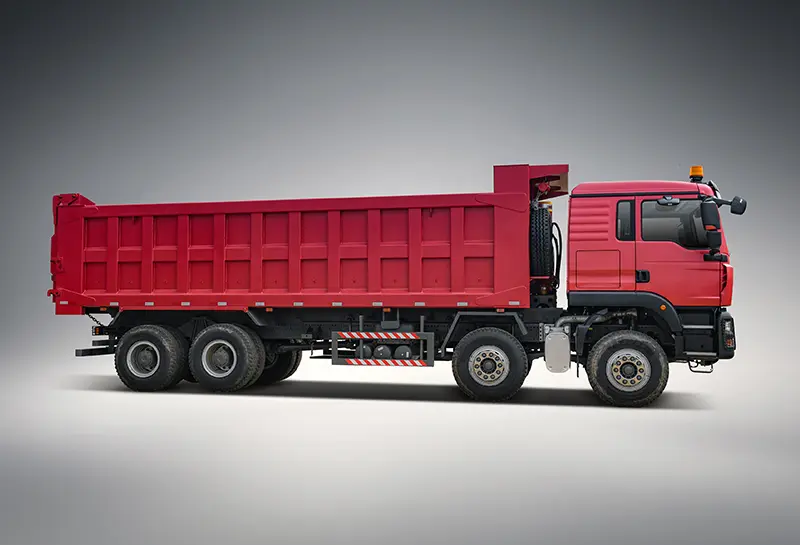

sinotruk howo TX 8×4 dump truck south africa-2
Sinotruk Howo TX 8x4 Dump Truck
sinotruk howo TX 8×4 dump truck south africa
Sinotruk Howo TX 8x4 Dump Truck

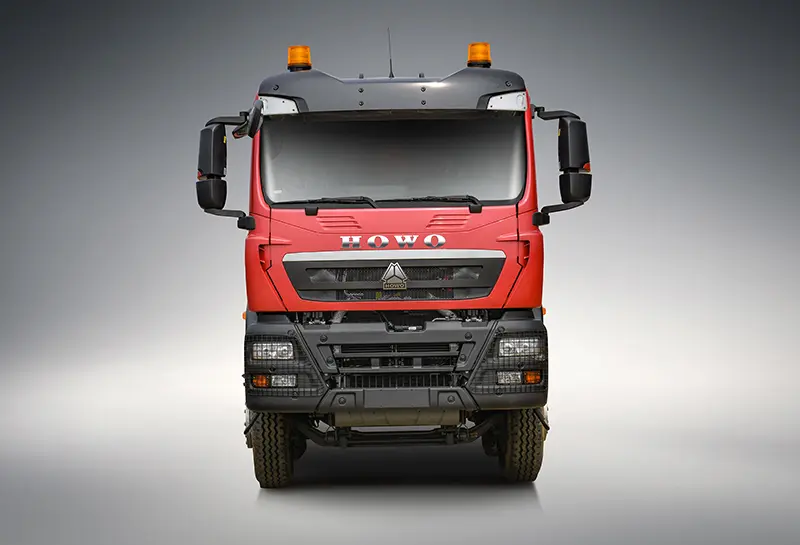

sinotruk howo TX 8×4 dump truck south africa-1
Sinotruk Howo TX 8x4 Dump Truck
sinotruk howo TX 8×4 dump truck south africa-3
Sinotruk Howo TX 8x4 Dump Truck

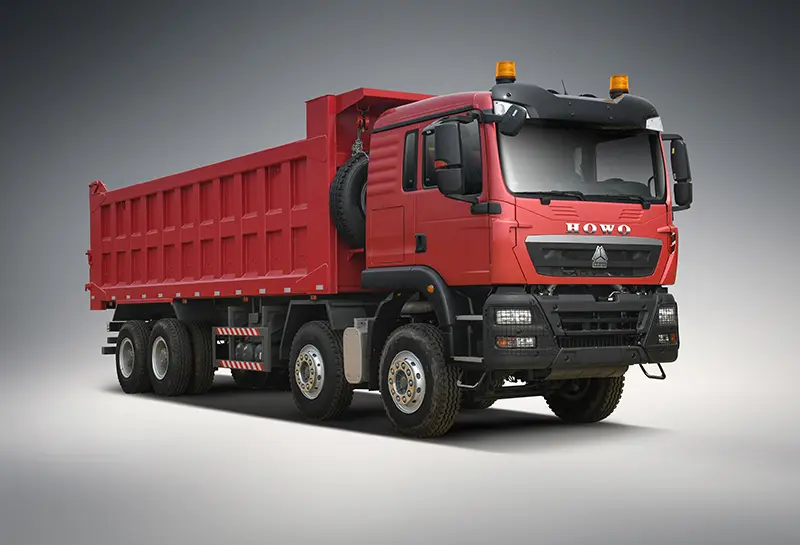

sinotruk howo TX 8×4 dump truck south africa-4
Sinotruk Howo TX 8x4 Dump Truck
