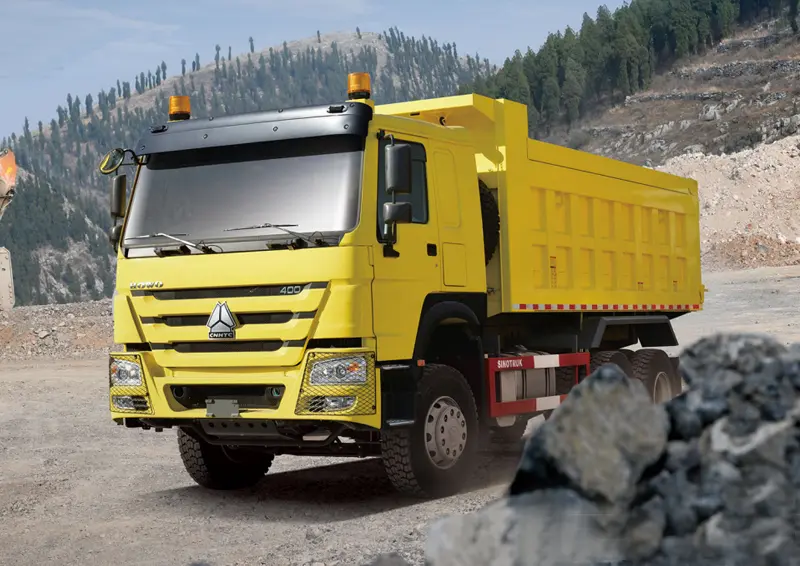

Sinotruk Howo 6x6 dump truck

Vehicle type

Dump Trucks

Dimension(mm)

8545x2496x3386

Engine

WD615.47

Curb weight(kg)

12290

Max speed(km/h)

Model

ZZ3257N3647A

Drive type

6x6

WhatApp Message

Product Introduction

Overview

Sinotruk Howo 6×6 dump truck durable and bearing capacity
Sinotruk Howo 6×6 dump truck adopt through-type technology and rear axle single-stage reducer, so which is with high efficiency drive. The use of advanced design and optimized the design of he frame, making the structure more reasonable, durable, with strong bearing capacity.

Sinotruk Howo 6×6 dump truck 25 tons dump truck Endless power and the master of projects
Adopt optimized design of lift hydraulic and lift units, with reliable quality and stable lifting.

Sinotruk Howo 6x6 dump truck

The New Sinotruk Howo 6×6 dump truck combines power, performance, and reliability to meet the demands of modern industries. With its innovative features and superior capabilities, it is poised to revolutionize the way we think about dump trucks.

Parameters

Truck Model		Left Hand Drive or Right Hand Drive model
Truck Brand		Sinotruk Howo 6×6 dump truck
Dimension(Lx W xH)		8545x2496x3386
Cargo body size (LWH, mm)		5800x2300x1400
Cargo body thickness(mm)		bottom:8mm, side:6mm, or customized as you required
Lift type of Carriage		Ventral lifting or front tipping
Approaching angle/Departure angle(°)		19/26
Overhang(front/rear) (mm)		1500/1739
Wheel base (mm)		3625+1350
Max speed(km/h)		75
Curb weight(kg)		12290
Loading Weight(kg)		25000
Fuel Tanker		300L with locking fuel cap
Fuel consumption(L/100km)		32
Clutch		Single-plate dry clutch Φ430mm
Engine	Model	WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling ,
	Horse Power,	371HP
	Emission Standard	EURO II
Transmission	Model	HW 19710,10 forwards and 2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
	Auxiliary brake	Engine exhaust brake
Steering system	Model	ZF8098/ZF8118 hydraulic steering with power assistance
Front axle	HF9
Rear axle	HC16
Tire	12.00R20, 12.00-20
Electrical system	Operating voltage		24V,negative grounded
	Starter		24V,7.35KW
	Alternator		28V,1500W
	Batteries		2*12V.165Ah

Product Advantages

Smarter and more convenient

The 7-inch central control screen is adopted for convenient human-computer interaction. The multi-functional leather steering wheel are provided with 16 buttons, which are easy to operate and can be upgraded with functions such as Bluetooth phone, MP5 player, instrument menu and AEB.

More comfortable

Optimized air distribution at the driver and passenger side vents can provide a more comfortable body feeling. The overall air volume has increased by 9.5% compared to the previous generation. Under the sleeper, an integrated super-large storage space is added to make the space utilization more reasonable.

More safely,more quieter

The cab is designed with four-point suspension, which can filter out bumps and vibrations. Moreover, the cab shock absorbers and chassis shock absorbers have undergone comprehensive recalibration and tuning, so that the noise level of the complete vehicle is reduced by 3dB, creating a quieter driving environment.

Golden Power

The Howo TX truck is upgraded to a new generation of golden power system, providing a richer range of power configurations to meet different needs. It can output strong power of up to 540 HP and 2500 Nm, and fully meet the emission requirements of Euro ll to Euro VI.

Advanced Driver Assistance System (ADAS)

We embrace a people-first approach to safety, putting the well-being of all road users at the forefront. Utilizing digital technology for intelligent monitoring and control, we wholeheartedly safeguard your safety during your journey.

Product Applications

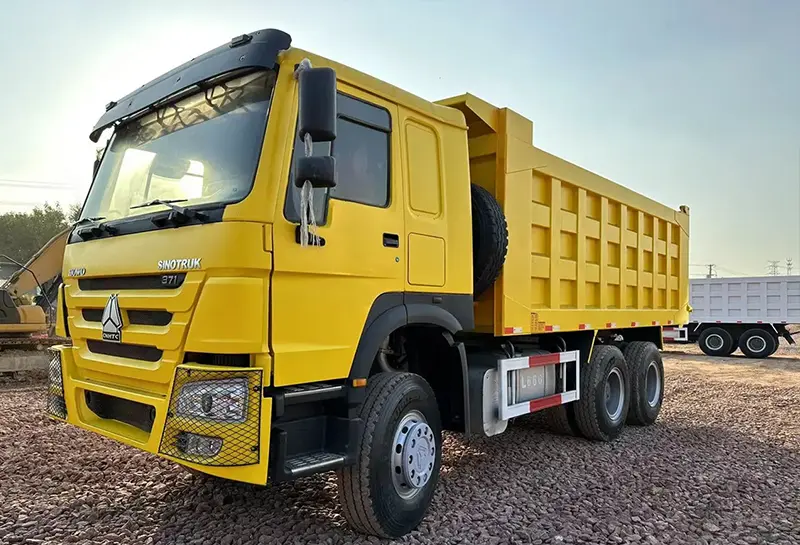

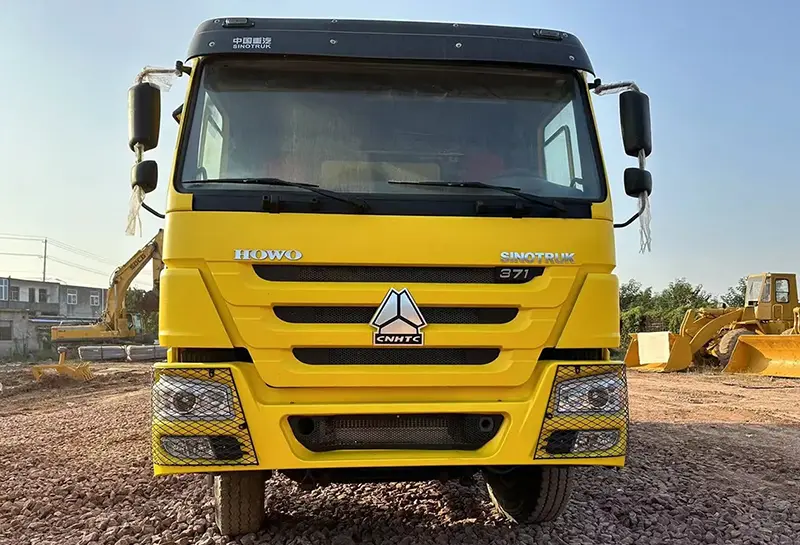

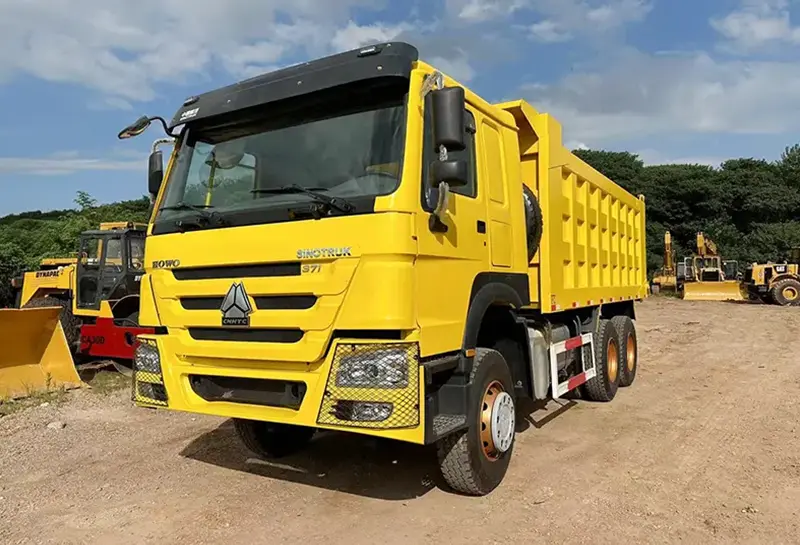

Sinotruk Howo 6x6 dump truck

Sinotruk Howo 6x6 dump truck

Sinotruk Howo 6x6 dump truck

Sinotruk Howo 6x6 dump truck

Sinotruk Howo 6x6 dump truck
