Sinotruk Howo TX 371 6x4 Tipper Truck

Sinotruk Howo TX 371 6x4 Tipper Truck

Vehicle type
Dump Trucks
Model
ZZ3257N384GB1R
Dimension(mm)
8600*2550*3450
Engine
WD615.47
Max Horsepower
371HP
Transmission
HW19710
Drive type
6x4
Product Introduction
Overview

Efficient Transportation: Sinotruk Howo TX 371 6×4 Tipper Truck
In the field of heavy-duty dump trucks, the Sinotruk Howo TX 371 6×4 Tipper Truck has become the preferred transportation equipment for many projects due to its outstanding performance and reliable quality. This Sinotruk Howo TX 371 6×4 Tipper Truck is powered by a 371 hp engine, providing strong and long-lasting power for a variety of heavy-duty operations.

The Sinotruk Howo TX 371 6×4 Tipper Truck’s well-designed 6×4 drive configuration ensures excellent towing performance and fuel economy. In urban construction and roadwork, the Sinotruk Howo TX 371 6×4 Tipper Truck demonstrates excellent maneuverability and control, and is able to easily cope with a variety of complex work environments.

The durability and reliability of the Sinotruk Howo TX 371 6×4 Tipper Truck has brought significant economic benefits and a satisfactory return on investment, as many transportation companies have reported that the maintenance costs of the truck are relatively low and breakdowns are rare.

Sinotruk Howo TX 371 6x4 Tipper Truck

From a technical point of view, Sinotruk Howo TX 371 6×4 Tipper Truck adopts an advanced hydraulic tipping system, which makes tipping efficient and easy to operate. The Sinotruk Howo TX 371 6×4 Tipper Truck has an optimized cargo box design, which not only has a high loading capacity, but also unloads the truck thoroughly, greatly improving operational efficiency.

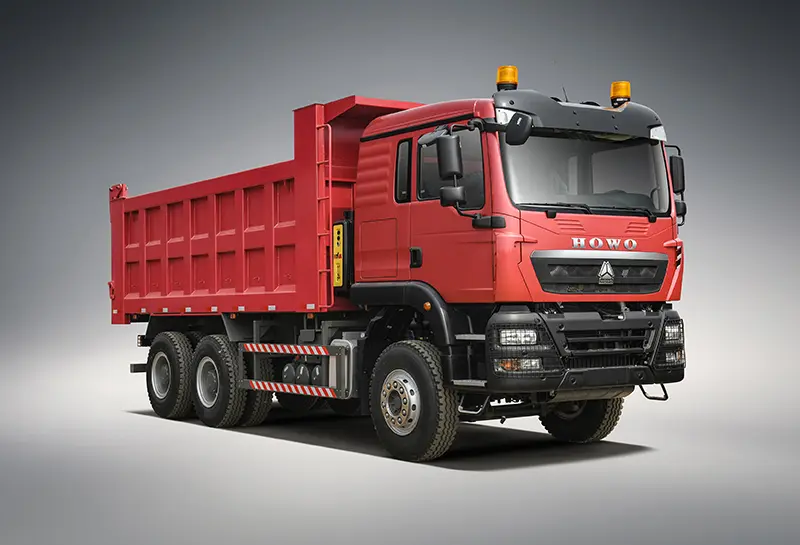

sinotruk howo TX 371 6×4 tipper truck-4
Parameters
SINOTRUK HOWO TX 371 6X4 TIPPER TRUCK
Production Year 2025, new truck.
Cabin TX-F cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
High steel bumper, Inter-cooler Protection.
Engine Diesel 4-stroke direct injection diesel engine
Engine model: WD615.47, 371HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement:9.726L
Transmission HW19710, 10F & 2R, with HW50 Direct PTO
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering ZF power steering, model ZF8098, hydraulic steering with power assistance
Front Axle VGD95, 1*9500 KGS
Steering with double T-cross section beam
Rear Axle MCP16ZG, 2×16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio:5.92
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Chassis Front suspension:11semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Fuel Tank 300L
Tire 12.00R20, Radial (steel wire) Tires . 10+1 Pics
Cargo body 5400x2300x1450mm. 18 Cubic Meters
Color Optional
Overall Dimension 8600*2550*3450 mm
Product Advantages
SINOTRUK HOWO -5
SINOTRUK's Exclusive High-End Power
Sinotruk Howo TX 371 6x4 Tipper Truck,Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.
SINOTRUK HOWO -4
Transmission - Always in the Right Gear
Sinotruk Howo TX 371 6x4 Tipper Truck,The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.
Product Applications
sinotruk howo TX 371 6×4 tipper truck-4
Sinotruk Howo TX 371 6x4 Tipper Truck

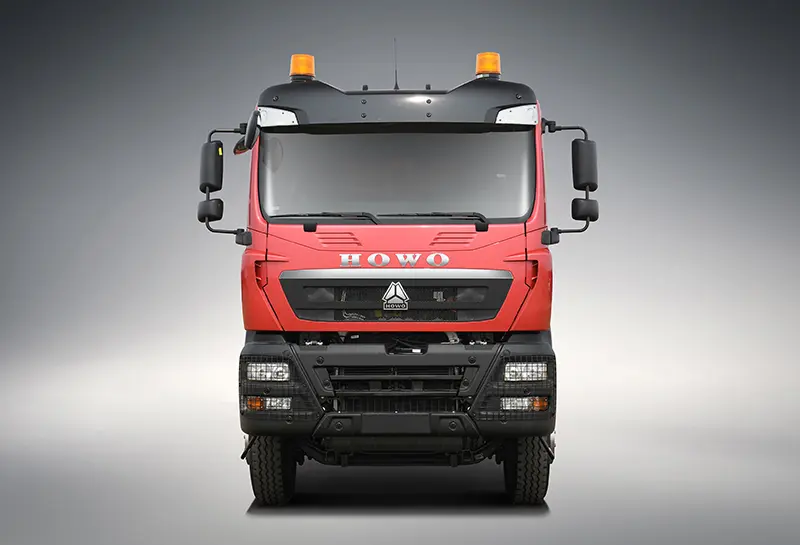

sinotruk howo TX 371 6×4 tipper truck-3
Sinotruk Howo TX 371 6x4 Tipper Truck

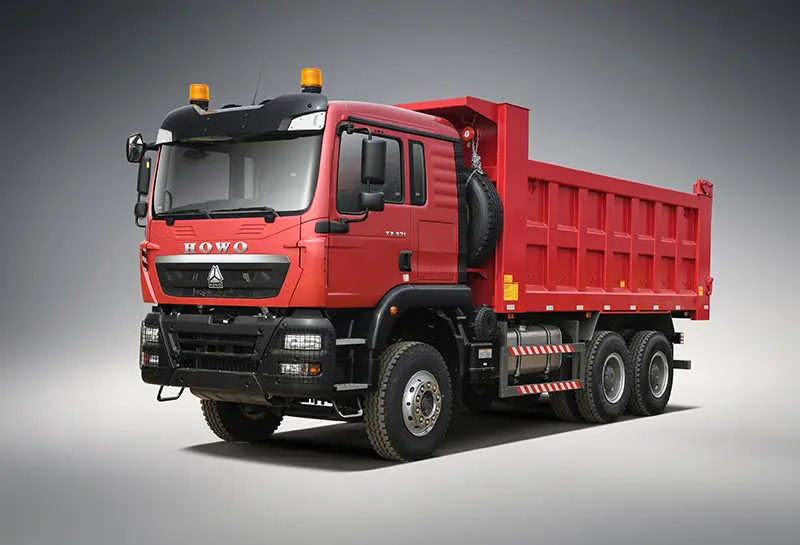

sinotruk howo TX 371 6×4 tipper truck
Sinotruk Howo TX 371 6x4 Tipper Truck

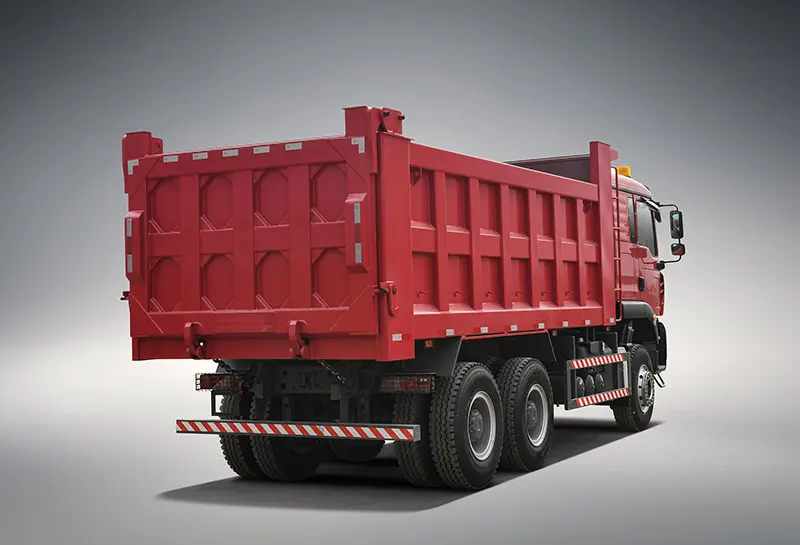

sinotruk howo TX 371 6×4 tipper truck-2
Sinotruk Howo TX 371 6x4 Tipper Truck

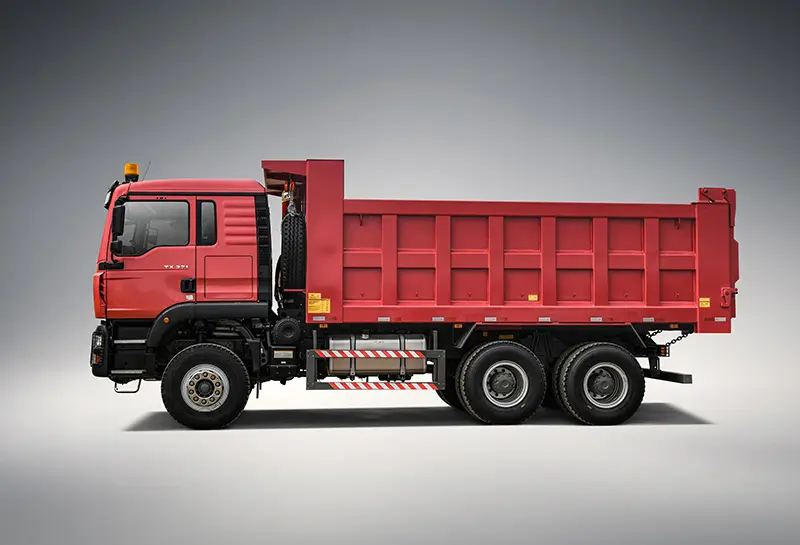

sinotruk howo TX 371 6×4 tipper truck-1
Sinotruk Howo TX 371 6x4 Tipper Truck
