Sinotruk Howo T5G 8x4 Tipper Truck

Sinotruk Howo T5G 8x4 Tipper Truck

Vehicle type
Dump Trucks
Model
ZZ3317V386GE1
Dimension(mm)
9630x2550x3450
Engine
WP12S430E201
Max Horsepower
430HP
Transmission
HW19710
Drive type
8x4
Product Introduction
Overview

Hot Selling Model in China Market: Sinotruk Howo T5G 8×4 Tipper Truck
In China’s heavy-duty truck market, Sinotruk Howo T5G 8×4 Tipper Truck  is highly regarded for its advanced technology and excellent performance. This Sinotruk Howo T5G 8×4 Tipper Truck  represents the latest technology in China’s heavy-duty truck manufacturing industry and enjoys a high reputation in the domestic market.

This Sinotruk Howo T5G 8×4 Tipper Truck  utilizes the latest cab design of the T5G series, which provides the driver with a more comfortable operating environment and better visibility.

Global Construction Engineering showed a strong interest in the Sinotruk Howo T5G 8×4 Tipper Truck, mainly due to its 8×4 drive configuration, which is well adapted to the complex road conditions in China. The Sinotruk Howo T5G 8×4 Tipper Truck is an industry leader in terms of load capacity and fuel economy.

With the continuous promotion of infrastructure construction, Sinotruk Howo T5G 8×4 Tipper Truck  has a bright market prospect. This Sinotruk Howo T5G 8×4 Tipper Truck  will surely continue to play an important role in China’s heavy truck market.

Sinotruk Howo T5G 8x4 Tipper Truck For Sale In China

In terms of after-sales service, Sinotruk Howo T5G 8×4 Tipper Truck  has a nationwide service network. After purchasing Sinotruk Howo T5G 8×4 Tipper Truck , international customers can enjoy professional maintenance services nearby to ensure the efficient operation of the vehicle.

sinotruk howo t5g 8×4 tipper truck for sale in china-2
Parameters
SINOTRUK HOWO T5G 8X4 TIPPER TRUCK
Production Year new truck.
Cabin TX-F cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
High steel bumper, Inter-cooler Protection.
Engine Diesel 4-stroke direct injection diesel engine
Engine model:WP12S430E201, 430HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement:9.726L
Transmission HW19710, 10F & 2R, with HW50 Direct PTO
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering ZF power steering, model ZF8098, hydraulic steering with power assistance
Front Axle VGD95, 1*9500 KGS
Steering with double T-cross section beam
Rear Axle MCP16ZG, 2×16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio:5.92
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Chassis Front suspension:11semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Fuel Tank 300L
Tire 12.00R20, Radial (steel wire) Tires . 10+1 Pics
Cargo body 5400x2300x1450mm. 18 Cubic Meters
Color Optional
Overall Dimension 8600*2550*3450 mm
Product Advantages
SINOTRUK HOWO -3
All-Around Vision, Everything in Sight
Sinotruk Howo T5G 8x4 Tipper Truck ,Featuring wide-view design, four-way monitoring system (optional), and observation window (optional), the driver is accessible to comprehensive visual information about the surrounding environment and traffic dynamics of the vehicle, thus making accurate assessments, and safely responding to various situations. Designed with the driver in mind, every detail ensures an intuitive and reliable experience, making every journey effortless and worry-free.
SINOTRUK HOWO -8
Strong Power, Efficient and Reliable
Meticulous design and optimization of the Sinotruk Howo T5G 8x4 Tipper Truck powertrain, combined with careful component matching and integration, delivers seamless power transmission, maximized efficiency, enhanced vehicle performance, and significantly reduced fuel and maintenance expenses. It delivers stable and reliable power support for a wide range of applications, including long-distance hauling, heavy-load transport, and challenging road conditions.
SINOTRUK HOWO -5
SINOTRUK's Exclusive High-End Power
Sinotruk Howo T5G 8x4 Tipper Truck,Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.
SINOTRUK HOWO -4
Transmission - Always in the Right Gear
Sinotruk Howo T5G 8x4 Tipper Truck,The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.
SINOTRUK HOWO -6
Axles - Carry More, Cost Less
Sinotruk Howo T5G 8x4 Tipper Truck,The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life to accommodate various road conditions.
Product Applications

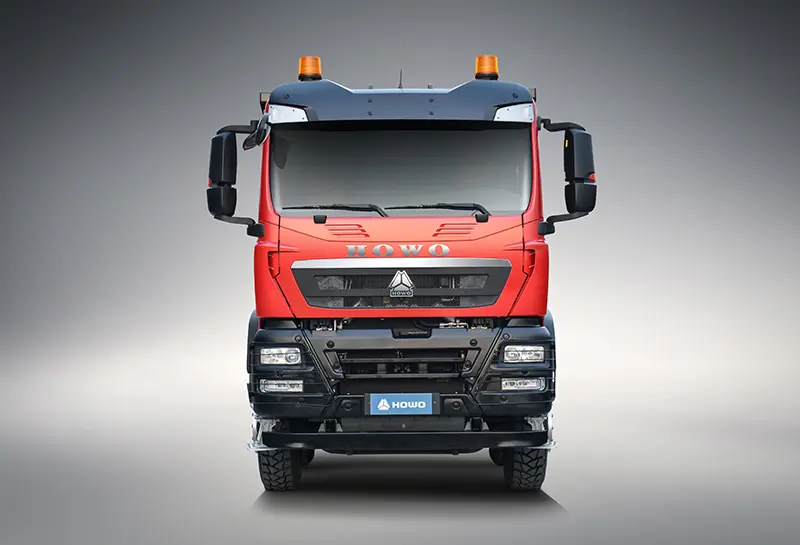

sinotruk howo t5g 8×4 tipper truck for sale in china-4
Sinotruk Howo T5G 8x4 Tipper Truck
sinotruk howo t5g 8×4 tipper truck for sale in china
Sinotruk Howo T5G 8x4 Tipper Truck

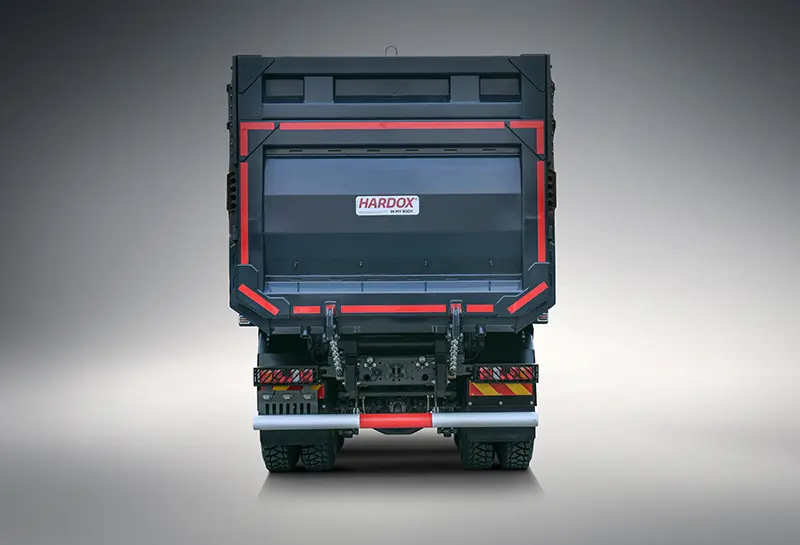

sinotruk howo t5g 8×4 tipper truck for sale in china-3
Sinotruk Howo T5G 8x4 Tipper Truck

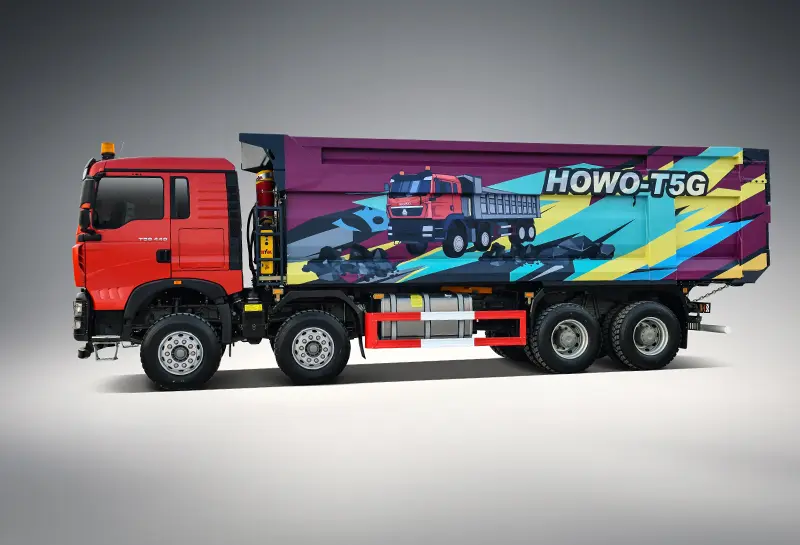

sinotruk howo t5g 8×4 tipper truck for sale in china-1
Sinotruk Howo T5G 8x4 Tipper Truck

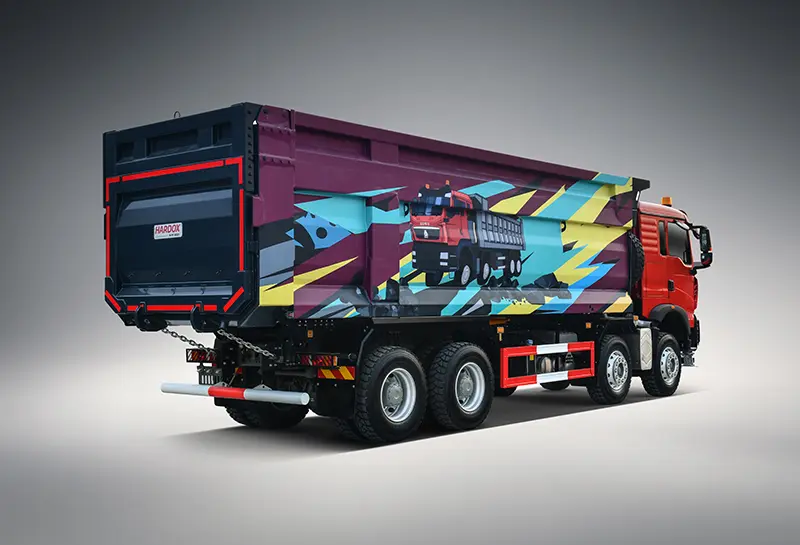

sinotruk howo t5g 8×4 tipper truck for sale in china-2
Sinotruk Howo T5G 8x4 Tipper Truck
