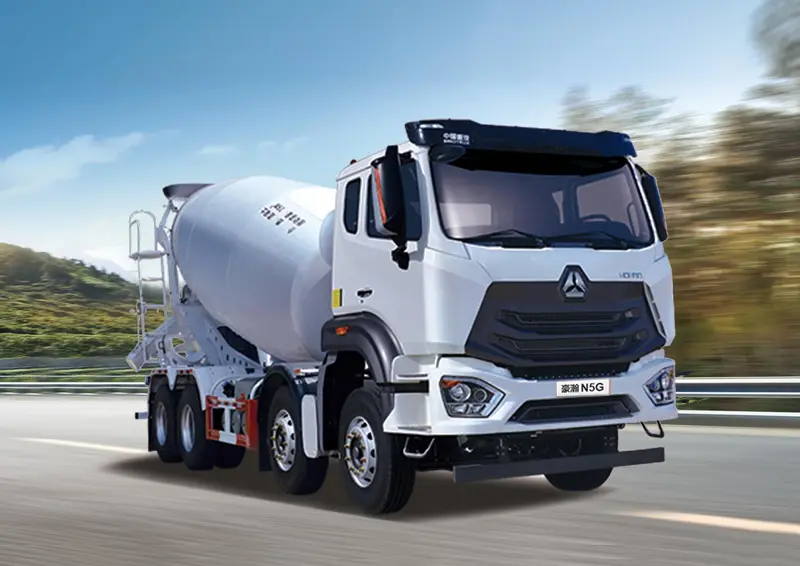

Sinotruk Howo NX 8x4 Mixer Truck

Vehicle type

Mixer Trucks

Model

ZZ1317V466JB1R

Power

371HP

Engine

WD615.47

Stirring dynamic volume

14m³

Transmission

Sinotruck HW13710L

Drive type

8x4

WhatApp Message

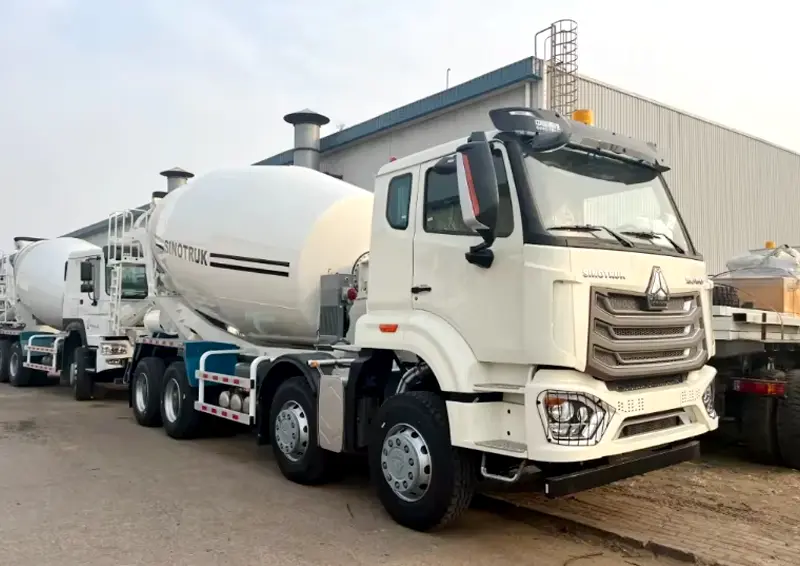

Sinotruk Howo NX 8×4 Mixer Truck-2d4376db0-62f4-11f0-9d5a-c5695b059d88

Product Introduction

Overview

As the fist product of Sinotruk Howo NX series, Sinotruk Howo NX 8×4 Mixer Truck is widely praised in the infrastructure field for its excellent performance. This 8×4 professional mixer truck is equipped with the MC11 series engine of MANN-TECHNOLOGY, with a maximum output of 440 hp, together with the HW19710CL gearbox, which provides Sinotruk Howo NX 8×4 Mixer Truck with a strong power guarantee.

The mixing drum of the Sinotruk Howo NX 8×4 Mixer Truck is made of high-strength, wear-resistant steel, with a volume range of 9-12 cubic meters, and a unique spiral blade design that ensures the homogeneity of the concrete. The modular design of the chassis and the optimized wheelbase of 1950+3450+1350mm make the Sinotruk Howo NX 8×4 Mixer Truck a well-balanced mixer truck in terms of throughput and payload. The Intelligent Control System, equipped with functions such as material level monitoring and speed memory, significantly improves the Sinotruk Howo NX 8×4 Mixer Truck’s operational precision.

Sinotruk Howo NX 8x4 Mixer Truck

In terms of safety, Sinotruk Howo NX 8×4 Mixer Truck is equipped with intelligent assistance systems such as AEBS automatic emergency braking and LDWS lane departure warning as standard. The GB7258-compliant all-steel cab has passed the ECE R29 crashworthiness certification, providing drivers with all-round protection. This model has been widely used in national key projects, demonstrating Sinotruk Howo NX 8×4 Mixer Truck’s technological leadership in the field of heavy commercial vehicles.

Parameters

SINOTRUK HOWO NX 8X4 MIXER TRUCK
Cabin	H77L cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
Engine	Diesel 4-stroke direct injection diesel engine Engine model: WD615.47 6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission	HW19710, 10F & 2R Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle	VGD95, 1×9500 KGS Steering with double T-cross section beam
Rear Axle	MCX16ZG, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Chassis	Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires	12.00R20, Radial (steel wire) Tires. 10+1 Pics.
Mixer Body	Tank Body: it can as your requirements
Fuel Tank	400L
Overall Dimension	900025503950 mm

Product Advantages

Sinotruk howo NX

HOWO-NX with high price-quality ratio
The super high price-performance ratio of the HOWO NX series will provide you with comfort, reliability and benefits that far exceed your expectations.

High comfort

The HOWO - NX series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.

Safe cabin

The rigidity and strength of the cab body meet the EU ECE R29 certification standard; the design of the wide-angle rear-view mirror and lower viewing mirror increases the field of vision by 15% and improves safety.

Air cushion

The air cushion helps the driver quickly find a suitable seating position; the ergonomic design of the seat belt and seat helps avoid the driver feeling suffocated due to emergency braking while driving.

Four-point air suspension

The four-point air suspension has good stability, shock-absorbing effect and comfort, and also has the function of tilting the cabin backward during a collision to ensure the safety of passengers.

Product Applications

Sinotruk Howo NX 8x4 Mixer Truck
