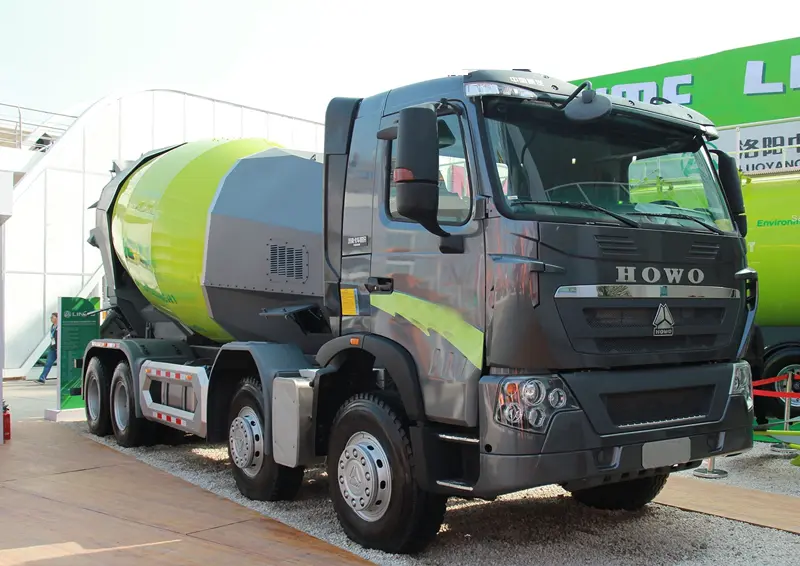

Sinotruk Howo T7H 8x4 Mixer Truck

Sinotruk Howo T7H 8x4 Mixer Truck

Vehicle type
Mixer Trucks
Model
ZZ5317GJBV366HD1
Dimension
11035x2496x3980mm
Maximum speed
78km/h
Transmission:
Sinotruck HW19710
Engine
Sinotruck MC11.40-40
Maximum horsepower
400hp
Product Introduction
Overview

Efficient Engineering Solution: Sinotruk Howo T7H 8×4 Mixer Truck
As the flagship model of Sinotruk, Sinotruk Howo T7H 8×4 Mixer Truck has become the core equipment in the field of concrete transportation by virtue of its excellent power performance and specialized design. Equipped with a 266-440PS high-power engine (meeting National 6 to Euro 5 emission standards), combined with an 8×4 all-wheel drive chassis and 16T+16T rear axle reinforced structure, the model can carry up to 14-16 cubic meters of concrete, easily coping with the demanding needs of heavy-duty scenarios such as mines and infrastructures.

The core highlight of the Sinotruk Howo T7H 8×4 Mixer Truck is its scientific mixing system. The mixing drum is made of wear-resistant alloy material and double screw blade design, together with the intelligent hydraulic control system and speed reducer, ensure the concrete is evenly mixed with very low residual rate, which significantly improves the construction efficiency. The Sinotruk Howo T7H 8×4 Mixer Truck chassis is modularly reinforced and supports 12.00R20 or 315/80R22.5 tires, which further enhances the passability and stability under complicated road conditions.

Whether it is a large-scale commercial concrete mixing plant or a remote infrastructure project, Sinotruk Howo T7H 8×4 Mixer Truck continues to promote the professional upgrading of the engineering transportation field with the advantages of high reliability, intelligence and low operating costs, and becomes an indispensable “mobile mixing station” for modern construction.

Sinotruk Howo T7H 8x4 Mixer Truck

In terms of safety and intelligence, the model is equipped with panoramic image, blind zone monitoring and lane departure warning system, together with TX-M or TX-F wide-body cab (single-deck sleeper design), providing drivers with a comfortable and safe operating environment. In addition, China National Heavy Duty Truck(CNHTC)’s nationwide after-sales service network and efficient response mechanism7 guarantee the vehicle’s full life-cycle maintenance and minimize downtime.

Sinotruk Howo T7H 8×4 Mixer Truck-1
Parameters
SINOTRUK HOWO T7H 8X4 MIXER TRUCK
Cabin HW76 cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
Engine Diesel 4-stroke direct injection diesel engine
Engine model:WP12S400E201/WP12.400E201
6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission HW19710, 10F & 2R
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle VGD95, 1×9500 KGS
Steering with double T-cross section beam
Rear Axle MCX16ZG, 2×16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Chassis Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members
Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires 12.00R20, Radial (steel wire) Tires. 10+1 Pics.
Mixer Body Tank Body: it can as your requirements
Fuel Tank 400L
Overall Dimension 9000*2550*3950 mm
Product Advantages
Sinotruk Howo T7H 8×4 Mixer Truck-3
Welcome "Home"
Comfort in the workplace. This is a critical requirement for stress-free operation of the vehicle. The HOWO T7H cabin fulfills this promise with its ergonomic design and equipment and details that are perfectly matched to the tasks involved in transport, offering you a level of comfort reminiscent of home while on the move.
Sinotruk Howo T7H 8×4 Mixer Truck-4
Powertrain: Efficient and Environmentally Friendly
The entire powertrain has undergone rigorous theoretical verification and various complex on-site verifications. Each assembly in the powertrain fully exerts its superior performance, truly realizing the rational matching and optimal utilization of each component.
The combination of precise component matching, advanced processes, and sophisticated manufacturing techniques delivers increased transmission efficiency throughout the powertrain.
Sinotruk Howo T7H 8×4 Mixer Truck-6
Airbag seats
Airbag seats can help drivers quickly find a suitable seating position; The integrated design of the seat belt and the seat is ergonomically compliant, avoiding the driver's feeling of suffocation caused by emergency braking during driving.
Sinotruk Howo T7H 8×4 Mixer Truck-5
multifunction steering wheel
The dashboard features an integrated, wraparound design, with all buttons conveniently located and within easy reach. The multifunction steering wheel allows the driver to easily control various functions; Height and angle can be adjusted in all directions to meet the needs of drivers of different heights.
Sinotruk Howo T7H 8×4 Mixer Truck-7
SINOTRUK's Exclusive High-End Power
Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.
Product Applications
Sinotruk Howo T7H 8×4 Mixer Truck-1
Sinotruk Howo T7H 8x4 Mixer Truck
Sinotruk Howo T7H 8×4 Mixer Truck-2
Sinotruk Howo T7H 8x4 Mixer Truck
Sinotruk Howo T7H 8×4 Mixer Truck
Sinotruk Howo T7H 8x4 Mixer Truck
