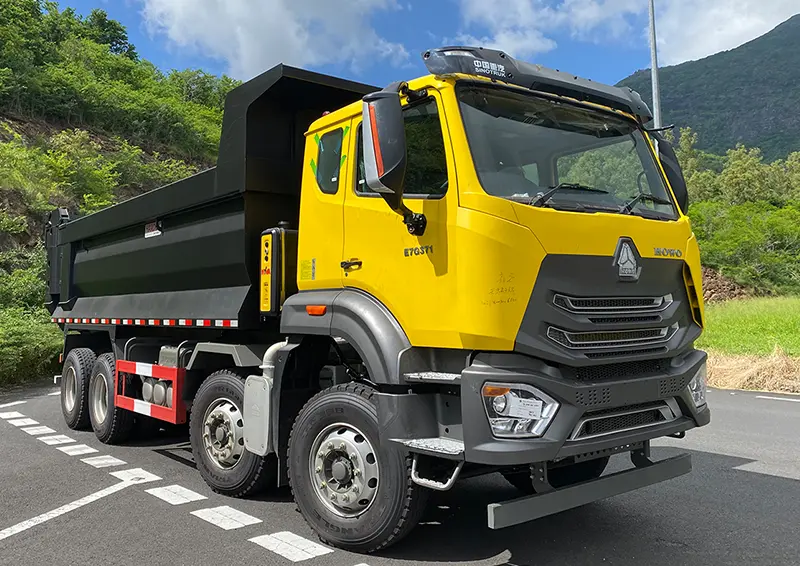

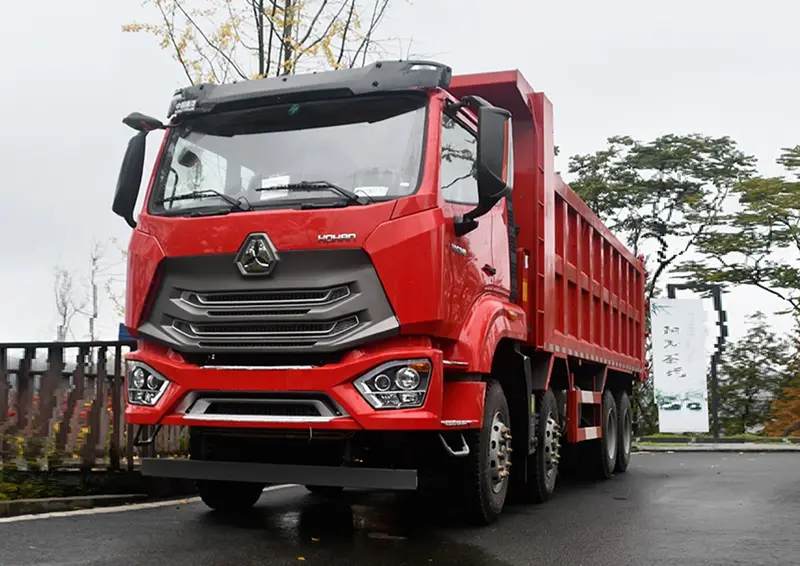

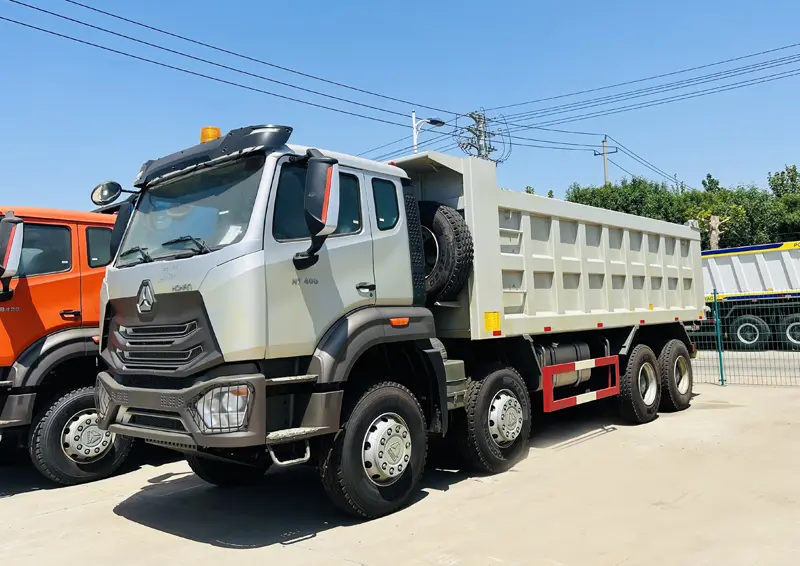

Sinotruk Howo NX 8x4 Dump Truck

Vehicle type

Dump Trucks

Model

ZZ3317V356JB1R

Power

371HP

Engine

WD615.47

Fuel tank

400L

Transmission

Sinotruk HW19710

Drive type

8x4

WhatApp Message

Product Introduction

Overview

The Sinotruk Howo NX 8×4 Dump Truck is a high-performance heavy-duty truck widely used in construction and mining transportation. Equipped with a 380 hp diesel engine, it has excellent hill climbing ability and stability.With a cargo box size of 5400x2300x1500 mm, the Sinotruk Howo NX 8×4 Dump Truck is capable of carrying a large amount of materials to meet different customer needs.

Its advanced hydraulic system and powerful power transmission system make the operation easier and suitable for all kinds of complex working conditions.Sinotruk Howo NX 8×4 Dump Truck is your ideal transportation partner.

Sinotruk Howo NX 8×4 Dump Truck is built to withstand the rigors of heavy-duty use. Its rugged chassis, reinforced axles, and heavy-duty suspension system provide exceptional stability and durability, even on the most challenging terrains.

Sinotruk Howo NX 8x4 Dump Truck

Sinotruk Howo NX 8×4 Dump Truck heavy-duty workhorse is engineered to tackle the toughest jobs, delivering exceptional performance and durability in even the most demanding conditions.At the heart of the Sinotruk Howo NX 8×4 Dump Truck lies a robust 380HP engine, providing the raw power needed to haul massive loads with ease.

Parameters

SINOTRUK HOWO NX 8X4 DUMP TRUCK
Production Year	2025, new truck.
Cabin	H77L cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. High steel bumper, With inter-cooler fence.
Engine	Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371HP 6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission	HW19710, 10F & 2R, with HW50 PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8098, hydraulic steering with power assistance
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle	VGD95, 9500 KGS Steering with double T-cross section beam
Rear Axle	MCP16ZG, 2*16000KG Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles.
Chassis	Front suspension:11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:11leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Fuel Tank	300L
Tire	12.00R20, Radial (steel wire) Tires. 12+1 Pics
Cargo Body	7300X2300X1700mm, 28.54Cubic Meters Thickness: Floor 8 mm, Side 6 mm Front Lifting System
Overall Dimension	1180025503500 mm
Color	Optional

Product Advantages

Sinotruk howo NX

HOWO-NX with high price-quality ratio
The super high price-performance ratio of the HOWO NX series will provide you with comfort, reliability and benefits that far exceed your expectations.

High comfort

The HOWO - NX series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.

Safe cabin

The rigidity and strength of the cab body meet the EU ECE R29 certification standard; the design of the wide-angle rear-view mirror and lower viewing mirror increases the field of vision by 15% and improves safety.

Air cushion

The air cushion helps the driver quickly find a suitable seating position; the ergonomic design of the seat belt and seat helps avoid the driver feeling suffocated due to emergency braking while driving.

Four-point air suspension

The four-point air suspension has good stability, shock-absorbing effect and comfort, and also has the function of tilting the cabin backward during a collision to ensure the safety of passengers.

Product Applications

Sinotruk Howo NX 8x4 Dump Truck
