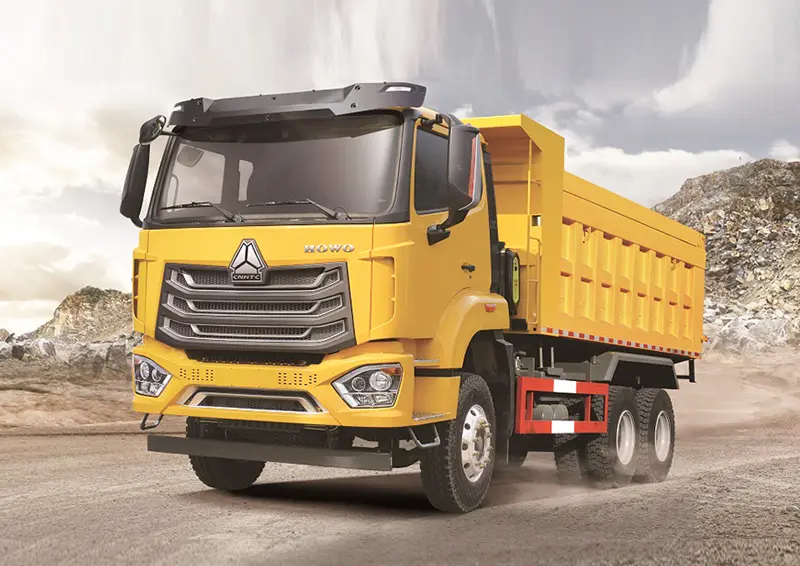

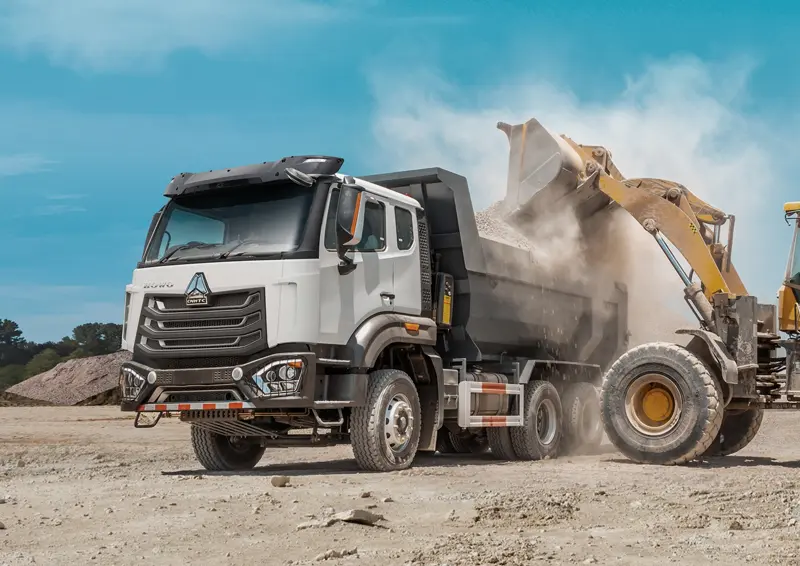

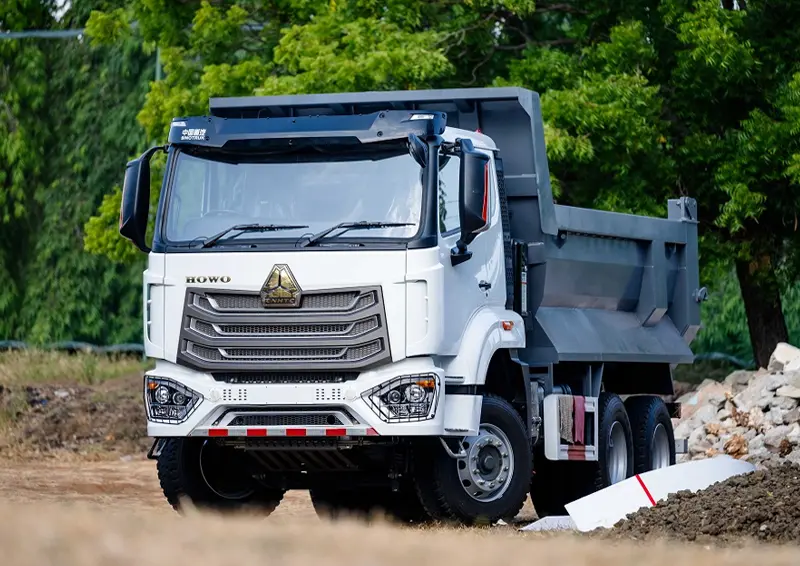

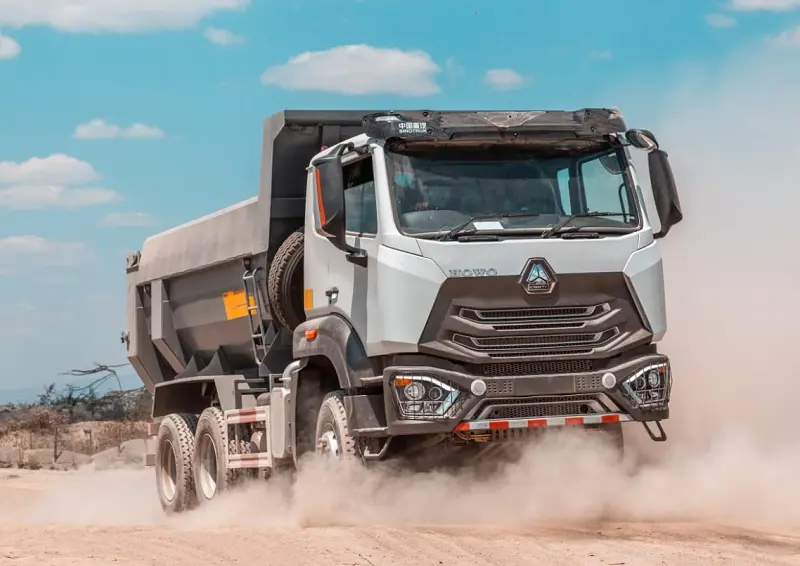

Sinotruk Howo NX 6x4 Dump Truck

Vehicle type

Dump Trucks

Model

ZZ3257V364JB1

Power

371HP

Engine

WP10.380E22

Fuel Tank

300L

Transmission

Sinotruk HW19710

Drive type

6x4

WhatApp Message

Product Introduction

Overview

Sinotruk Howo NX 6×4 Dump Truck are equipped with wear-resistant tires, which are especially suitable for all kinds of complicated road conditions with good grip and anti-skid performance. The design of tires not only focuses on durability, but also takes into account driving comfort and stability.

The cab of Sinotruk Howo NX 6×4 Dump Truck is humanized and spacious, equipped with new modern instrument panel and control system, which gives the driver a wide field of vision and convenient operation. The seats are comfortable and have good shock absorption performance, which can effectively reduce the fatigue of long-distance driving. The cab of Sinotruk Howo NX 6×4 Dump Truck is equipped with new air conditioning system, which improves driving comfort.

Sinotruk Howo NX 6x4 Dump Truck

With the excellent transmission, powerful engine, high load-bearing axle, strong frame, wear-resistant tires and comfortable cab, Sinotruk Howo NX 6×4 Dump Truck is very popular in the market, especially suitable for heavy-duty working conditions such as construction, mining and other transportation needs.

Parameters

SINOTRUK HOWO NX 6X4 DUMP TRUCK
Production Year	2025, new truck.
Cabin	H77L cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. High steel bumper, Inter-cooler Protection.
Engine	Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement:9.726L
Transmission	HW19710, 10F & 2R, with HW50 Direct PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8098, hydraulic steering with power assistance
Front Axle	VGD95, 1*9500 KGS
Front Axle	Steering with double T-cross section beam
Rear Axle	MCP16ZG, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Front suspension:11semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Fuel Tank	300L
Tire	12.00R20, Radial (steel wire) Tires . 10+1 Pics
Cargo body	5400x2300x1450mm. 18 Cubic Meters
Color	Optional
Overall Dimension	860025503450 mm

Product Advantages

Sinotruk howo NX

HOWO-NX with high price-quality ratio
The super high price-performance ratio of the HOWO NX series will provide you with comfort, reliability and benefits that far exceed your expectations.

High comfort

The HOWO - NX series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.

Safe cabin

The rigidity and strength of the cab body meet the EU ECE R29 certification standard; the design of the wide-angle rear-view mirror and lower viewing mirror increases the field of vision by 15% and improves safety.

Air cushion

The air cushion helps the driver quickly find a suitable seating position; the ergonomic design of the seat belt and seat helps avoid the driver feeling suffocated due to emergency braking while driving.

Four-point air suspension

The four-point air suspension has good stability, shock-absorbing effect and comfort, and also has the function of tilting the cabin backward during a collision to ensure the safety of passengers.

Product Applications

Sinotruk Howo NX 6x4 Dump Truck
