Home > Trucks > Tractor Trucks > Sinotruk Howo Max Tractor Head South Africa

Sinotruk Howo Max Tractor Head South Africa

Vehicle type

Tractor Trucks

Model

ZZ4257V344KE1

Engine

MC11.46-50

Horsepower

WEICHAI

Fuel tank

860L + 240L

Emission

Euro 2

Drive type

6x4

WhatApp Message

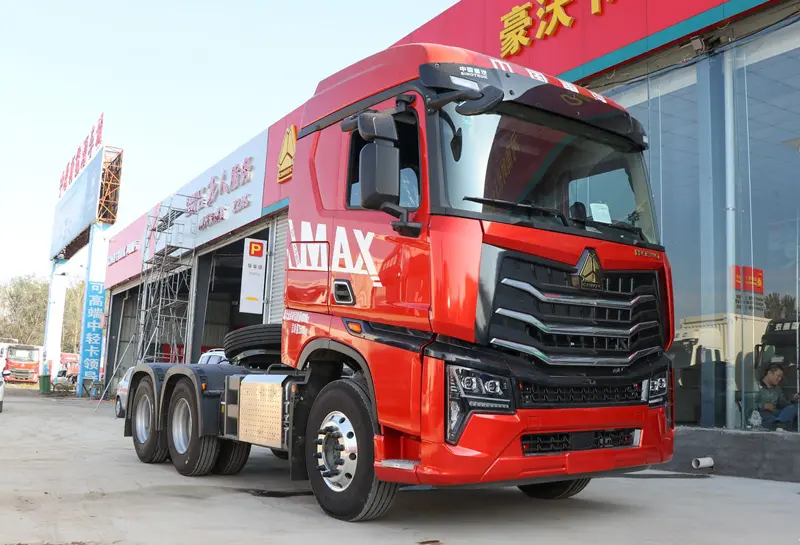

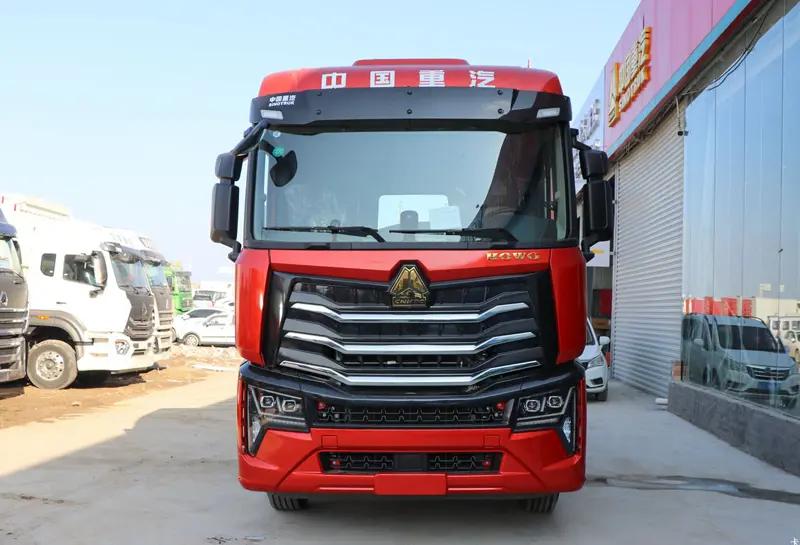

Sinotruk howo max tractor head south africa

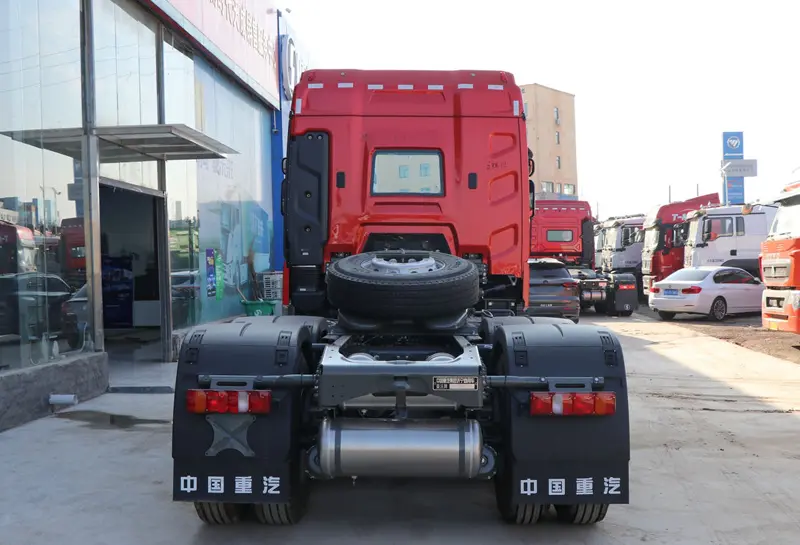

Sinotruk howo max tractor head south africa-1

Sinotruk howo max tractor head south africa-2

Sinotruk howo max tractor head south africa-3

Product Introduction

Overview

Sinotruk Howo Max Tractor Head South Africa is a heavy-duty tractor launched by Sinotruk howo to meet the demand of users for using tractor to transport cargo, hauling long-distance containers, hauling dump trailers, cage trailers, and other specialized trailers, and it is the model with the largest hauling force and hauling capacity of the HOWO tractor.

Sinotruk Howo Max Tractor Head South Africa 460 is not only designed as a new generation of tractor model, but also enhances the use value and market competitiveness of the product in terms of high-performance and fuel-efficient power technology, modernized MAX cab, and luxurious and high-grade practical equipment.

Sinotruk Howo Max Tractor Head South Africa is designed with a towing capacity of 38,600 kg, which is common in long-distance transport vehicles today, ensuring economic indicators of operating costs and road tolls at the most optimal level thanks to the European MAN standard design.

Sinotruk Howo Max Tractor Head South Africa

Sinotruk Howo Max Tractor Head South Africa is equipped with MAN MC11.44-50 engine, capacity of 460 horsepower/ 100 -1900 rpm and maximum torque of 2200N.m/1100-1400 rpm. MAN MY13 axle transmission system, final gear ratio 4.63 combined with 12-speed HW synchronous transmission, 2 reverse gears and 12R22.5 tires for the required pulling capacity for all towed loads.

Parameters

SINOTRUK HOWO MAX TRACTOR HEAD
Production Year	new truck.

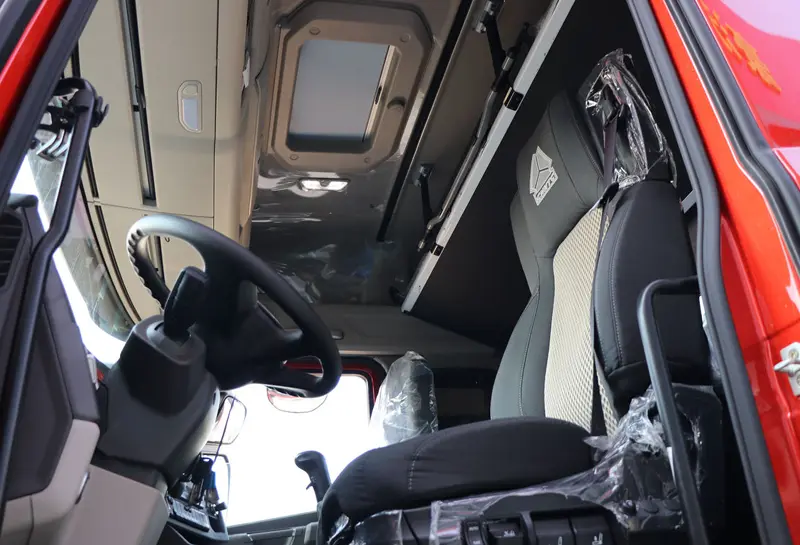

Cabin	HW76 cab.with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. High Position Steel Bumper
Engine	Diesel 4-stroke direct injection diesel engine Engine model: WP12.430E201, 430HP； WD615.47, 371HP； WP10.380E22 ,380HP； WP12S400E201/WP12.400E201 ，400HP； 6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission	HW19710, 10F & 2R. Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle	VGD95, 1*9500 KGS Steering with double T-cross section beam
Rear Axle	MCP16ZG, 2*16000KGS Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles.
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Front suspension: 10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake

Product Advantages

Intelligent Configuration

Cloud management system
supports remote OTA upgrade and fuel consumption analysis, with an abnormal working condition warning accuracy rate of >95%, reducing unplanned downtime.

6×4 all-wheel drive system

The three-axle drive layout with inter-wheel differential lock improves the traction efficiency by 40% on muddy roads, which is especially adapted to unpaved roads such as mining areas and construction sites.

Strengthened Chassis Architecture

Adopts a double-layer high-strength steel frame (yield strength ≥ 700MPa) with 8+10 leaf spring suspension, allowing a maximum GCW (gross combination weight) of 49 tons. The dynamic deformation rate under overload conditions is 15% lower than that of similar models (based on road response test data).

Intelligent Transmission System

Matches 16-speed AMT transmission with Hill Assist and Predictive Shift function, with shift response time <0.8 seconds, improving adaptability to complex road conditions.

High-torque engine

Equipped with MC series high-pressure common rail engine, the maximum torque reaches 2500N-m (@1000-1400rpm), the low-speed and high-torque feature significantly reduces the fuel consumption in mountainous areas (the measured comprehensive fuel consumption is ≤32L/100km).

Product Applications

Sinotruk Howo Max Tractor Head South Africa

Sinotruk Howo Max Tractor Head South Africa
