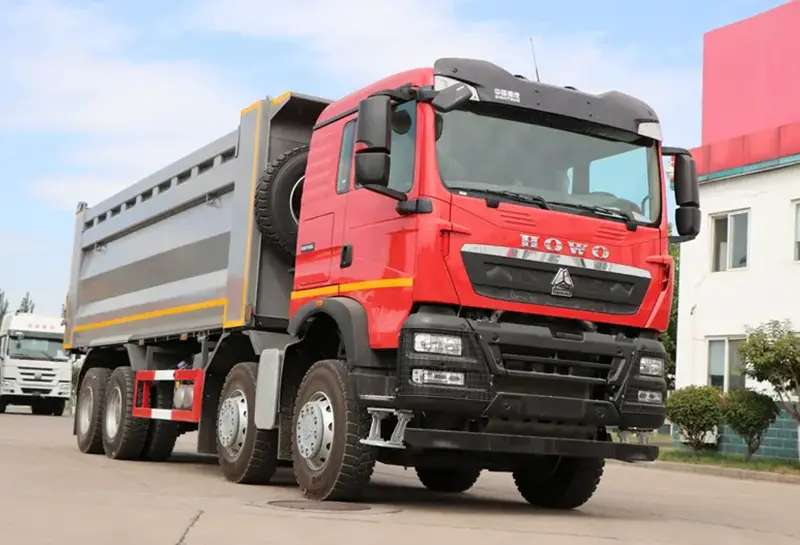

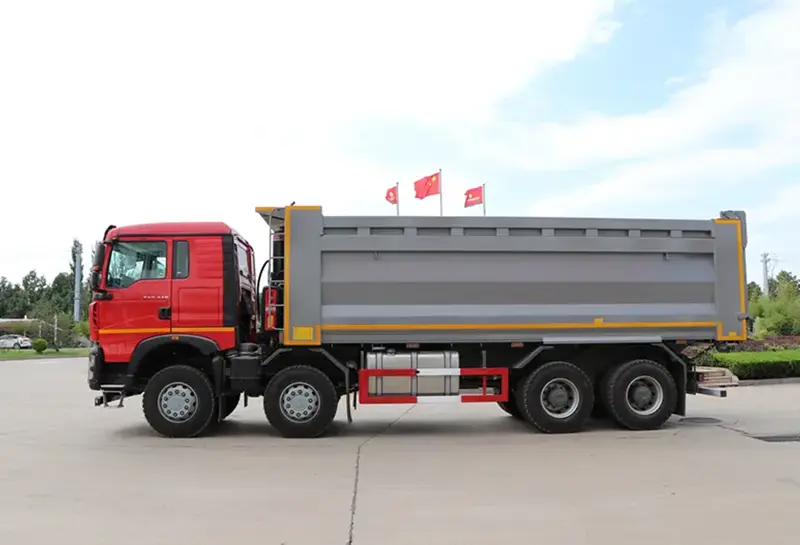

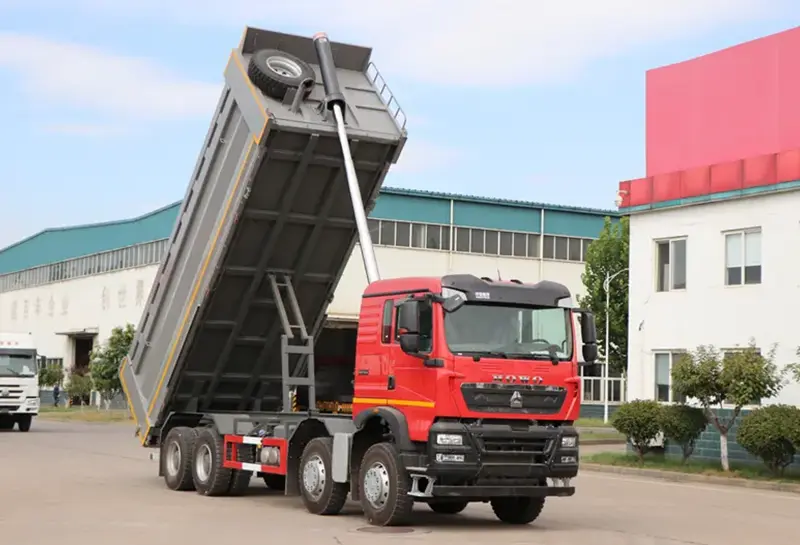

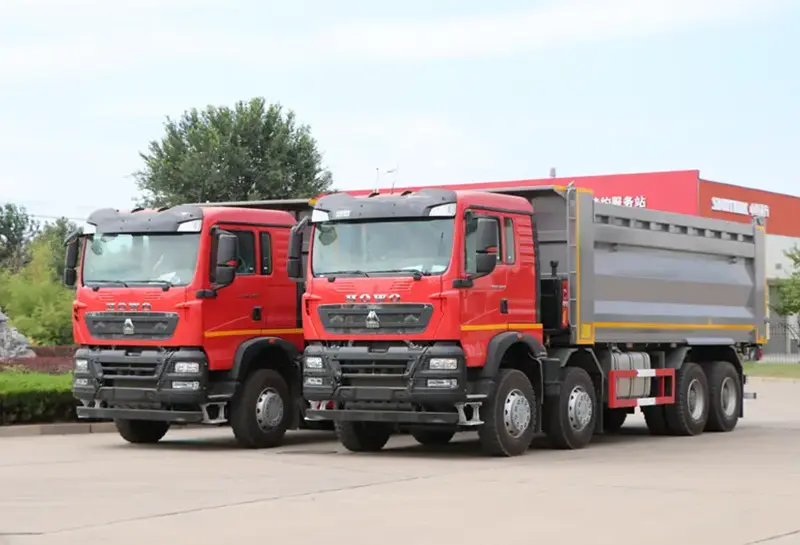

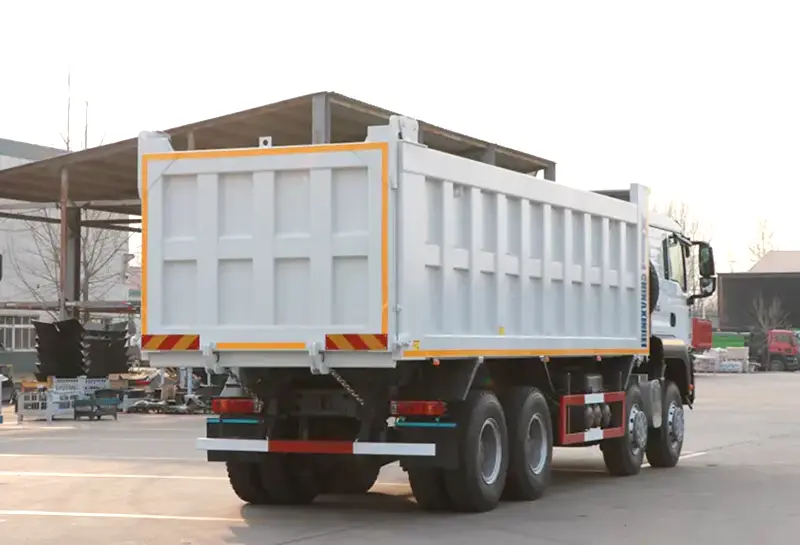

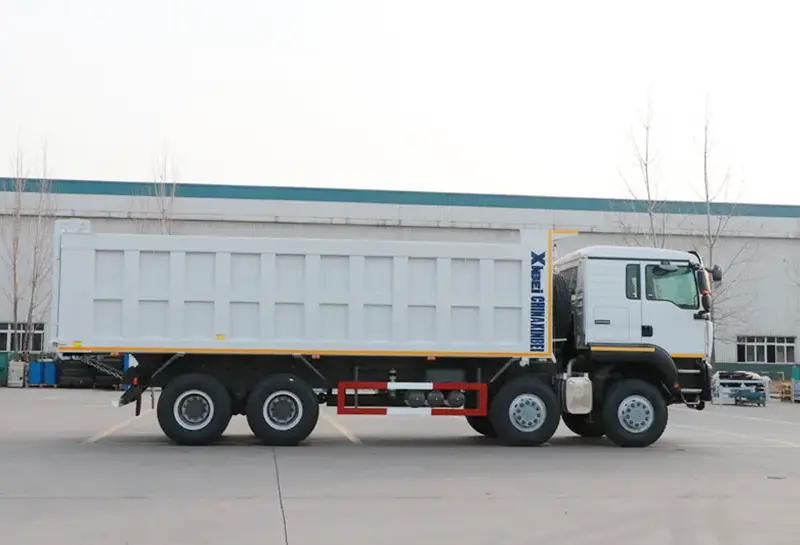

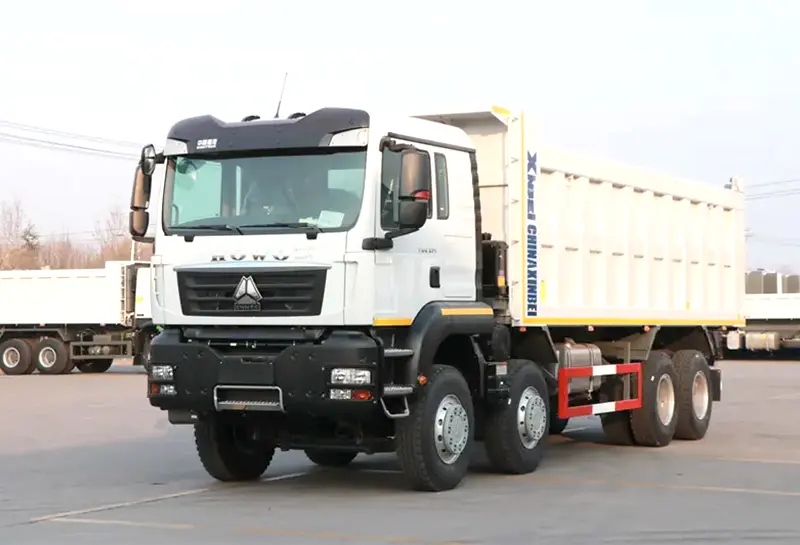

Sinotruk howo 8x4 dump truck

Parameters

Chassis Model	ZZ3317V3567B1
Driving Type	LHD (RHD is optional)
Cabin	HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.
Engine	Make: Weichai Diesel 4-stroke direct injection diesel engine Engine model: WP10.380E22, Euro 2, 380HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L
Transmission	HW19710, 10F & 2R, with PTO Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle	VGD95,2×9000 KGS Steering with doubleT-cross section beam
Rear Axle	MCX16ZG, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:5.73
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	12.00R20, radial tyres with one spare tyre
Fuel Tank	300L
Cargo Body	730023001700 mm, 28.5CBM, Floor 10mm Side 8mm
Overall Dimension	1075025503450mm

Product Advantages

Smarter and more convenient

The 7-inch central control screen is adopted for convenient human-computer interaction. The multi-functional leather steering wheel are provided with 16 buttons, which are easy to operate and can be upgraded with functions such as Bluetooth phone, MP5 player, instrument menu and AEB.

More comfortable

Optimized air distribution at the driver and passenger side vents can provide a more comfortable body feeling. The overall air volume has increased by 9.5% compared to the previous generation. Under the sleeper, an integrated super-large storage space is added to make the space utilization more reasonable.

More safely,more quieter

The cab is designed with four-point suspension, which can filter out bumps and vibrations. Moreover, the cab shock absorbers and chassis shock absorbers have undergone comprehensive recalibration and tuning, so that the noise level of the complete vehicle is reduced by 3dB, creating a quieter driving environment.

Golden Power

The Howo TX truck is upgraded to a new generation of golden power system, providing a richer range of power configurations to meet different needs. It can output strong power of up to 540 HP and 2500 Nm, and fully meet the emission requirements of Euro ll to Euro VI.

Advanced Driver Assistance System (ADAS)

We embrace a people-first approach to safety, putting the well-being of all road users at the forefront. Utilizing digital technology for intelligent monitoring and control, we wholeheartedly safeguard your safety during your journey.

Global Supply Chain

The Howo truck is equipped with assemblies and parts from world-class supply chain,comprehensively improving vehicle reliability and stability.WABCO valves, BOSCH steering gear and VOSS pipe joints are used, all of which are reliable and stable.Global top Sax damping and tuning systems are selected.

Product Applications

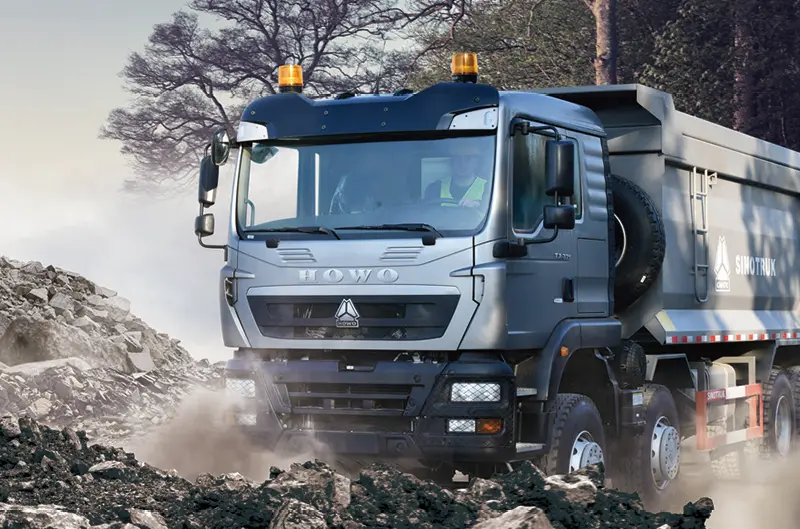

Sinotruk howo 8x4 dump truck

Sinotruk howo 8x4 dump truck

Sinotruk howo 8x4 dump truck

Sinotruk howo 8x4 dump truck

Sinotruk howo 8x4 dump truck
