Home > Trucks > Dump Trucks > Sinotruk Howo 7 8x4 Dump Truck

Sinotruk Howo 7 8x4 Dump Truck

Vehicle type

Dump Trucks

Model

ZZ3317V3567B1

Dimension(mm):

10800*2550*3500

Engine

WD615.47

Emission level

Euro II

Transmission

Sinotruk HW19710

Drive type

8x4

WhatApp Message

Product Introduction

Overview

The Sinotruk Howo 7 8×4 Dump Truck is a high-performance heavy-duty truck widely used in the construction and mining sectors. Equipped with a powerful engine with up to 400 hp, the Sinotruk Howo 7 8×4 Dump Truck offers excellent fuel efficiency and a load capacity of up to 50 tons.

Designed to ensure reliability and durability in a wide range of harsh conditions, the Sinotruk Howo 7 8×4 Dump Truck is suitable for a wide range of transportation needs. With its excellent performance and stability, Sinotruk Howo 7 8×4 Dump Truck is a popular choice in the market.

Sinotruk Howo 7 8x4 Dump Truck

As the flagship model of Sinotruk, Sinotruk Howo 7 8×4 Dump Truck, with the golden power combination of 420 HP Weichai engine and HW19710CL transmission, undertakes daily average 80 carloads of ore transportation in open-pit coal mines. Sinotruk Howo 7 8×4 Dump Truck 16-ton front axle and double rear axle design, together with the 9.6-meter cargo box, can carry up to 31 tons in a single trip, which is 15% more efficient than similar models.

Parameters

SINOTRUK HOWO 7 8X4 DUMP TRUCK
Production Year	2025, new truck.
Cabin	HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. High steel bumper, With inter-cooler fence.
Engine	Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371HP 6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission	HW19710, 10F & 2R, with HW50 PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8098, hydraulic steering with power assistance
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle	VGD95, 9500 KGS Steering with double T-cross section beam
Rear Axle	MCP16ZG, 2*16000KG Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles.
Chassis	Front suspension:11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:11leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Fuel Tank	300L
Tire	12.00R20, Radial (steel wire) Tires. 12+1 Pics
Cargo Body	7300X2300X1700mm, 28.54Cubic Meters Thickness: Floor 8 mm, Side 6 mm Front Lifting System
Overall Dimension	1180025503500 mm
Color	Optional

Product Advantages

Sinotruk howo 7

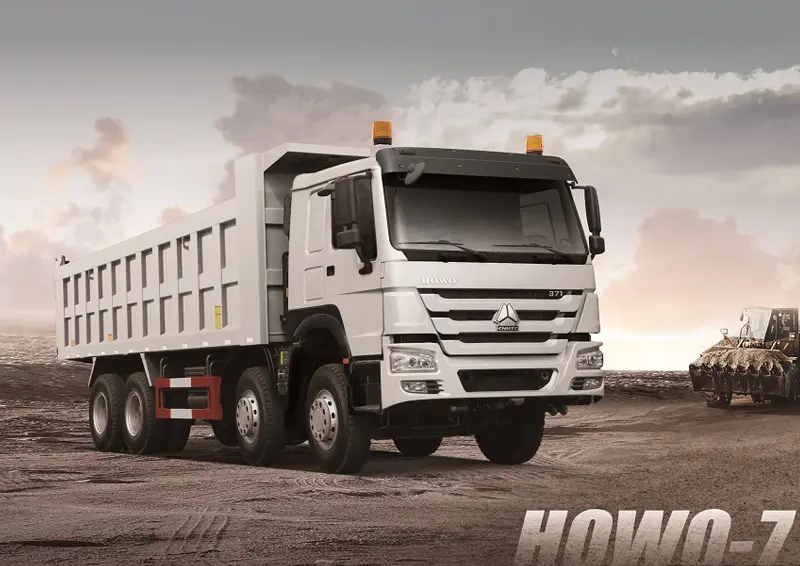

HOWO-7: Fully Equipped to Face the Toughest Working Conditions
The HOWO-7 truck excels in challenging environments like construction sites and mines, thanks to its strength, ruggedness, and durability.
In harsh working environments, HOWO-7 is fully equipped to face the toughest working conditions.

High comfort

The HOWO 7 series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.

Safe cabin

The cabin's body is constructed with a one-piece steel frame, providing robust strength, rigidity, and superior resistance to impacts and external forces. Its safety performance has been proven through stringent crash testing.

Air cushion

The air cushion helps the driver quickly find a suitable seating position; the ergonomic design of the seat belt and seat helps avoid the driver feeling suffocated due to emergency braking while driving.

Four-point air suspension

The four-point air suspension provides excellent stability, shock absorption, and comfort, and features a cabin rearward displacement function during collisions, ensuring passenger safety.

Product Applications

Sinotruk Howo 7 8x4 Dump Truck
