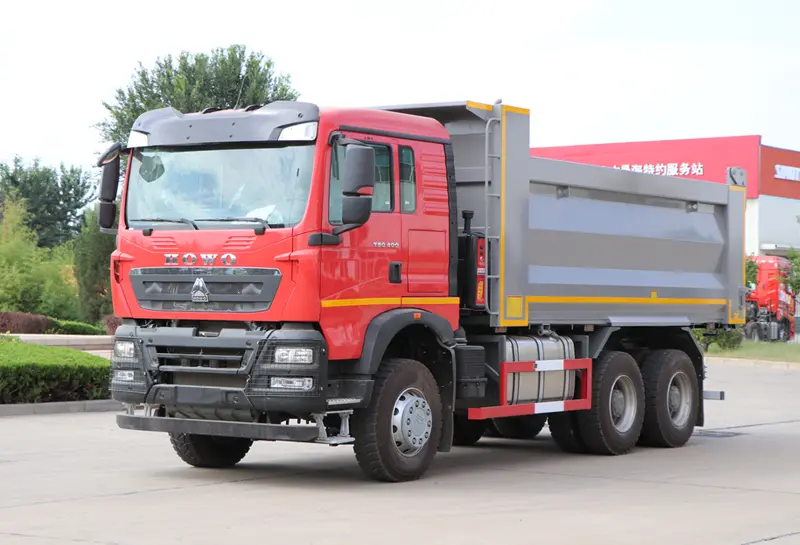

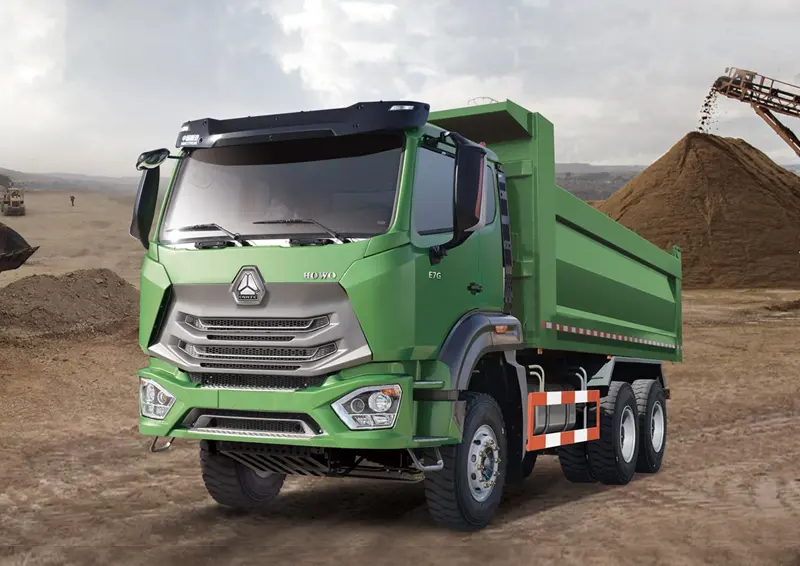

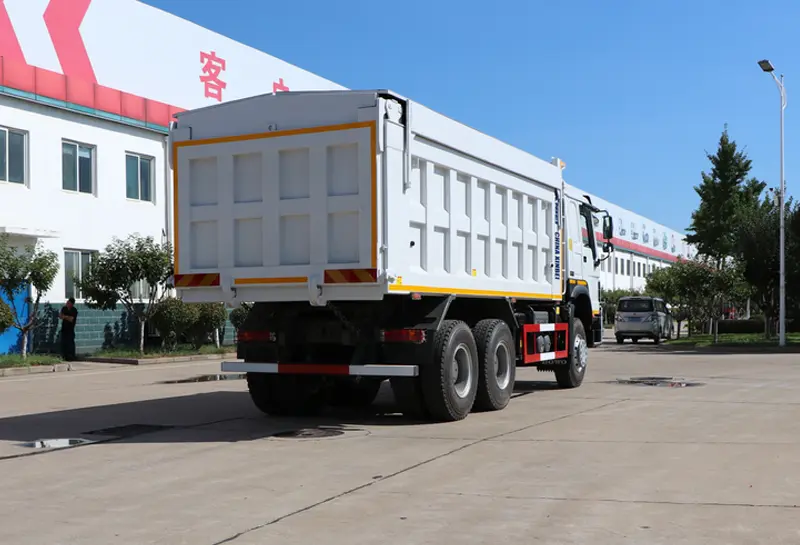

Sinotruk howo 6x4 dump truck

Parameters

Sinotruk howo 6×4 dump truck
SPECIFICATION
Engine		Make: SINOTRUK (howo truck parts) Disel:4-Stroke direct injection diesel engine Engine model: Euro III,WD615.96C 6-cylinder in-line with water cooling, turbo-charging and intercooling Maximum output: 380hp at 2000 rpm according to DIN Maximum torque: 1590Nm at 1200-1500 rpm Displacement:9.726L Bore:126mm Stroke:130mm Compression ratio:17.5:1 Specific fuel consumption:195g/kWh Engine oil filling quantity:23L Cooling system filling quantity(long-term filling):40L Thermostat with 71℃ opening begin Twin cylinder air compressor
Clutch		Single-plate dry coil-spring clutch, diameter 430mm,hydraulically operating with air assistance.
Transmission		HW19710, 10 forward, 2 reverse, manual. Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.8, 1.34, 1. R13.91, R3.18.
Propeller Shaft		Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle		Steering with double T-cross section beam
Rear Axles		Pressed axle housing, central single reduction with planetary wheel reduction and with differential lock
Chassis		Frame: U-profile parallel ladder frame with section of 300×80×8mm and reinforced subframe, all cold riveted cross members Aluminum fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis
Steering		ZF power steering, model ZF8098,hydraulic steering with power assistance. Ratio: 22.2-26.2 (howo truck parts catalog pdf)
Braking System		Service brake: dual circuit compressed air brake Parking brake(emergency brake):spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake ABS
Tyres		11.00/22.5,11pics, radial tyres.
Cab		HW76 Cab, one berth, right hand drive, air condition, all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts, adjustable steering wheel, air horn, with 4-point support fully floating suspension + shock absorbers
Electrical System		Operating voltage:24V,negative grounded Starter:24V.7.5Kw Alternator:3-phase,28V,1500W Batteries:2*12V,165Ah/180Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light, backing alarm
Instrument		Active check central controller with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging.
Dimensions in mm		Wheel base 3825+1350 Front wheel track 2022 Rear wheel track 1830 Front overhang 1540 Rear overhang 1870 Approach angle(°) 20 Departure angel(°) 24 Overall length 8665 Overall width 2496 Overall height 3947
Cargo box		Dimension 5800 x 2300 x 1500mm Lifting type central lifting Ram Φ220*980
Weight in kg		Dead weight 12300 Front axle loading capacity 7000 Rear axle loading capacity 18000 （double axle）
Performance		Maximum driving speed(km/h) 80 Fuel consumption(L/100km) 30-33

Product Advantages

Smarter and more convenient

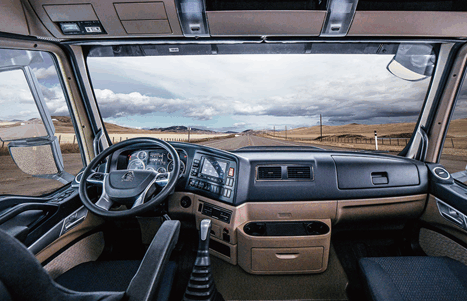

The 7-inch central control screen is adopted for convenient human-computer interaction. The multi-functional leather steering wheel are provided with 16 buttons, which are easy to operate and can be upgraded with functions such as Bluetooth phone, MP5 player, instrument menu and AEB.

More comfortable

Optimized air distribution at the driver and passenger side vents can provide a more comfortable body feeling. The overall air volume has increased by 9.5% compared to the previous generation. Under the sleeper, an integrated super-large storage space is added to make the space utilization more reasonable.

More safely,more quieter

The cab is designed with four-point suspension, which can filter out bumps and vibrations. Moreover, the cab shock absorbers and chassis shock absorbers have undergone comprehensive recalibration and tuning, so that the noise level of the complete vehicle is reduced by 3dB, creating a quieter driving environment.

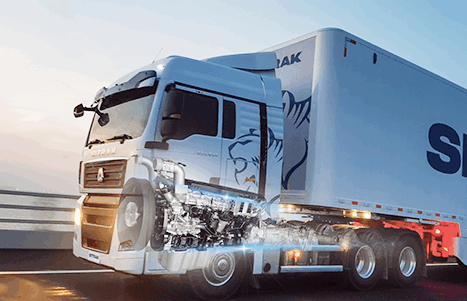

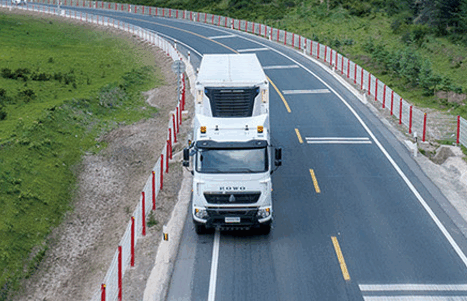

Golden Power

The Howo TX truck is upgraded to a new generation of golden power system, providing a richer range of power configurations to meet different needs. It can output strong power of up to 540 HP and 2500 Nm, and fully meet the emission requirements of Euro ll to Euro VI.

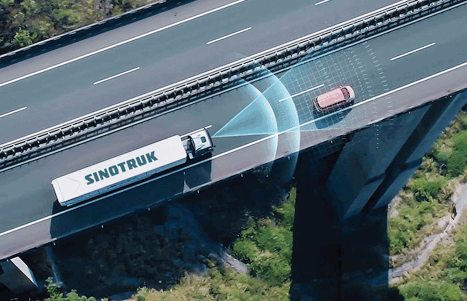

Advanced Driver Assistance System (ADAS)

We embrace a people-first approach to safety, putting the well-being of all road users at the forefront. Utilizing digital technology for intelligent monitoring and control, we wholeheartedly safeguard your safety during your journey.

Global Supply Chain

The Howo truck is equipped with assemblies and parts from world-class supply chain,comprehensively improving vehicle reliability and stability.WABCO valves, BOSCH steering gear and VOSS pipe joints are used, all of which are reliable and stable.Global top Sax damping and tuning systems are selected.

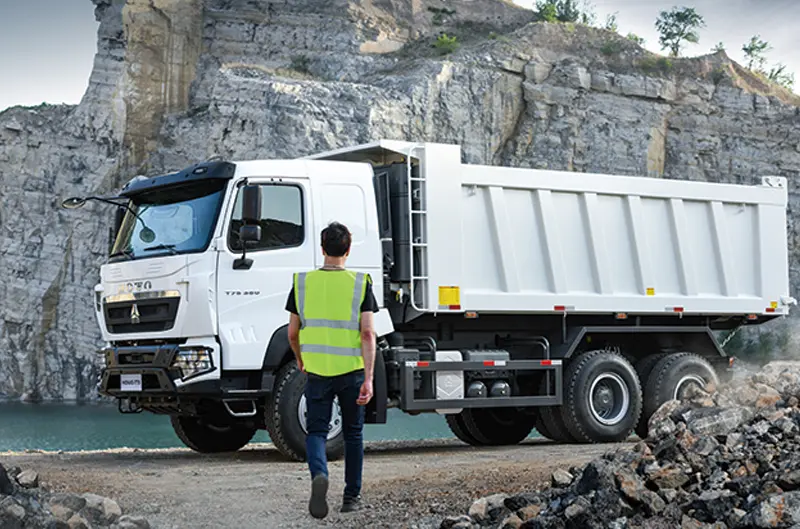

Product Applications

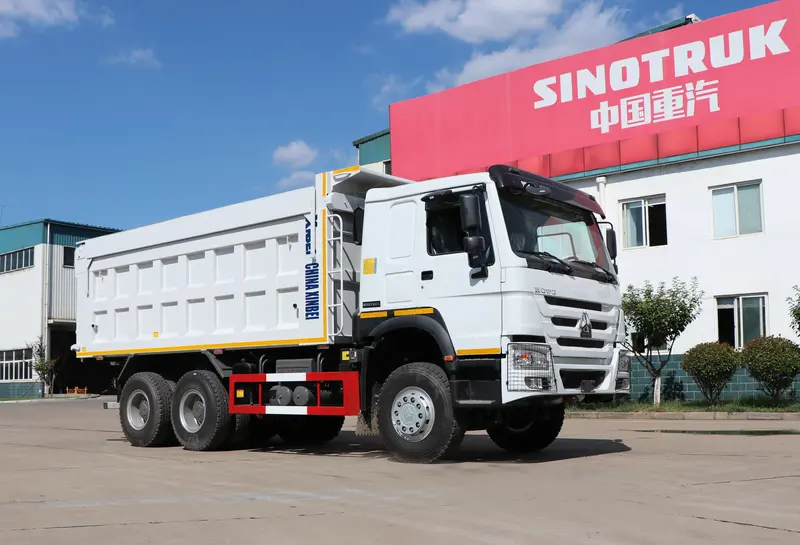

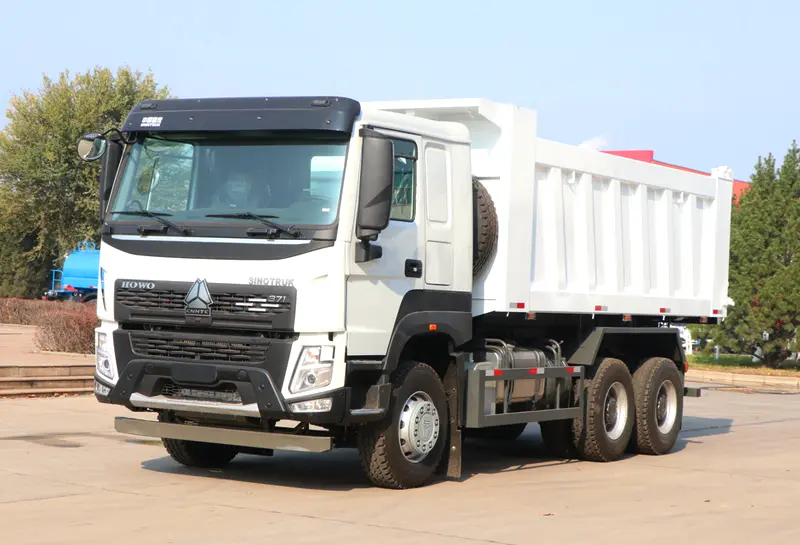

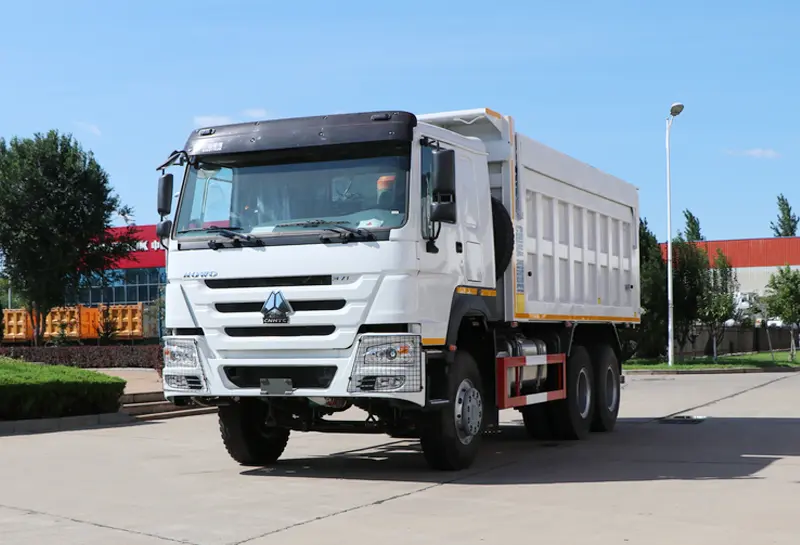

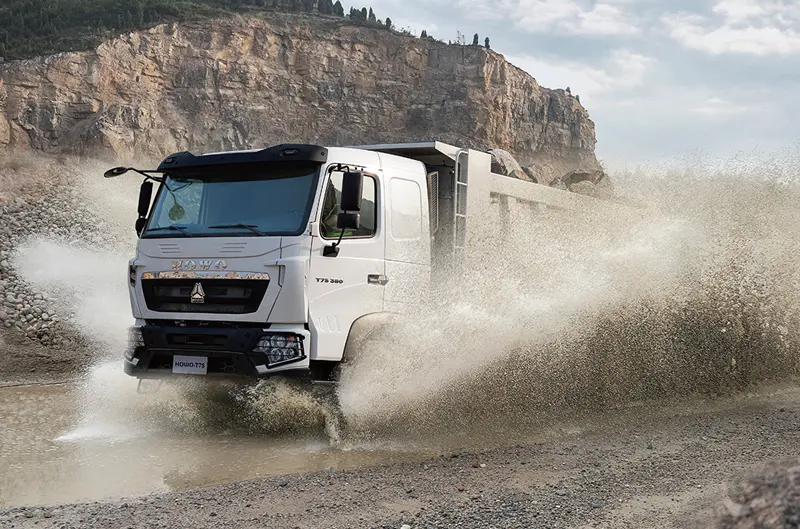

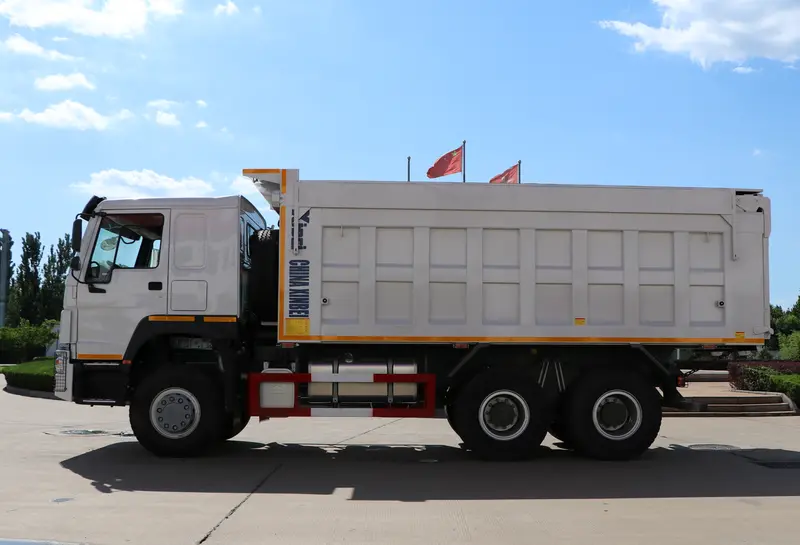

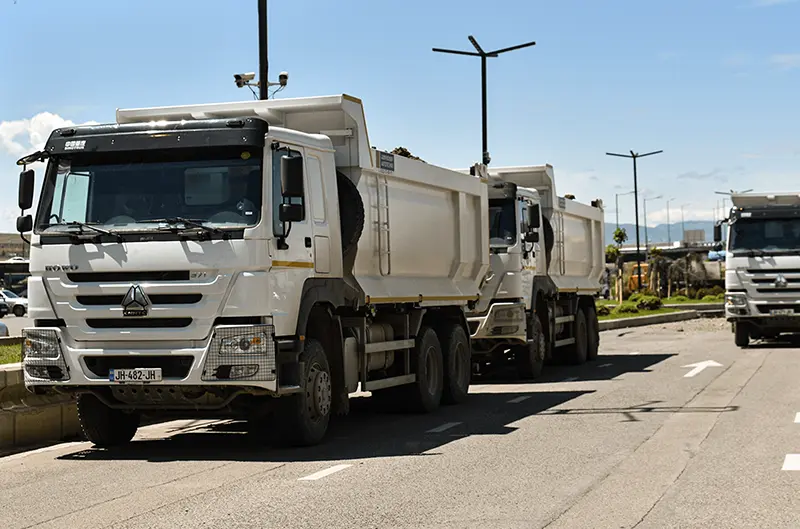

Sinotruk howo 6x4 dump truck

Sinotruk howo 6x4 dump truck

Sinotruk howo 6x4 dump truck

Sinotruk howo 6x4 dump truck
