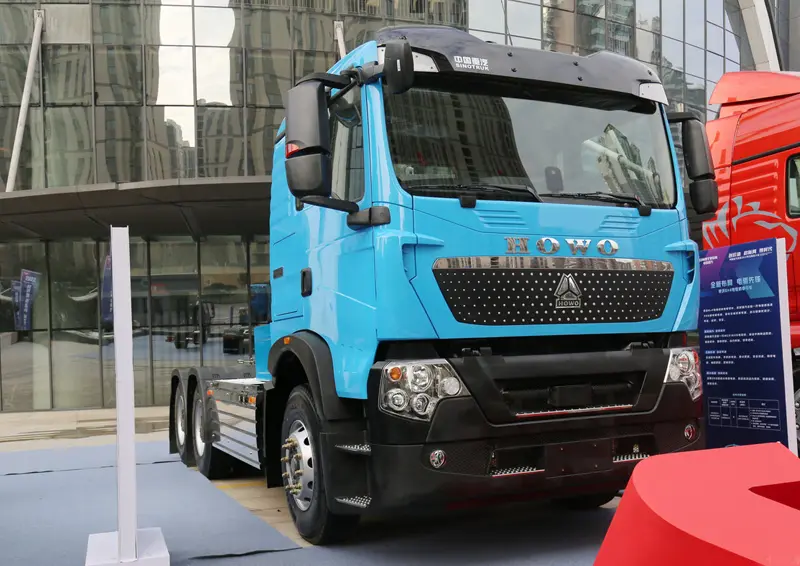

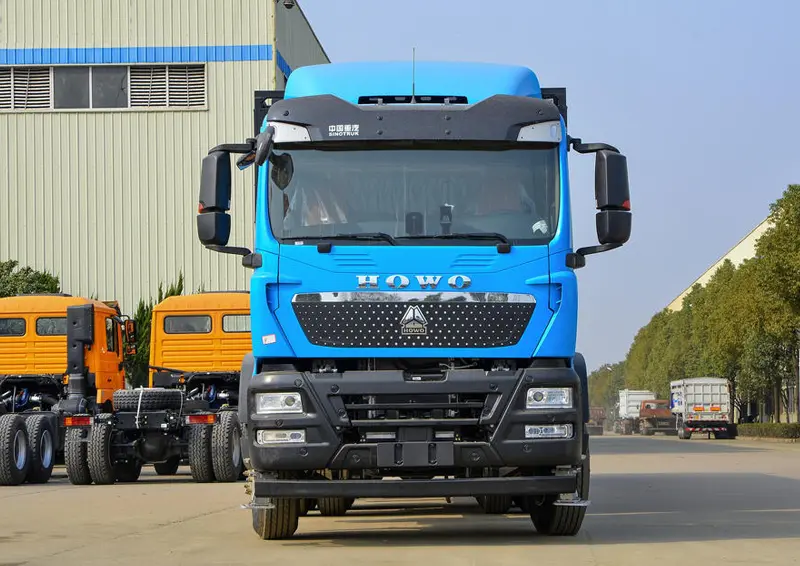

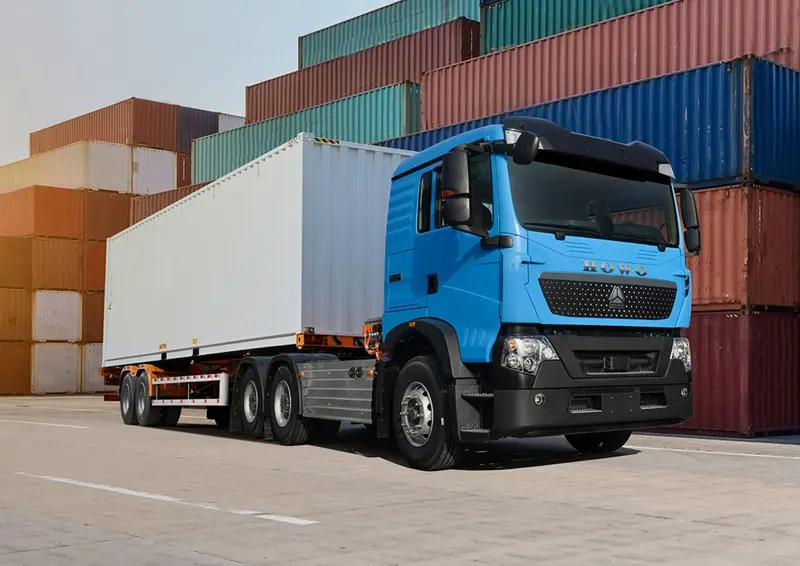

Sinotruck Howo TX Pure Electric Tractors Truck (Charging Vehicle)

Sinotruck Howo TX Pure Electric Tractors Truck (Charging Vehicle)

Vehicle type
Tractor Trucks
Model
ZZ4257Y344GZ1BEV35
Rear motor model
TZ488XSPE352WH
Peak power
130kW
Fuel category
Pure electric
Battery Type
lithium iron phosphate battery
Battery capacity
350kWh
Product Introduction
Overview

As the core product of China National Heavy Duty Truck (CNHTC)’s new energy strategy, Sinotruck Howo TX Pure Electric Tractors Truck (Charging Vehicle) adopts lithium iron phosphate battery system, standard 350kWh super power, supporting dual-gun parallel charging technology (1C fast charging), which can replenish 80% of power in 30 minutes, and the range exceeds 300km. The range exceeds 300 kilometers. The peak power of its permanent magnet synchronous motor reaches 360kW, which can meet the needs of high-frequency transportation scenarios such as container reversing in ports and urban distribution.

Currently, the Sinotruck Howo TX Pure Electric Tractors Truck (Charging Vehicle) has completed 20,000 hours of reliability testing in Ningbo Port, and the annual carbon reduction of a single vehicle is equivalent to planting 400 fir trees. With the promotion of the national “dual-carbon” policy, Sinotruck Howo TX Pure Electric Tractors Truck (Charging Vehicle) is becoming the preferred solution for the electrification transformation of mainline logistics.

Sinotruck Howo TX Pure Electric Tractors Truck (Charging Vehicle)

Innovative Technology Matrix

Intelligent energy management: Sinotruck Howo TX Pure Electric Tractors Truck (Charging Vehicle) is equipped with a battery pre-heating system (-30℃ normal start) and braking energy recovery device, reducing energy consumption by 12%.

Vehicle-Electricity Separation Mode: Supports the optional battery swap version (5-minute battery change), and is compatible with standard power stations such as the State Power Investment Corporation (SIPC).

Digital twin platform: real-time monitoring of 18 core parameters such as motor temperature and SOC through the vehicle T-Box.

Sinotruck Howo TX Pure Electric Tractors Truck (Charging Vehicle)-1
Parameters
Category Specifications
Truck Name Sinotruck Howo TX Pure Electric Tractors Truck (Charging Vehicle)
Basic Info Model: ZZ4257V384GZ1SBEV/ZZ4257Y384GZ1BEV40B, Drive: 6×4, Wheelbase: 3800+1400mm
Powertrain Peak Power: 520kW (707HP), Max Torque: 56000N·m, Motor Type: Permanent Magnet Synchronous Motor
Battery LFP Battery (CATL), Capacity: 350-422kWh, CLTC Range: 220-330km
Charging Dual-gun Fast Charge (600A current), 30%-80% charge <25min, Optional Battery Swap (5min swap)
Dimensions/Weight Length: 7.45-7.485m, Curb Weight: 10.545-11.8t, Gross Combination Weight: 37.07-38.325t
Chassis Front Axle: 7t (VGD95), Rear Axle: 18t (MCP16ZG), Standard ABS/ASR & Differential Lock
Cabin 10.1″ Floating Screen + Digital Cluster, Standard 360° Camera, Air Suspension Seat
Tires 12R22.5 18PR, 10 Tires
Performance Top Speed: 89km/h, Weight Class: Heavy Truck (25t class)
Product Advantages
sinotruck howo TX Pure Electric Tractors truck-6
Range Performance
● CLTC working condition range 245-430km (different battery capacity version).
● Supports dual mode of power exchange/charging, 600Ah dual gun fast charging.
● 1.3C high charging rate technology.
sinotruck howo TX Pure Electric Tractors truck-5
High Comfort
● TX-F cab, 3-passenger permitted .
● Wrap-around instrument panel + 12-inch center screen .
● Airbag shock-absorbing seats + automatic air conditioning.
sinotruck howo TX Pure Electric Tractors truck-11
Intelligent Configuration
● Standard: ABS + ASR + Body Stabilization System
● Optional: Forward Collision Warning, Emergency Brake Assist
● Telematics + Tire Pressure Monitor
sinotruck howo TX Pure Electric Tractors truck-12
Chassis parameters
● 6×4 drive form, wheelbase 3800+1400mm .
● Front axle load 7 tons, rear axle load 18 tons.
● Aluminum alloy wheels + less leaf spring lightweight design.
sinotruck howo TX Pure Electric Tractors truck-13
Powertrain
● Adopts permanent magnet synchronous motor with peak power of 480kW (dual motor 240kW×2) and maximum torque of 900N-m.
● Three-motor version with peak power of 825kW and single motor torque of 500N-m.
● Nintendo Lithium Iron Phosphate Battery, with capacity covering 282-600kWh .
