Howo Sinotruk 371 TX 6 Wheeler Dump Truck

Vehicle type

Dump Trucks

Model

ZZ3257N4647A

Dimension(mm)

8170x2550x3550

Engine

WP9H350E62

Max Horsepower

371

Transmission

HW19712CL

Drive type

6x4

WhatApp Message

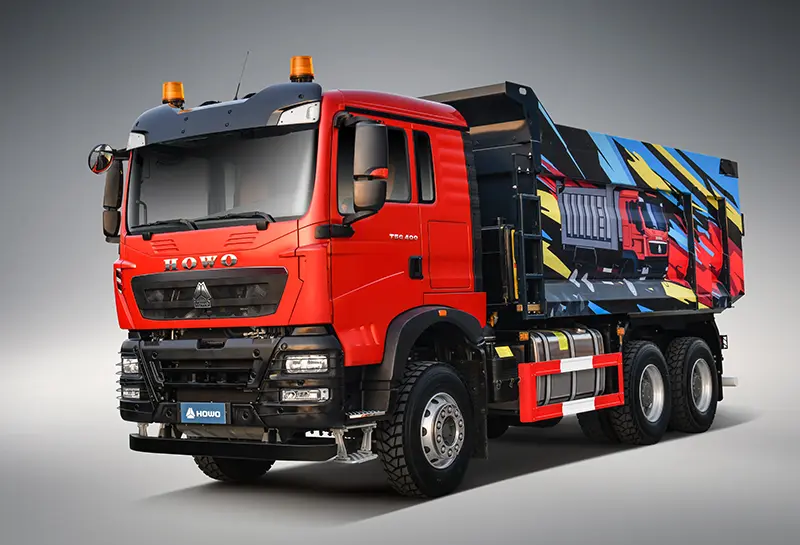

howo sinotruk 371 TX 6 wheeler dump truck-5

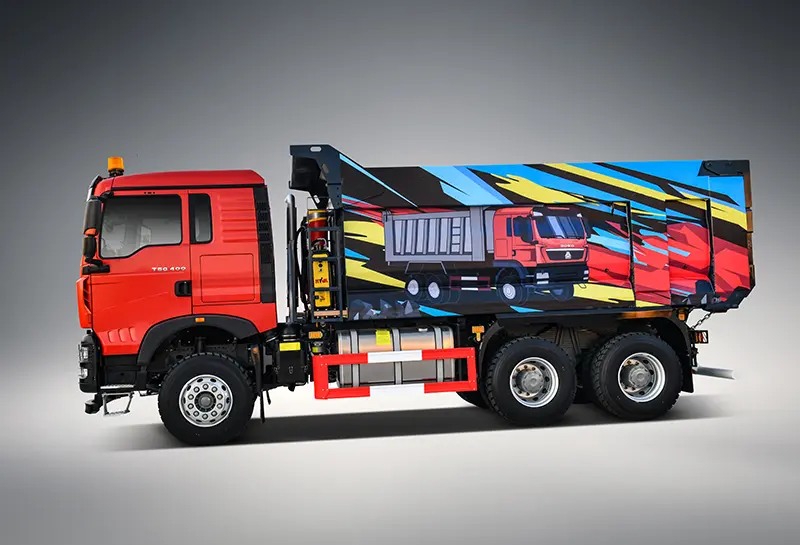

howo sinotruk 371 TX 6 wheeler dump truck-1

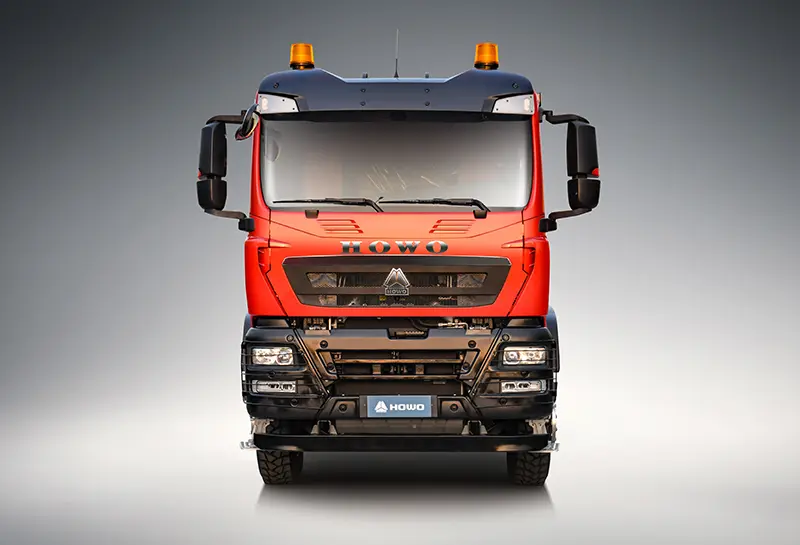

howo sinotruk 371 TX 6 wheeler dump truck-2

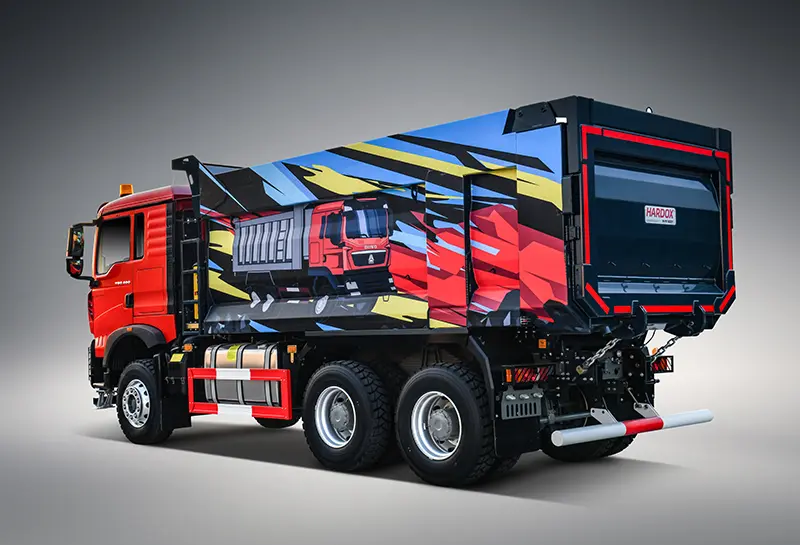

howo sinotruk 371 TX 6 wheeler dump truck-3

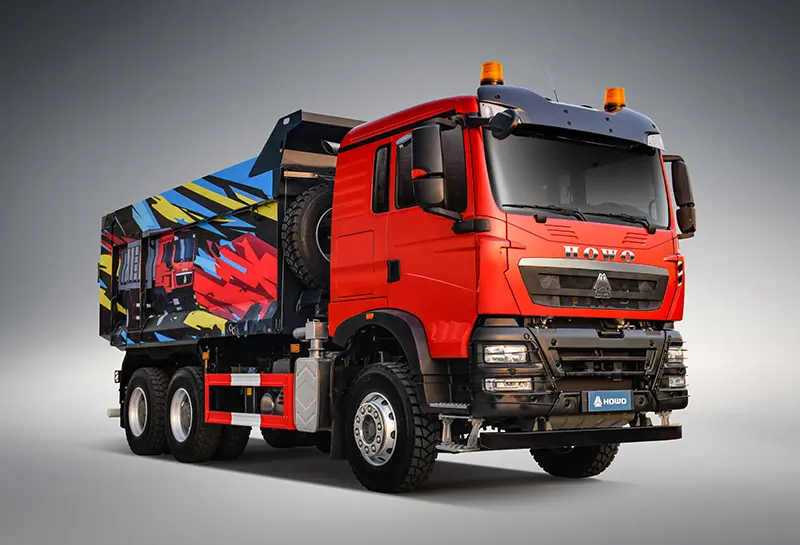

howo sinotruk 371 TX 6 wheeler dump truck-4

Parameters

Truck Name	Howo Sinotruk 371 TX 6 Wheeler Dump Truck
Model	ZZ3257N4647A
Driving Form	6X4
Cabin	HW TX cabin ,1 sleeper with AC
Engine	Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371 HP
Transmission	HW19710, 10F & 2R, with PTO
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle	HF9,1×9000 KGS Steering with doubleT-cross section beam
Rear Axle	HC16, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction
Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	12.00R20, radial tyres with one spare tyre
Fuel Tank	300L
Cargo Body	5600x2300x1500mm,Floor 8mm, Side 6 mm 20CBM ,Loading 40 tons
Overall Dimension	850025503450mm

Product Advantages

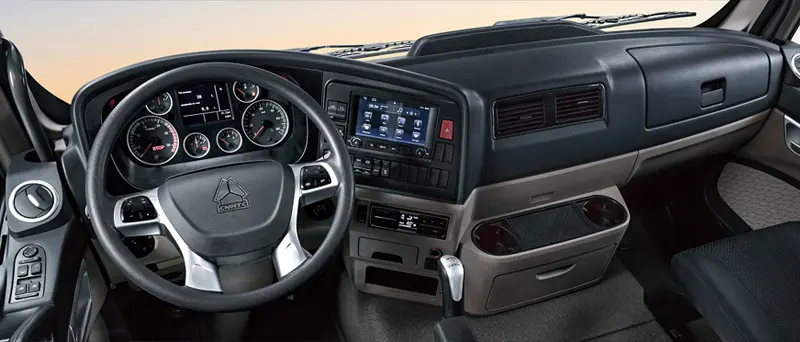

Excellent Ergonomic Design

The Howo Sinotruk 371 TX 6 Wheeler Dump Truck ,All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.

High Comfort

Featuring an adjustable air suspension seat, the Howo Sinotruk 371 TX 6 Wheeler Dump Truck offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort. Crafted from high-quality, breathable materials, the seat effectively reduces fatigue during long drives. The thoughtfully designed rest area prioritizes driver well-being, featuring a comfortable sleeper berth to ensure a restorative rest after completing a journey, allowing drivers to recharge and prepare for the road ahead.

SINOTRUK's Exclusive High-End Power

Howo Sinotruk 371 TX 6 Wheeler Dump Truck,Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.

Transmission - Always in the Right Gear

Howo Sinotruk 371 TX 6 Wheeler Dump Truck,The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

Axles - Carry More, Cost Less

Howo Sinotruk 371 TX 6 Wheeler Dump Truck-The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life to accommodate various road conditions.

Product Applications

Howo Sinotruk 371 TX 6 Wheeler Dump Truck
