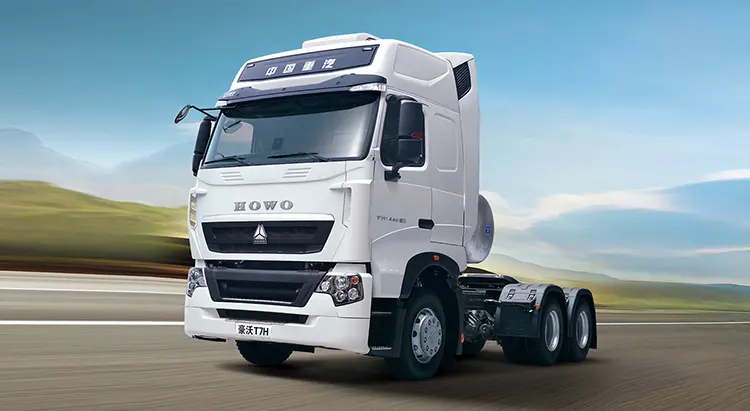

Sinotruk Howo T7H Tractor Head Price

Vehicle type

Tractor Trucks

Model

ZZ4257V324HB1

Dimension(mm)

6800x2496x3668

Engine

WEICHI

Curb weight(kg)

9210

Max speed(km/h)

90, 102

Drive type

6x4

WhatApp Message

Product Introduction

Overview

Sinotruk howo t7h tractor head price feature a partial triple frame (8+8+8/300) and reinforced front and rear multi-leaf springs (9/12), providing durability and stability even under heavy loads. With a BOCSH steering wheel and standard exhaust system, these tractors offer precise control and efficient exhaust management. The ABS (4S/4M) braking system and high triple bumper enhance safety during operations.

Sinotruk howo t7h tractor head price are equipped with main mechanical and sub-lightweight seats for operator comfort, and the option for different speed ratios (3.7, 3.93, 4.11, 4.42, 4.77, 5.26, 5.451, 5.73) allows customization based on specific requirements. The engineered intake system with an oil bath filter ensures clean air intake for optimal engine performance.

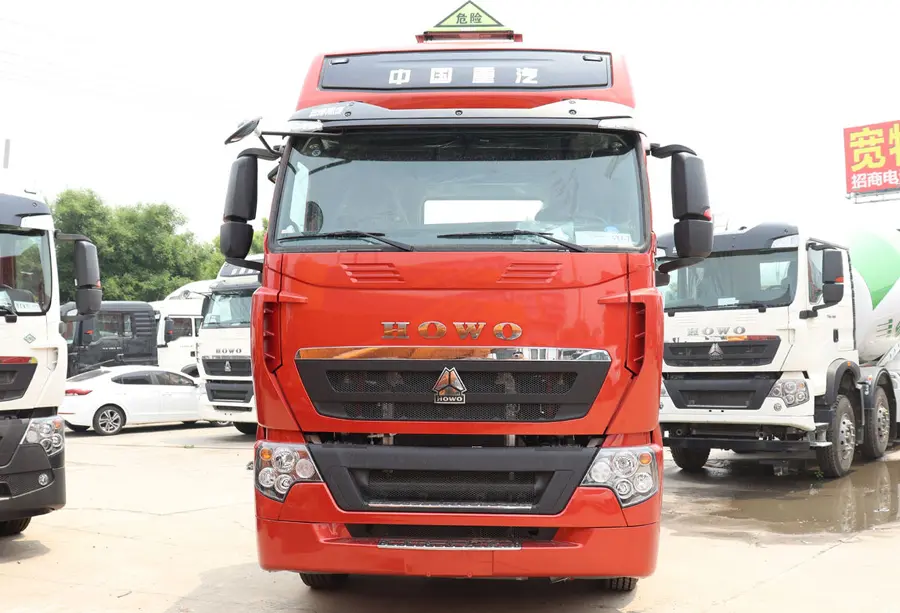

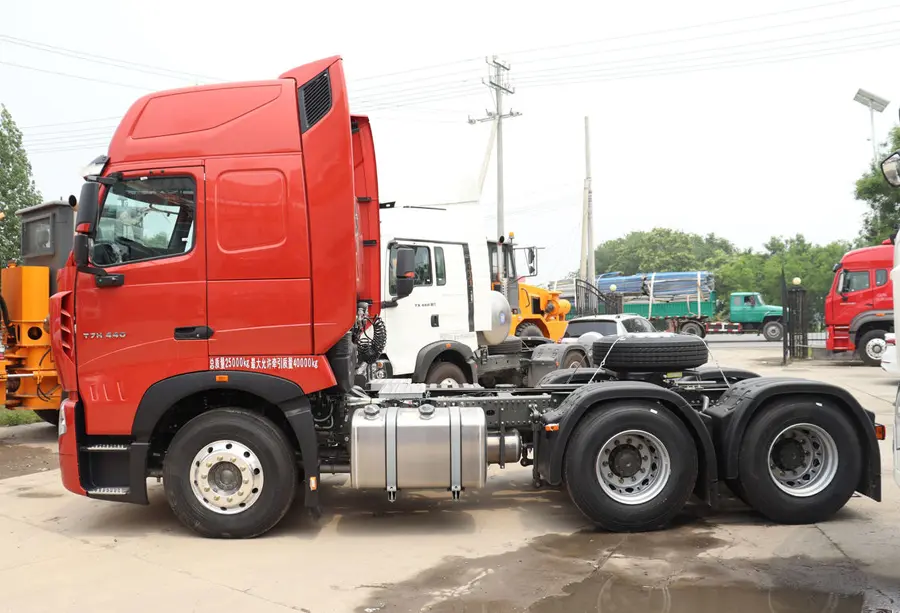

Sinotruk howo t7h tractor head price

Sinotruk howo t7h tractor head price are engineered with robust configurations to meet the demands of heavy-duty transportation tasks. These tractors come in various models, including T7H-P, T7H-G, T7H-W, and T7S cab options, offering versatility for different operational needs. The engine options range from WP10.380E2 to WP12.430E201 and MC11.43-30 to MC11-54-30, providing power outputs suitable for various applications.

Parameters

SINOTRUK HOWO T7H TRACTOR HEAD
Production Year	new truck.
Cabin	T7H-G cab with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
Cabin	High Position Steel Bumper
Engine	Diesel 4-stroke direct injection diesel engine Engine model: WD615. 47, 371HP WP10.380E22, 380HP WP12S.400E201, 400HP 6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission	HW19710, 10F & 2R. Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle	VGD95, 1*9500 KGS Steering with double T-cross section beam
Rear Axle	MCP16ZG , 2*16000KGS Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles.
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Front suspension: 10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse
Tire	12.00R20 or 315/80R22.5 tires
Fuel Tank	400L
Fifth Wheel	90# or 50#
Color	Optional
Overall Dimension	690025503400 mm

Product Advantages

Smarter and more convenient

The 7-inch central control screen is adopted for convenient human-computer interaction. The multi-functional leather steering wheel are provided with 16 buttons, which are easy to operate and can be upgraded with functions such as Bluetooth phone, MP5 player, instrument menu and AEB.

More comfortable

Optimized air distribution at the driver and passenger side vents can provide a more comfortable body feeling. The overall air volume has increased by 9.5% compared to the previous generation. Under the sleeper, an integrated super-large storage space is added to make the space utilization more reasonable.

More safely,more quieter

The cab is designed with four-point suspension, which can filter out bumps and vibrations. Moreover, the cab shock absorbers and chassis shock absorbers have undergone comprehensive recalibration and tuning, so that the noise level of the complete vehicle is reduced by 3dB, creating a quieter driving environment.

Golden Power

The Howo truck is upgraded to a new generation of golden power system, providing a richer range of power configurations to meet different needs. It can output strong power of up to 540 HP and 2500 Nm, and fully meet the emission requirements of Euro ll to Euro VI.

Advanced Driver Assistance System (ADAS)

We embrace a people-first approach to safety, putting the well-being of all road users at the forefront. Utilizing digital technology for intelligent monitoring and control, we wholeheartedly safeguard your safety during your journey.

Product Applications

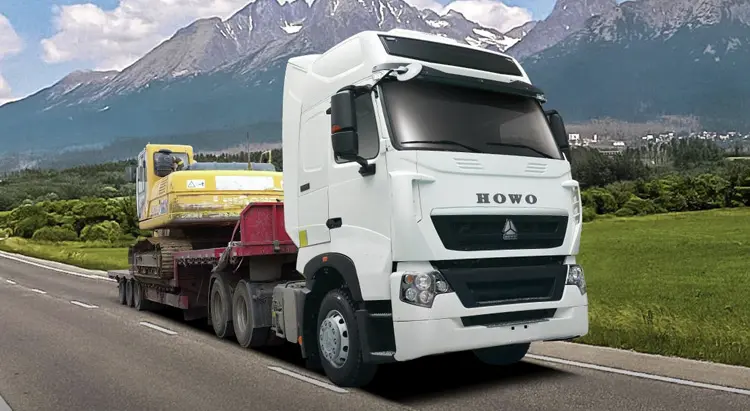

Sinotruk howo t7h tractor head price

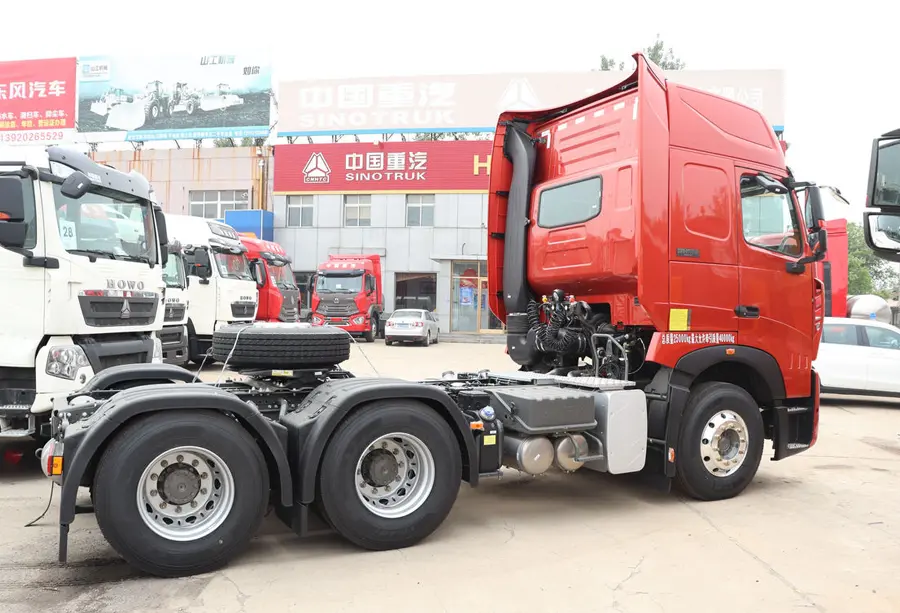

Sinotruk howo t7h tractor head price

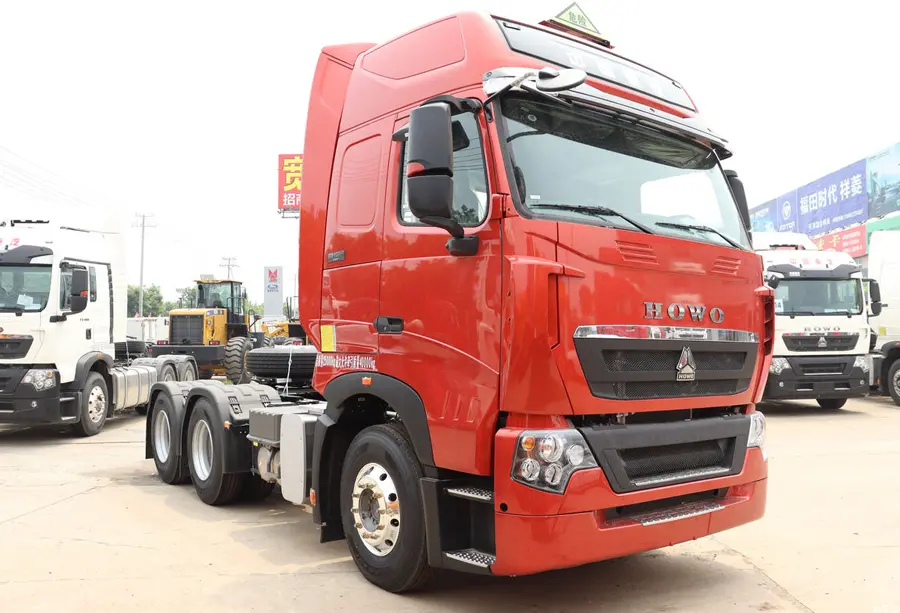

Sinotruk howo t7h tractor head price

Get In Touch With Sinotruk

Type the characters above*

Related Trucks Back to list page

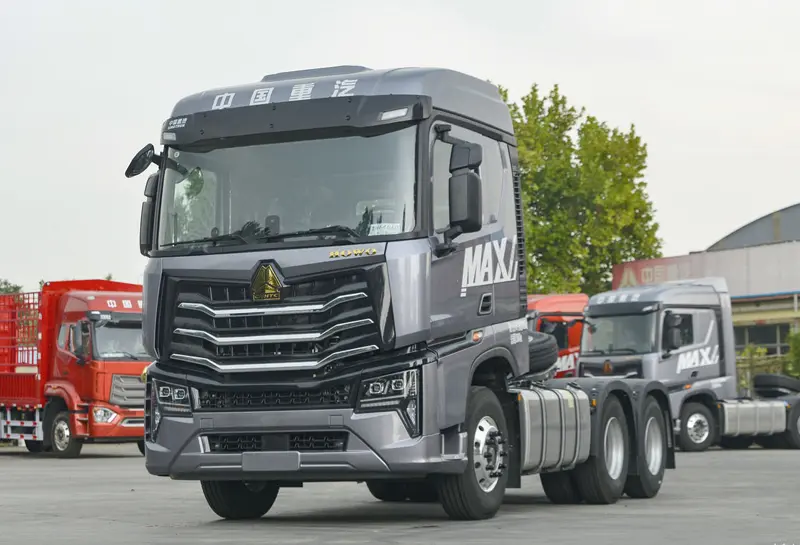

Sinotruk Howo MAX 6×4 Tractor Truck

Model: ZZ4257V344KC1R
Engine: MC11.43-30 430HP
Horsepower: 430HP
Fuel tank: 600L

Price on request Learn More

Sinotruk Howo 420 4×2 Tractor Truck

Model: ZZ4257V324HC1
Dimension(mm): 5,925*2,496*2,970
Engine: MC11.43-30
Max Speed(km/h）: 110

Price on request Learn More

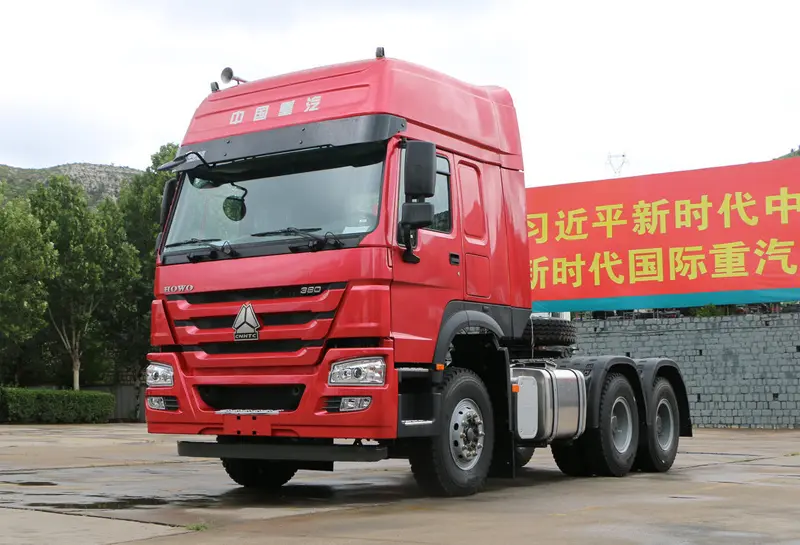

Sinotruk howo 380 tractor truck for sale

Model: ZZ4187M3517
Engine power: 380HP
Engine: WP10.380E22
Curb weight(kg): 7210

Price on request Learn More

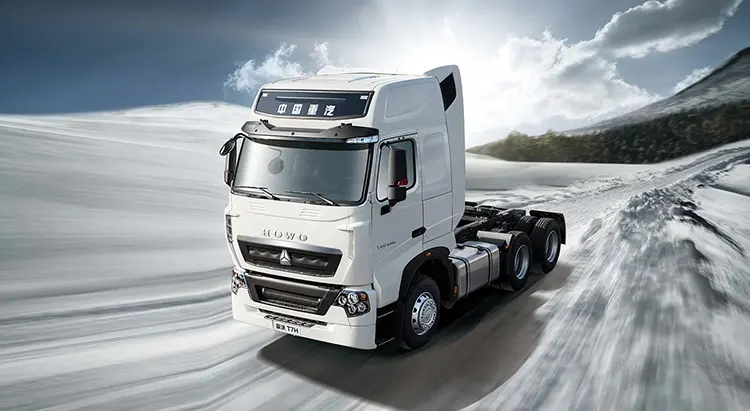

Sinotruk Howo T7H Tractor Head Price
