Sinotruk Howo T7H 6x4 Mixer Truck

Vehicle type

Mixer Trucks

Model

ZZ5257GJBN404HD1

Dimension

10000×2496×3.95mm

Stirring dynamic volume

8m³

Transmission:

Sinotruck HW19710

Engine

Sinotruck MC11.36-40

Maximum horsepower

360hp

WhatApp Message

Product Introduction

Overview

Efficient Concrete Transportation Expert: Sinotruk Howo TX 6×4 Mixer Truck
As a classic model of Sinotruk, Sinotruk Howo TX 6×4 Mixer Truck has become the preferred equipment in the global concrete transportation field by virtue of its strong power and professional design. This Sinotruk Howo TX 6×4 Mixer Truck adopts 6×4 drive form, equipped with 371-400HP high-power engine (supporting Euro II to National VI emission standards), and 25-ton load-bearing chassis, which can load 12-20 cubic meters of concrete, and can easily cope with the demand of high-intensity construction.

The core strength of the Sinotruk Howo TX 6×4 Mixer Truck is its highly efficient mixing system. The mixing drum is made of wear-resistant steel and double screw blade design, combined with intelligent hydraulic control technology to ensure even mixing and low residue rate, which significantly improves construction quality and efficiency. Its modular chassis structure and 10-wheel configuration further enhance the stability and passability under complex road conditions.

Whether it’s a commercial concrete mixing plant or a remote infrastructure project, the Sinotruk Howo TX 6×4 Mixer Truck continues to inject high efficiency into modern construction projects with its high load-bearing capacity, intelligent mixing technology and global adaptability.

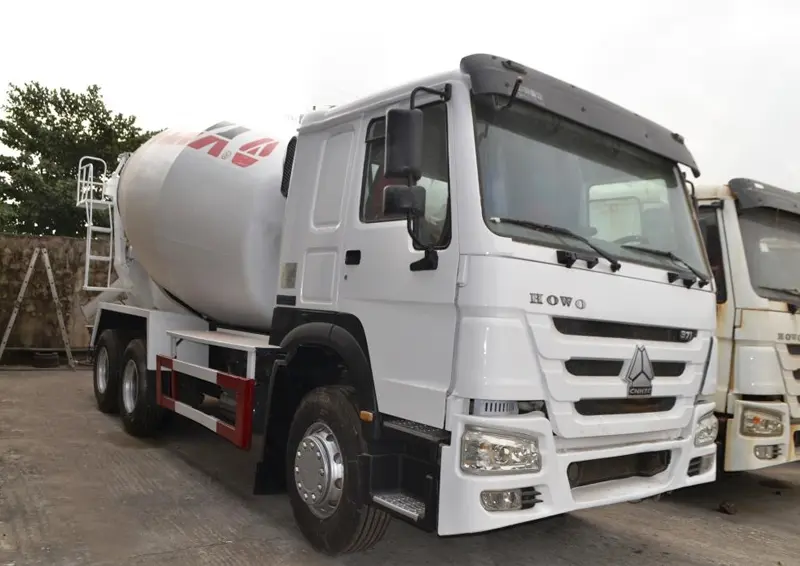

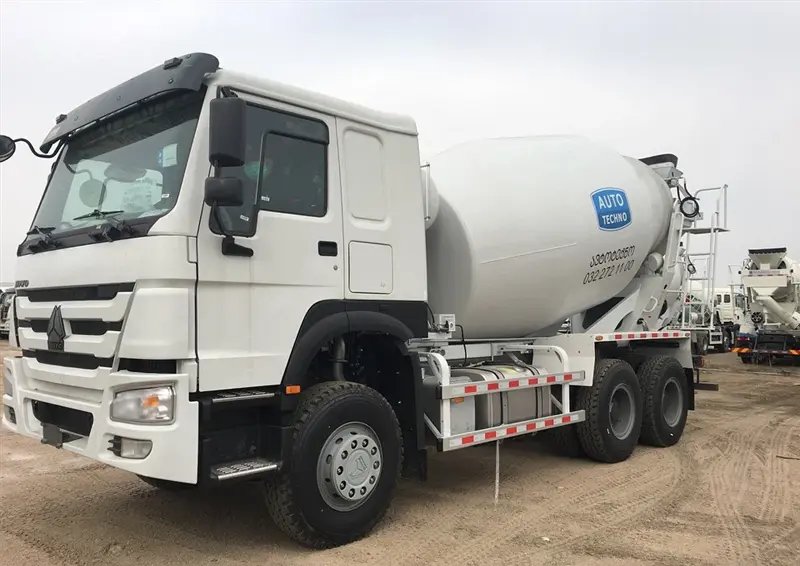

Sinotruk Howo T7H 6x4 Mixer Truck

In global applications, Sinotruk Howo TX 6×4 Mixer Truck has been widely used in Algeria, Southeast Asia and other markets due to its high cost performance and durability. The Sinotruk Howo TX 6×4 Mixer Truck is equipped with a wide-view cab and basic safety assistance functions as standard, taking into account both driver comfort and operational safety.5 Sinotruk’s comprehensive after-sales network and rapid response mechanism provide users with full life-cycle support and minimize the risk of downtime.

Parameters

SINOTRUK HOWO T7H 6X4 MIXER TRUCK
Cabin	HW76 cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
Engine	Diesel 4-stroke direct injection diesel engine Engine model:WP10.360E22 6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission	HW19710, 10F & 2R Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle	VGD95, 1×9500 KGS Steering with double T-cross section beam
Rear Axle	MCX16ZG, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Chassis	Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires	12.00R20, Radial (steel wire) Tires. 10+1 Pics.
Mixer Body	Tank Body: it can as your requirements
Fuel Tank	400L
Overall Dimension	900025503950 mm

Product Advantages

Welcome "Home"

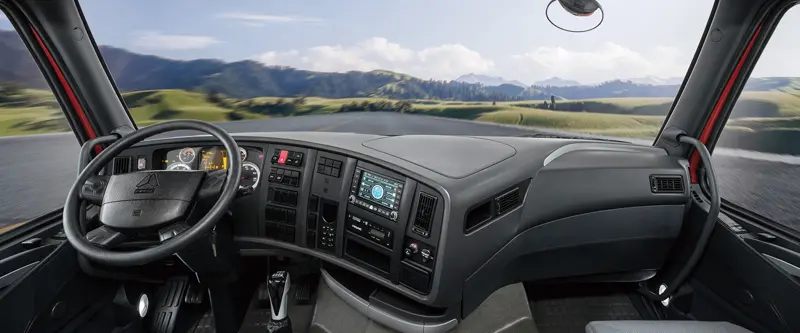

Comfort in the workplace. This is a critical requirement for stress-free operation of the vehicle. The HOWO T7H cabin fulfills this promise with its ergonomic design and equipment and details that are perfectly matched to the tasks involved in transport, offering you a level of comfort reminiscent of home while on the move.

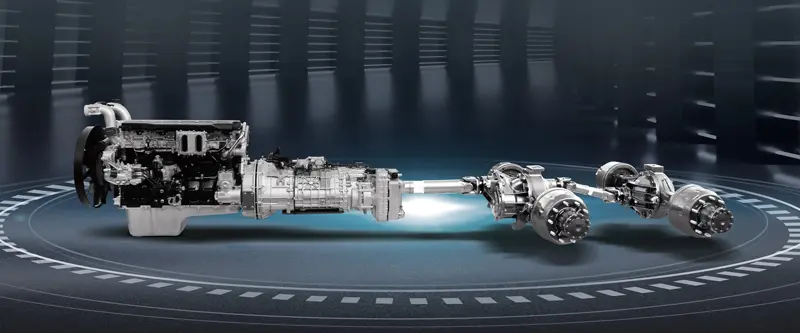

Powertrain: Efficient and Environmentally Friendly

The entire powertrain has undergone rigorous theoretical verification and various complex on-site verifications. Each assembly in the powertrain fully exerts its superior performance, truly realizing the rational matching and optimal utilization of each component.
The combination of precise component matching, advanced processes, and sophisticated manufacturing techniques delivers increased transmission efficiency throughout the powertrain.

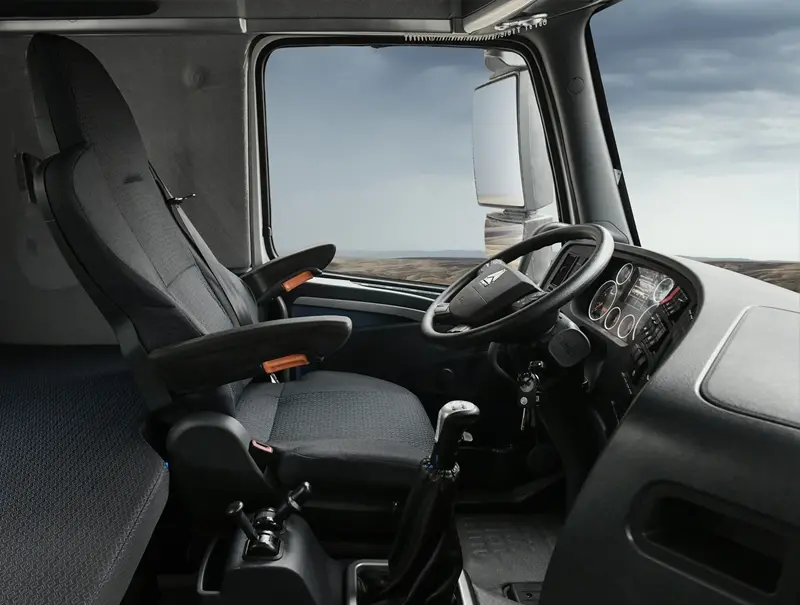

Airbag seats

Airbag seats can help drivers quickly find a suitable seating position; The integrated design of the seat belt and the seat is ergonomically compliant, avoiding the driver's feeling of suffocation caused by emergency braking during driving.

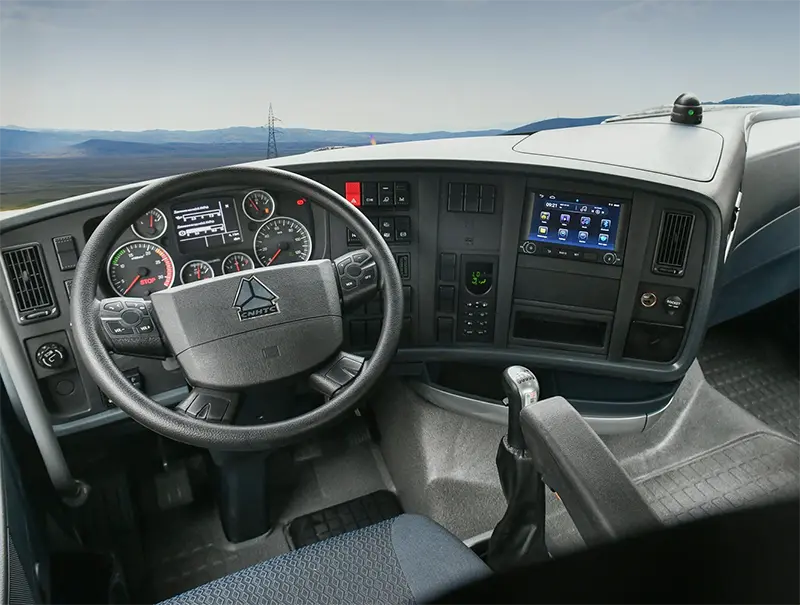

multifunction steering wheel

The dashboard features an integrated, wraparound design, with all buttons conveniently located and within easy reach. The multifunction steering wheel allows the driver to easily control various functions; Height and angle can be adjusted in all directions to meet the needs of drivers of different heights.

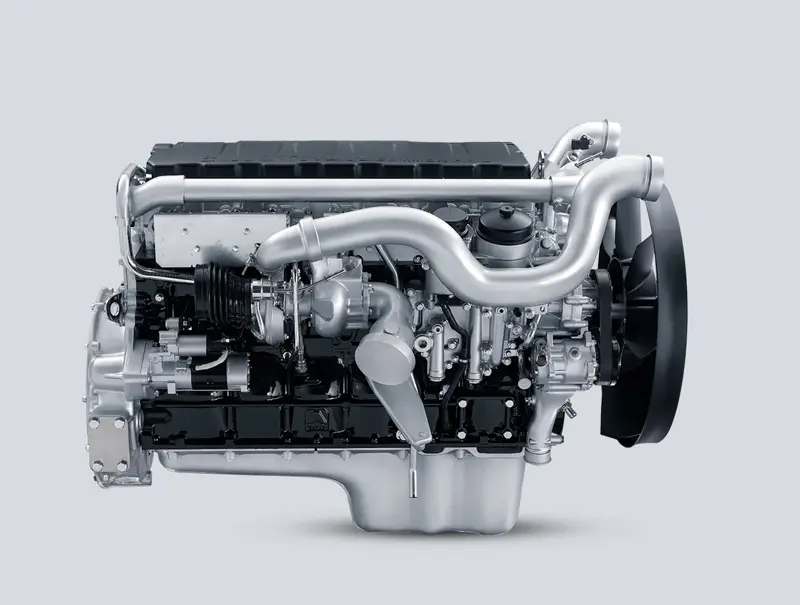

SINOTRUK's Exclusive High-End Power

Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.

Product Applications

Sinotruk Howo T7H 6x4 Mixer Truck
