Sinotruk Howo T7h 540 Truck Price

Sinotruk Howo T7h 540 Truck Price

Vehicle type
Cargo Trucks
Model
ZZ5317XXYN466MD1B
Dimension(m)
11.265*2.55*3.98
Horsepower
540
Rated Load
19.07 tons
Emission
National 4
Drive type
8x4
Product Introduction
Overview

Sinotruk howo T7H 540 truck price: Long-Haul Transportation Expert

Sinotruk howo T7H 540 truck price delivers exceptional performance with its fuel efficiency, comfortable cab, spacious storage, increased speed, and higher payload capacity – all seamlessly integrated to meet your every need.

Comfort in the workplace. This is a critical requirement for stress-free operation of the vehicle. Sinotruk howo T7H 540 truck price cabin fulfills this promise with its ergonomic design and equipment and details that are perfectly matched to the tasks involved in transport, offering you a level of comfort reminiscent of home while on the move.

Sinotruk howo T7H 540 truck price,Four-point suspension, front transverse stabilizer bar, front and rear air shock absorbers, and rear transverse shock absorbers provide superior shock absorption and enhanced comfort.

Sinotruk howo T7H 540 truck price,Airbag seats can help drivers quickly find a suitable seating position; The integrated design of the seat belt and the seat is ergonomically compliant, avoiding the driver’s feeling of suffocation caused by emergency braking during driving.

Sinotruk howo T7H 540 truck price

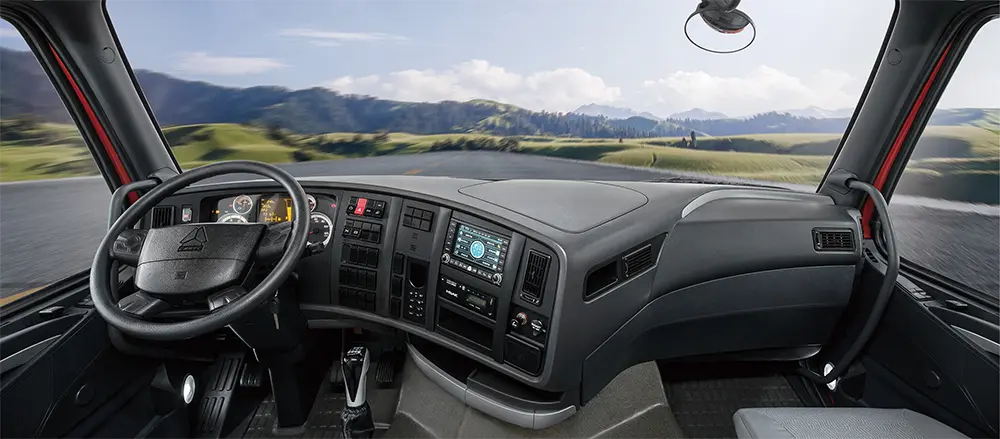

Sinotruk howo T7H 540 truck price,The dashboard features an integrated, wraparound design, with all buttons conveniently located and within easy reach. The multifunction steering wheel allows the driver to easily control various functions; Height and angle can be adjusted in all directions to meet the needs of drivers of different heights.

sinotruk howo T7H 540 truck price-5–
Parameters
Truck name:  Sinotruk howo T7H 540 truck price
Bulletin Model:  ZZ5317XXYN466MD1B
Type:  cargo truck
Drive Form:  8X4
Wheelbase:  1950+3800+1400mm
Box Length Class:  9.5米
Engine:  sinotruk MC11.40-40
Transmission:  sinotruk HW19712CL
Rear Axle Ratio:  3.7
Length:  11.265m
Width:  2.55m
Height. 3.98m
Front Wheelbase:  2022/2022mm
Rear Wheelbase:  1830/1830mm
Overall Vehicle Weight:  11.8 tons
Rated Load:  19.07 tons
Gross Mass:  31 tons
Maximum Speed:  101km/h
Place of Origin:  Jinan, Shandong
Tonnage Class:  Heavy-duty truck
Approach Angle:  15 degrees(°)
Departure Angle. 15 degrees(°)
Engine Brand:  sinotruk
Engine Model:  sinotruk MC11.40-40
Engine Information:  Heavy Duty Truck Man 11L
Number of Cylinders:  6-cylinder
Fuel Type:  Diesel
Cylinder Arrangement:  Inline
Displacement:  10.518L
Emission Standard:  National 4
Maximum Output:  294kW
Maximum Horsepower:  400hp
Maximum Torque:  1900N.m
Maximum Torque RPM. 1000-1400rpm
Product Advantages
sinotruk howo T7H 540 truck price-6
Appearance
Italian design style, with bold lines emphasizing a modern, dynamic, and minimalist design concept. The overall shape is unique, with a low drag coefficient. The air intake is perfectly integrated with the corresponding side deflector; Newly designed rearview mirrors feature electric adjustment and heating; The spacious toolbox offers users sufficient storage capacity; Three-stage, non-slip steps made of stainless steel provide safer and more convenient access for passengers.
sinotruk howo T7H 540 truck price-7

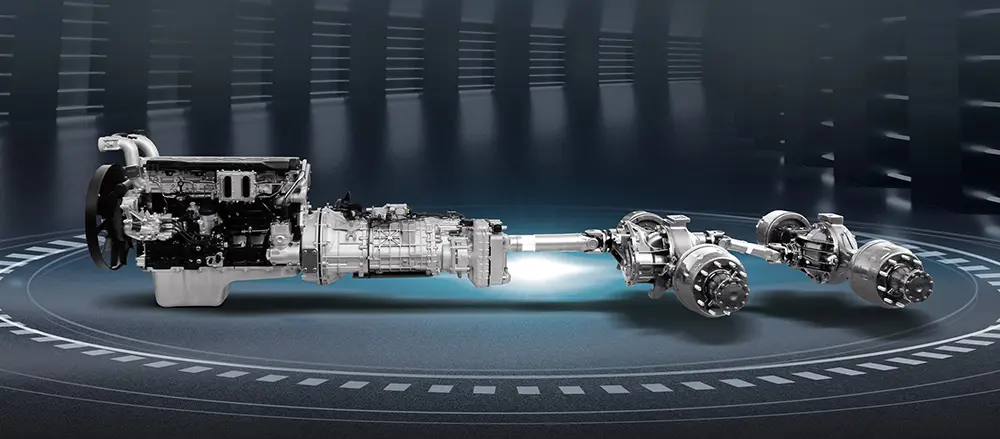

Powertrain: Efficient and Environmentally Friendly
The entire powertrain has undergone rigorous theoretical verification and various complex on-site verifications. Each assembly in the powertrain fully exerts its superior performance, truly realizing the rational matching and optimal utilization of each component.
The combination of precise component matching, advanced processes, and sophisticated manufacturing techniques delivers increased transmission efficiency throughout the powertrain.
SINOTRUK HOWO -7

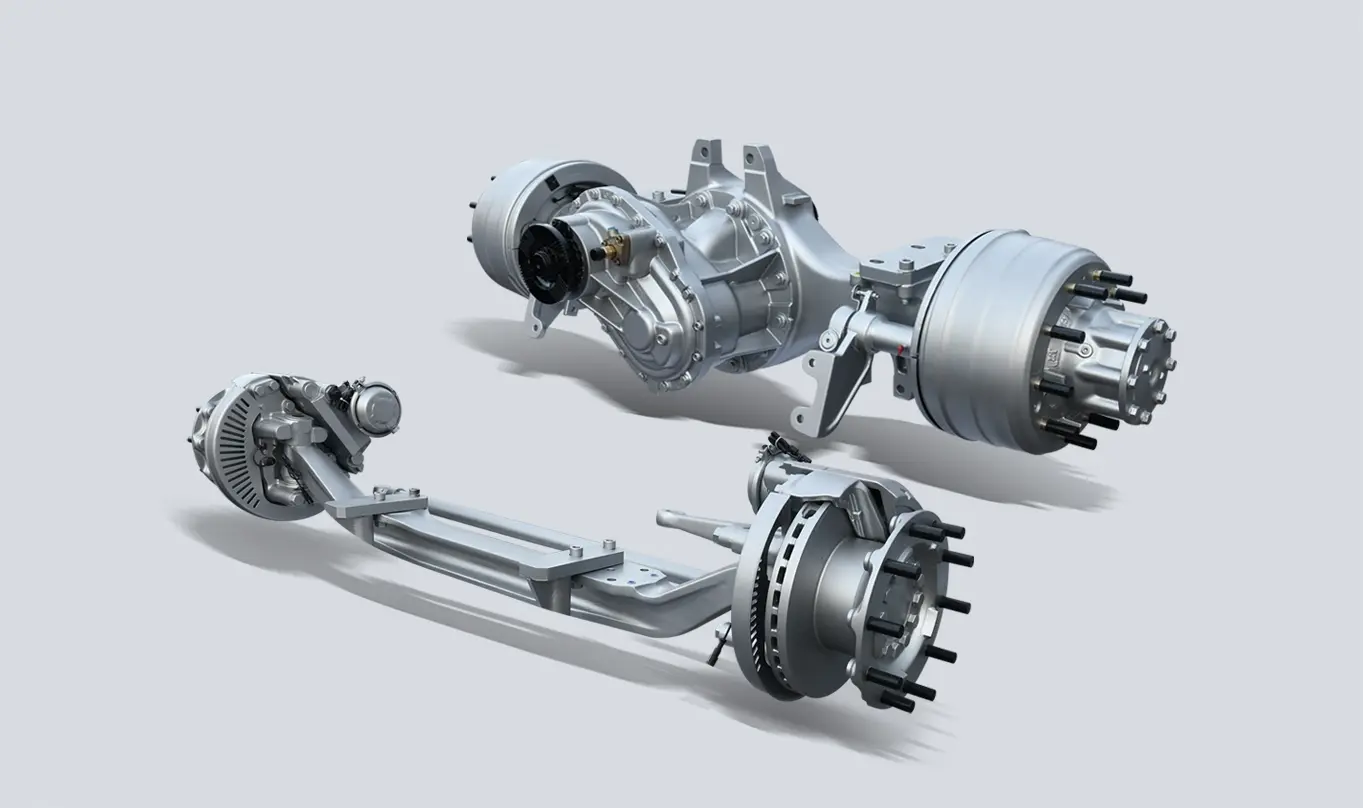

Axles - Carry More, Cost Less
The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life to accommodate various road conditions.
SINOTRUK HOWO -5
MC Series Engine
Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.
SINOTRUK HOWO -4
Transmission - Always in the Right Gear
The HW series transmissions incorporate a globally leading design concept, utilizing a twin-countershaft configuration for the main transmission and a planetary gear set for the auxiliary transmission. This design results in easier PTO and gear shift operation, along with increased reliability and durability.
Product Applications

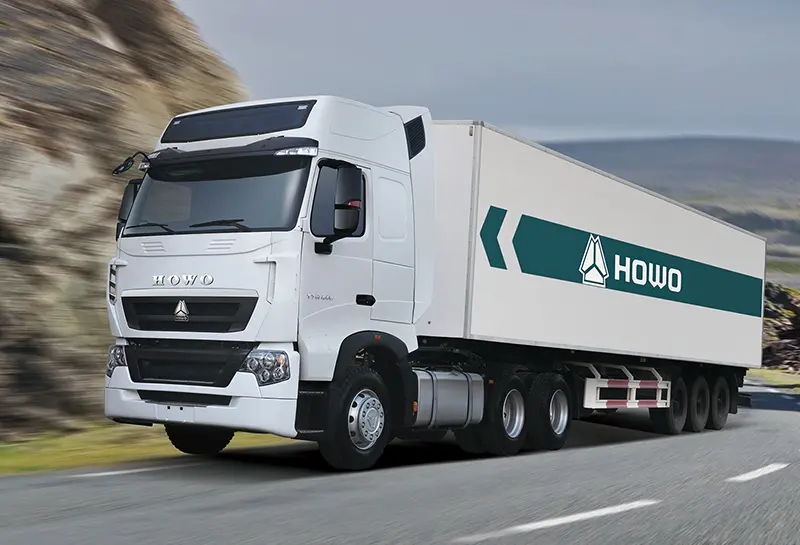

sinotruk howo T7H 540 truck price-5–
Sinotruk howo T7H 540 truck price

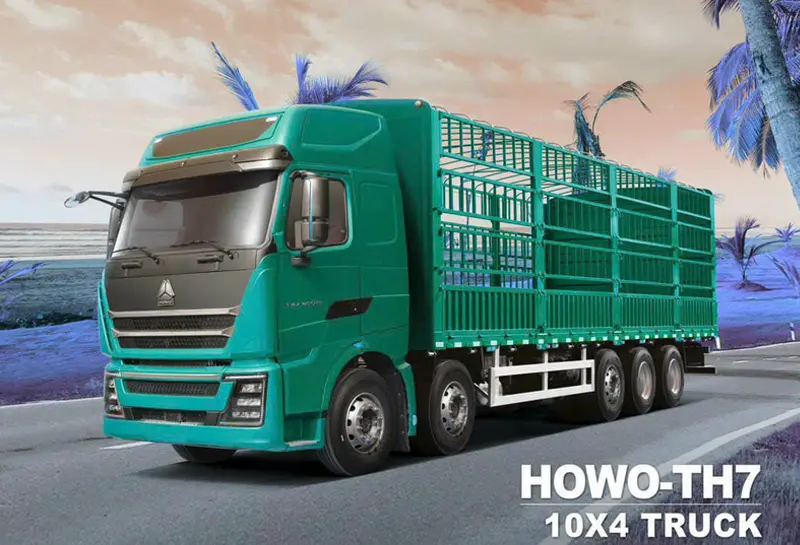

sinotruk howo TH7 cargo truck china-10
Sinotruk howo T7H 540 truck price

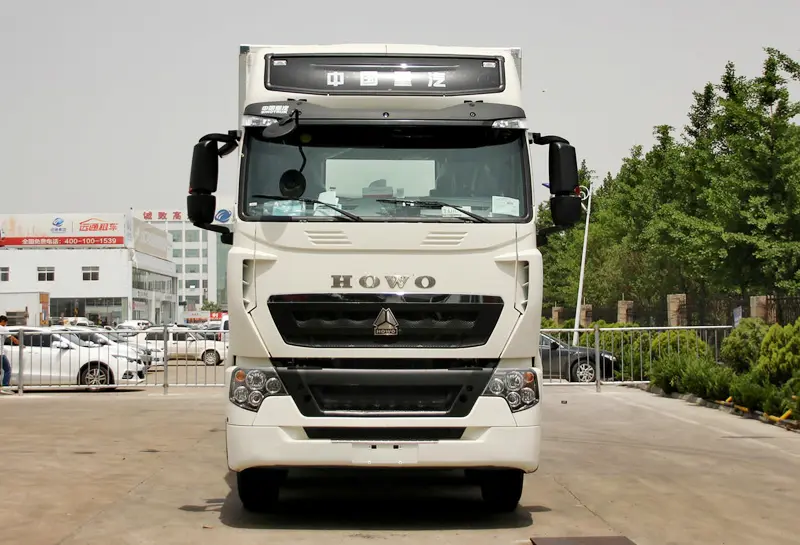

sinotruk howo T7H 540 truck price-1
sinotruk howo T7H 540 truck price

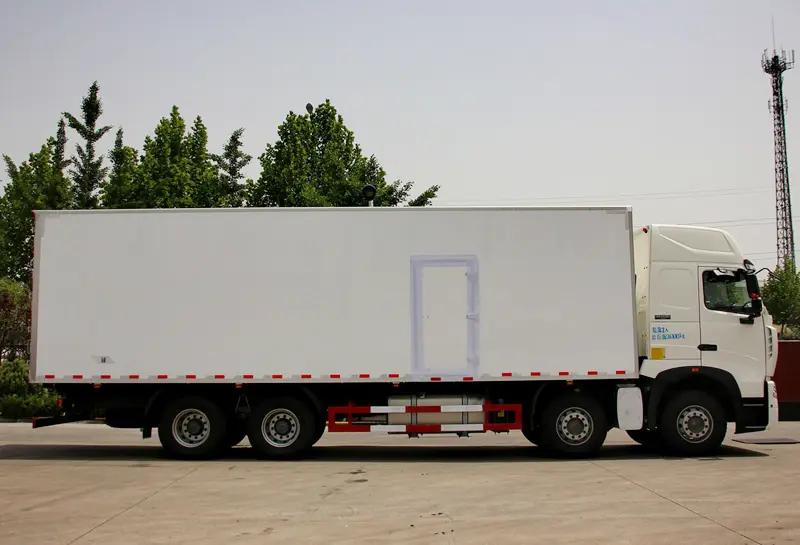

sinotruk howo T7H 540 truck price-3
sinotruk howo T7H 540 truck price
sinotruk howo T7H 540 truck price
sinotruk howo T7H 540 truck price
