Sinotruk Howo T5g Mixer Trucks For Sale

Sinotruk Howo T5g Mixer Trucks For Sale

Vehicle type
Mixer Trucks
Model
ZZ1257N384GB1R
Dimension(m)
1000×2.496×3.950
Maximum Speed
82km/h
Mixing dynamic volume
9m³
Engine
Sinotruck MC07.34-50
Drive type
6x4
Product Introduction
Overview

Sinotruk howo T5G mixer trucks for sale is an all new generation of high-end medium and heavy duty truck developed by CNHTC based on the core assembly technology from MAN. Sinotruk howo T5G mixer trucks for sale features outstanding fuel economy, light weight, superior power, and stable and reliable performance; meanwhile, Sinotruk howo T5G mixer trucks for sale offers multiple personalized configuration options, with an elegant, safe and comfortable cab. Sinotruk howo T5G mixer trucks for sale is suitable for long-distance standard load transport as well as medium- and short- distance transport by highway.

Sinotruk howo T5G mixer trucks for sale,Efficient power performance:

Equipped with advanced engine technology, it provides strong power output and is suitable for heavy-duty transportation.Optimized fuel economy reduces operating costs.

Sinotruk howo T5G mixer trucks for sale,Rugged and durable design:

Using high-strength steel, the frame structure is sturdy and adapts to complex working conditions.The mixing drum adopts wear-resistant material to extend the service life.

Sinotruk howo T5G mixer trucks for sale,Comfortable driving experience:

Equipped with luxury cab, spacious space and wide view.
The humanized design of the seat and console reduces the fatigue of driving for a long time.

Sinotruk howo T5G mixer trucks for sale,Intelligent configuration:

Equipped with intelligent monitoring system, real-time monitoring of vehicle status.
Support GPS navigation and fault warning function to improve safety.

Sinotruk howo T5G mixer trucks for sale,Environmental protection and energy saving:

Comply with the latest emission standards to reduce environmental pollution.
Adopt energy-saving technology to reduce carbon emissions.

Sinotruk howo T5G mixer trucks for sale

Sinotruk howo T5G mixer trucks for sale is an efficient vehicle suitable for engineering construction and concrete transportation thanks to its powerful power performance, intelligent configuration, and environmentally friendly and energy-saving features. Sinotruk howo T5G mixer trucks for sale rugged design and comfortable driving experience make it a trustworthy choice for users.

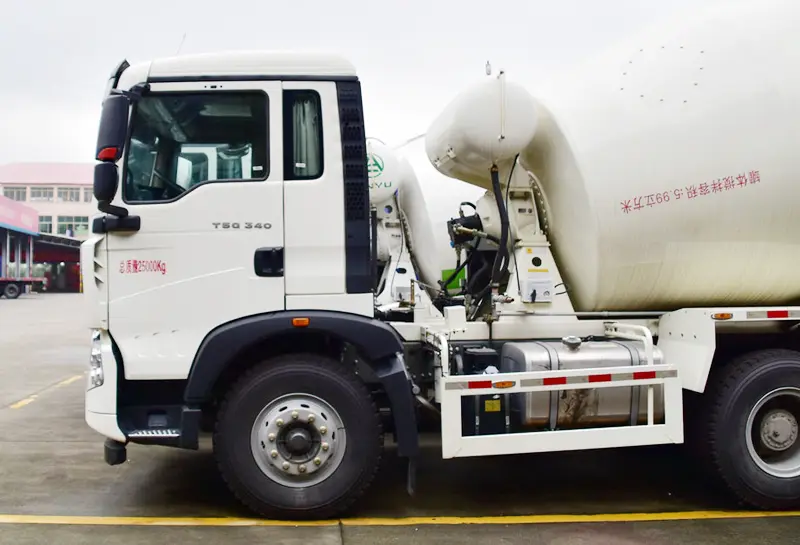

sinotruk howo T5G mixer trucks for sale-4
Parameters
SINOTRUK HOWO T5G MIXER  TRUCKS
Cabin HW76 cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
Engine Diesel 4-stroke direct injection diesel engine
Engine model:WD615.47, 371HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission HW19710, 10F & 2R
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle VGD95, 1×9500 KGS
Steering with double T-cross section beam
Rear Axle MCX16ZG, 2×16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Chassis Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members
Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires 12.00R20, Radial (steel wire) Tires. 10+1 Pics.
Mixer Body Tank Body: it can as your requirements
Fuel Tank 400L
Overall Dimension 9000*2550*3950 mm
Product Advantages
sinotruk howo T5G mixer trucks for sale-6
Ideal Working Environment
Equipped with an air conditioning system that adapts to various climatic conditions.
Multi-function instrument panel with clear information display.
Airbag and anti-collision design to ensure driver safety.

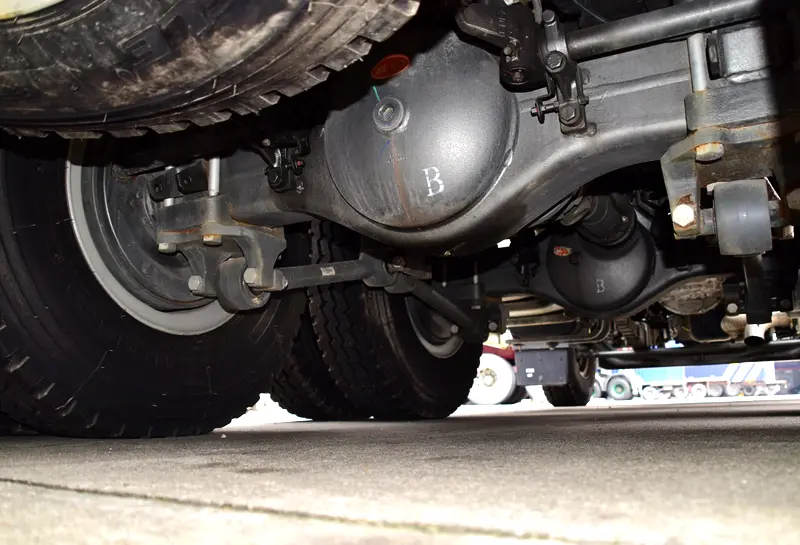

sinotruk howo T5G mixer trucks for sale-9
Chassis structure
High-strength frame with strong load-bearing capacity.
A variety of wheelbase options to adapt to different transportation needs.

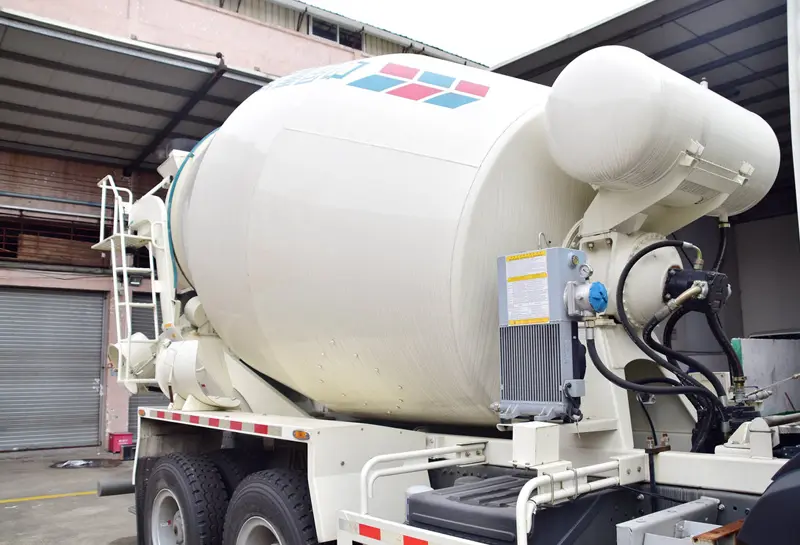

sinotruk howo T5G mixer trucks for sale-8
Mixing barrel
Volume: 8-12 cubic meters optional.
Material: wear-resistant steel, strong corrosion resistance.
High mixing efficiency, can mix concrete evenly.

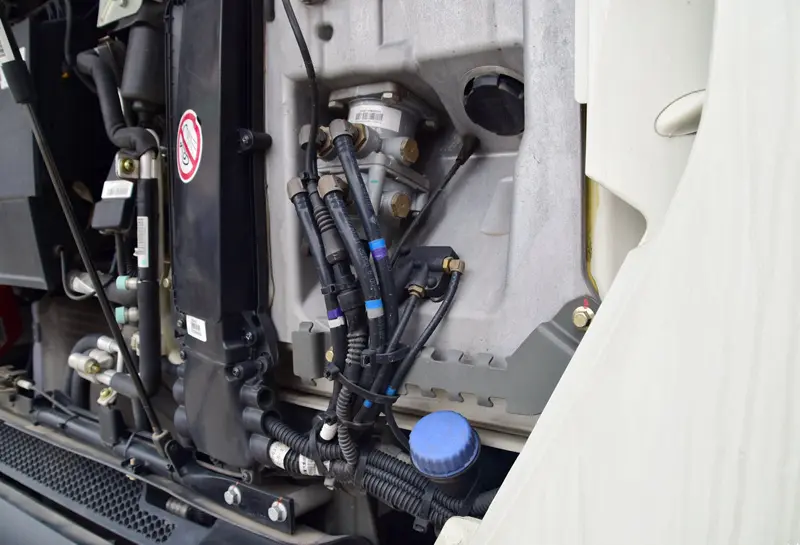

sinotruk howo T5G mixer trucks for sale-5
Power system
Engine model: adopts Sinotruk's self-developed high-efficiency engine, which meets the National VI emission standard.
Maximum power: 280-340 horsepower, suitable for various construction scenarios.
sinotruk howo T5G mixer trucks for sale-7
Transmission
Manual or automatic transmission is optional, flexible operation.
High stability, suitable for long time working.
Product Applications

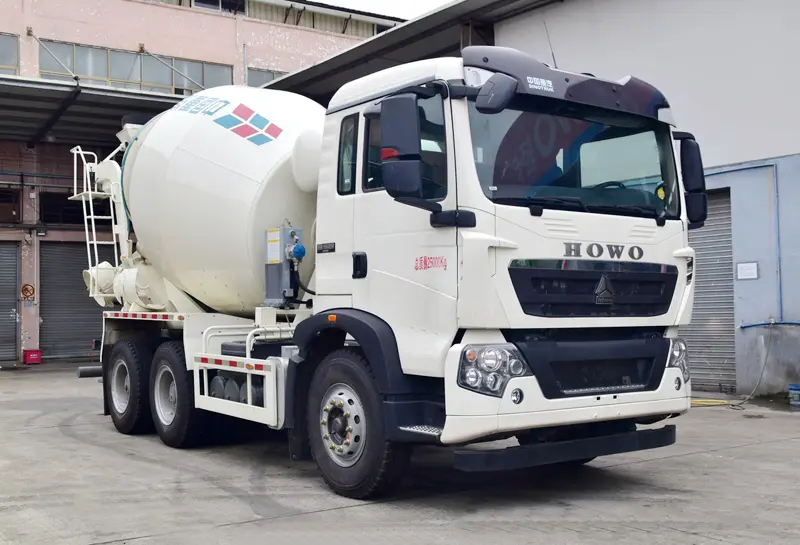

sinotruk howo T5G mixer trucks for sale-3
Sinotruk howo T5G mixer trucks for sale

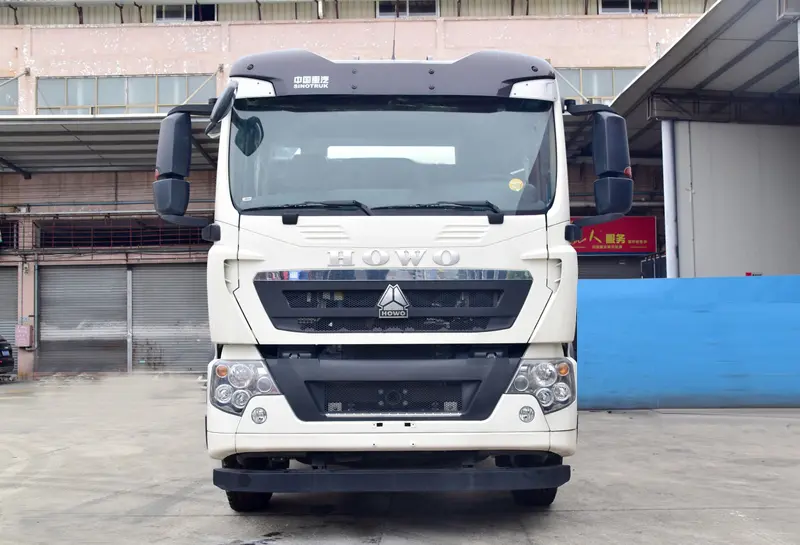

sinotruk howo T5G mixer trucks for sale-2
Sinotruk howo T5G mixer trucks for sale

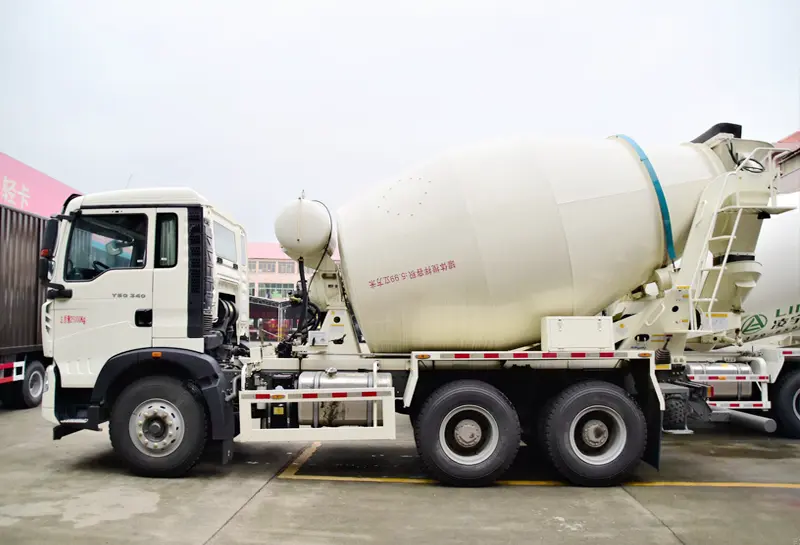

sinotruk howo T5G mixer trucks for sale-1
Sinotruk howo T5G mixer trucks for sale
