Sinotruk Howo Low Bed Semi Trailer

Sinotruk Howo Low Bed Semi Trailer

Vehicle type
Semi Trailers
Overall dimension
12500x2500x1550mm
Curb weight
7000kg
Loading capacity
50 000 kg
Tyre and quantity
12R22.5 , 12 units
Axle brand and number
13 ton , FUWA brand ,3 units
Painting
Optional
Product Introduction
Overview

Sinotruk Howo Low Bed Semi Trailer  with ladder can generally be used for heavy construction in the industries of electric power construction, mining, metallurgy, chemical industry, hydroelectric and thermal power generation equipment, power station construction, heavy machinery manufacturing, oil fields, bridges, loading and unloading operations, and railroad construction. Or long-distance road transportation of non-movable limited goods (articles).

Sinotruk Howo Low Bed Semi Trailer  is made of Q345B high-strength steel plate, which is characterized by light weight and strong bump resistance.

All the parts of Sinotruk Howo Low Bed Semi Trailer are made of domestic famous parts, including 13-ton axle, 28-ton linkage legs, double-cavity brake cylinders and so on.

Sinotruk Howo Low Bed Semi Trailer

Sinotruk Howo Low Bed Semi Trailer have 4/8/10 lightweight leaf springs, strong shock absorption, standard 12R tires, optional ABS; 4/6/8/12 sets of container locks can be installed inside the vehicle for transporting refrigerated containers, dry containers, 40-foot shipping containers and 20-foot shipping containers.

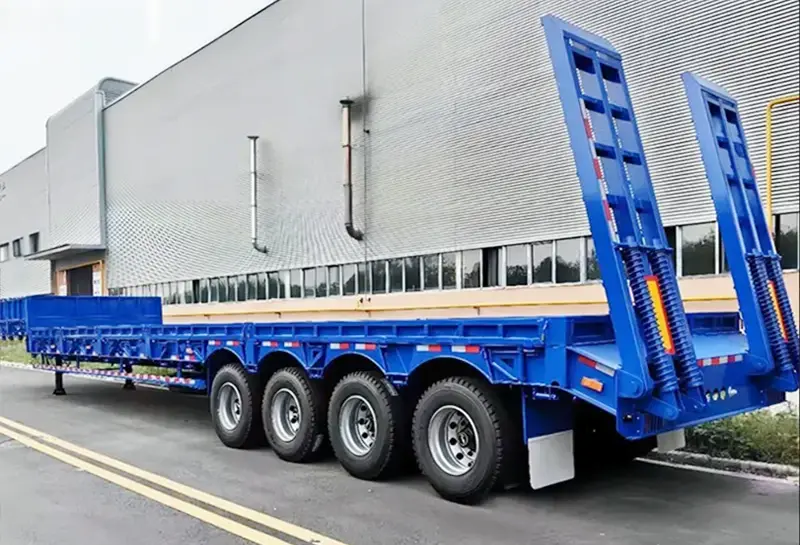

sinotruk howo low bed semi trailer-3
Specification
Sinotruk Howo Low Bed Semi Trailer
Overall dimension (mm) 12500x2500x1550
Curb weight (kg) 7000
Loading capacity  50 000 kg
Axle brand and number 13 ton , FUWA brand ,3 units
Kingpin 2 inch (50mm ) or 3.5 inch ( 90mm )
Landing gear 28 ton, Jost brand , Double speed
Steel spring  -10/10/10 leaf spring suspension
Suspension system  Commen mechanical suspension
The material of main beam  The height of the beam is 500mm, upper plate is 14 mm,down plate is 16mm, middle plate is 8 mm
Tyre and quantity 12R22.5 , 12 units
Platform plate  3 mm diamond plate
Braking system  Dual line braking system
Braking chamber  6 double air chamber
Electrical system  24V, 7 pin socket, one set-6 coin standrad cable
Light Tail lamp with turn signal , braking lamp&reflector
Tool box  1 set
Spare tire carrier 2 sets
Painting  Optional



Sinotruk Howo Low Bed Semi Trailer Pictures



Sinotruk Howo Low Bed Semi Trailer  | howo trailer truck | sinotruk trailer | howo semi truck



Sinotruk Howo Low Bed Semi Trailer  | howo trailer truck | sinotruk trailer | howo semi truck



Sinotruk Howo Low Bed Semi Trailer  | howo trailer truck | sinotruk trailer | howo semi truck

Product Applications

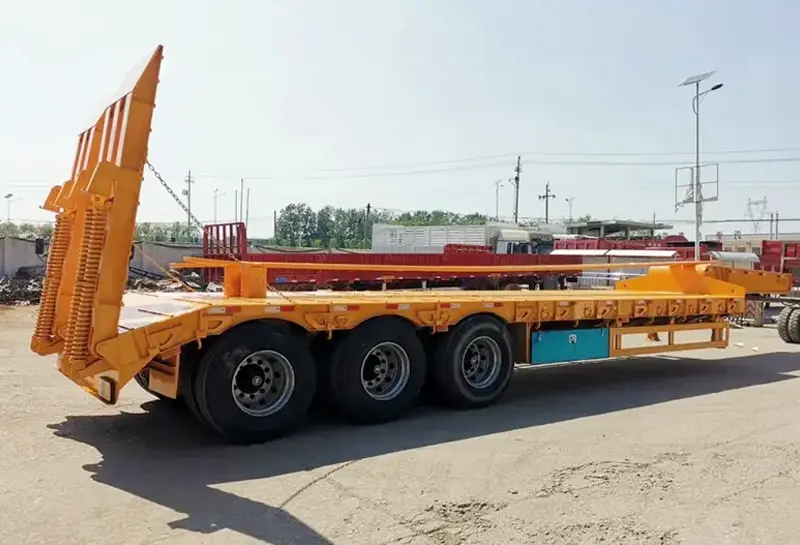

sinotruk howo low bed semi trailer-7
Sinotruk Howo Low Bed Semi Trailer

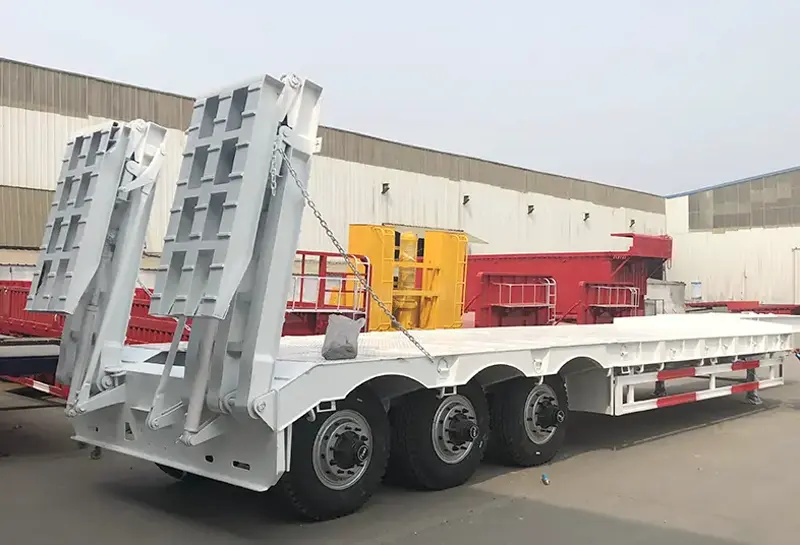

sinotruk howo low bed semi trailer-6
Sinotruk Howo Low Bed Semi Trailer

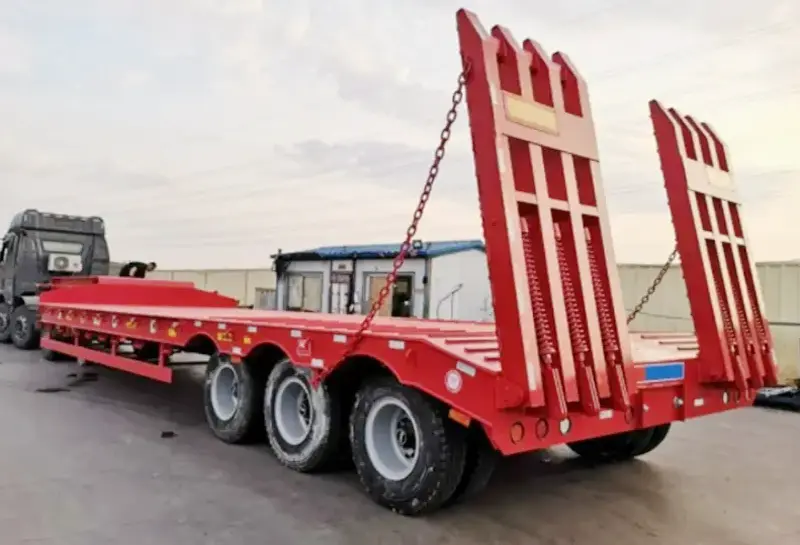

sinotruk howo low bed semi trailer-5
Sinotruk Howo Low Bed Semi Trailer
