Sinotruk Howo Light Cargo Truck find applications in various industries and sectors due to their versatility and reliability. Sinotruk Howo Light Cargo Truck are specifically designed to handle lighter loads and navigate through urban or rural areas with ease. Here are some common applications of Sinotruk howo 4×2 light cargo truck:
Logistics and Transportation:Sinotruk Howo Light Cargo Truck find are widely used for the transportation of goods and materials in urban and suburban areas. Their compact size and maneuverability make them well-suited for navigating through congested city streets and narrow lanes.
E-commerce Delivery: With the rapid growth of e-commerce, Sinotruk Howo Light Cargo Truck find are commonly used for last-mile deliveries. Their ability to access residential areas and make frequent stops makes them ideal for delivering packages and parcels to customers’ doorsteps.
Municipal Services: Sinotruk Howo 4×2 Light Cargo Truck are employed by municipal authorities for various tasks such as garbage collection, street sweeping, and maintenance of public spaces. Their agility and versatility enable efficient operations in urban environments.
Sinotruk Howo Light Cargo Truck Specifications
|
|
Engine
|
Engine model: YN4102QBZL,EuroⅡemission standard
|
Clutch
|
Single-plate diaphragm spring clutch, diameter 300 mm, hydraulically operating
|
Transmission
|
WLY transmission, model WLY646,synchromesh,6 forward & 1 reverse Ratio:6.314 3.913 2.262 1.393 1 0.788 5.874 (R)
|
Front Axle
|
VGD027QB, forging forming of front axle I-beam, to guarantee the stiffness and high strength.
|

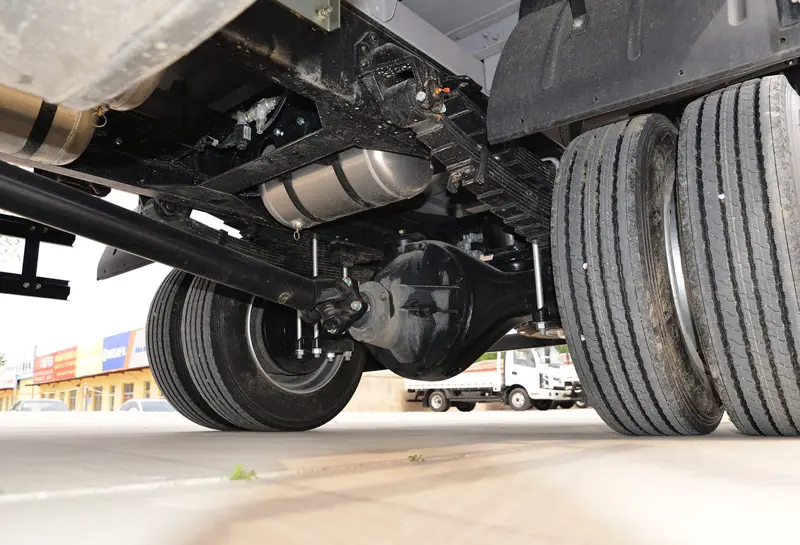

Rear Axle
|
HGC055QJ,mature punching welding axle and pressed axle housing Ratio:4.63
|
Chassis
|
Frame :ladder frame with section of 215×70×6 mm, all cold riveted cross members
|

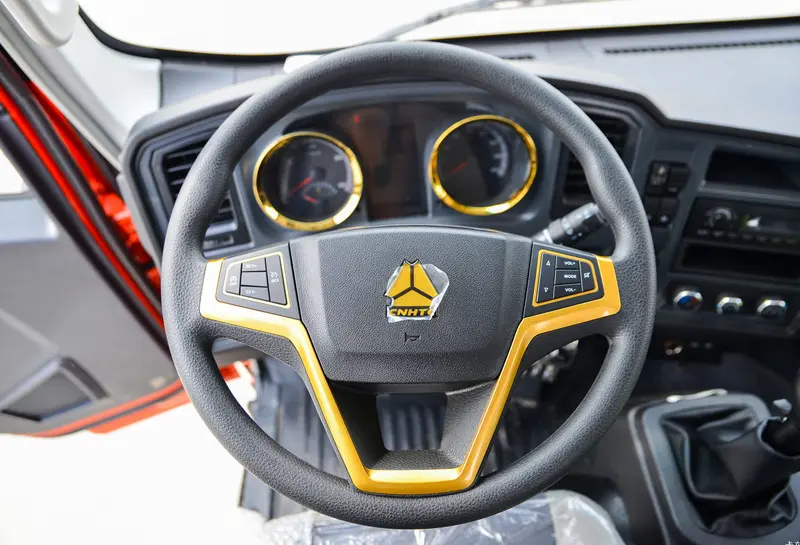

Steering
|
LG9704470020,hydraulic steering with power assistance Ratio: 18.85:1
|
Brakes
|
Service brake: dual circuit compressed air brake Parking brake (emergency brake):spring energy, compressed air operating on rear wheels (optional) Auxiliary brake: engine exhaust brake (optional)
|
Wheels & Tyres
|
Rims: 6.00G-16,6 hole-steel Tyres:8.25-16 tube Option:7.50-16 tube, 7.50R16 tube, 8.25R16 tube
|
Driver’s Cab
|
Single cab, 45° hydraulically tiltable to the front,2-arm windscreen wiper system with three speeds, adjustable driver’s seat, with heating and ventilating system, interior double sun visor, sunroof, radio and USB interface, safety belts, adjustable steering wheel, horn.
|
Electrics
|
Operating voltage:24 V, negative grounded
|
Instrument Panel
|
Active check central controller with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure.
|
Dimensions in mm
|
Overall dimension(L x W x H mm) 6995×2180×2450 Body size 5150×2050×550
|
Weight in kg
|
Dead weight (kg) 3500 Load weight(kg) 7000 Gross vehicle weight (kg) 10500
|
Performance
|
Maximum driving speed(km/h) 95 Maximum grade ability(%) 30 Minimum ground clearance(mm) 210 Minimum turning circle(m) 15.5 Fuel consumption(1/100km) 14.5
|
