Trailer Model

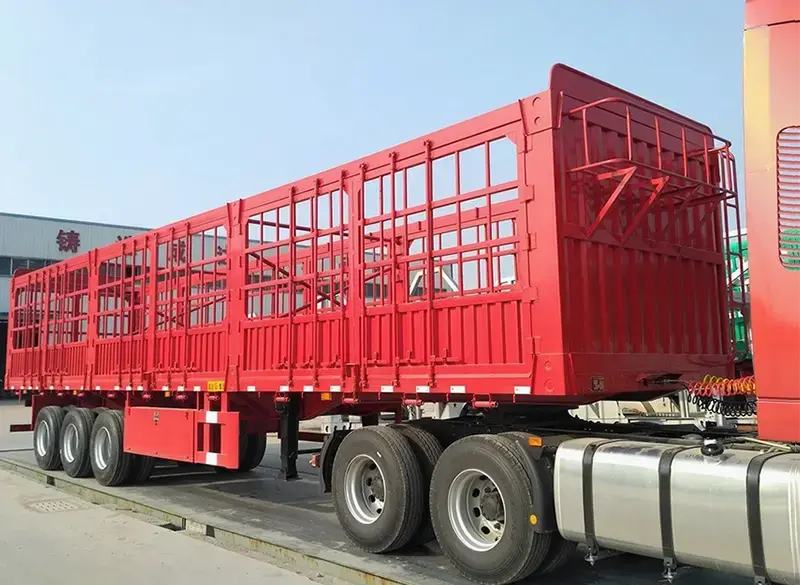

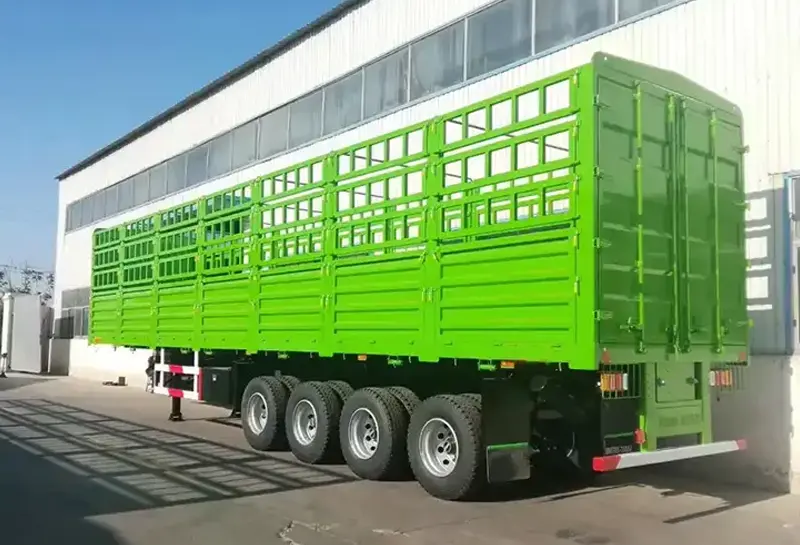

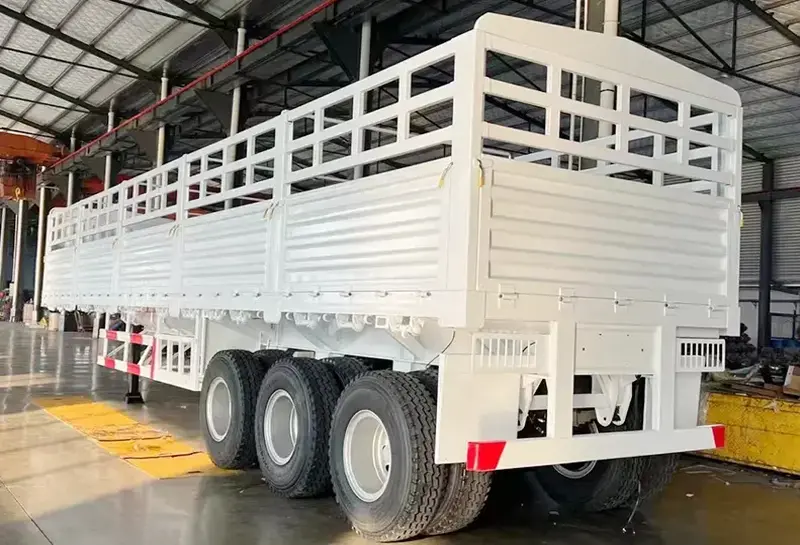

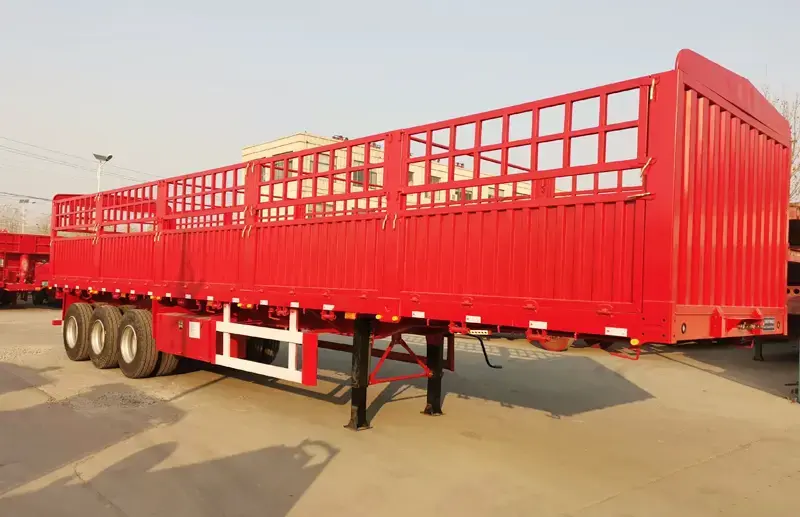

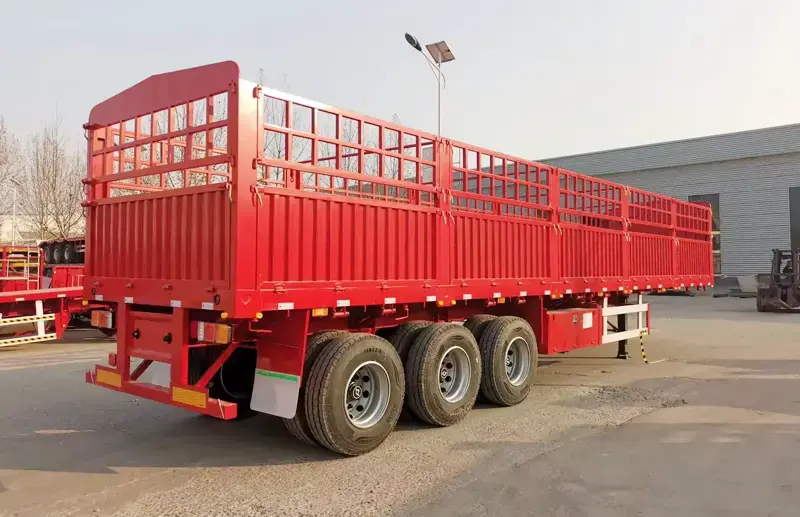

Sinotruk Howo Fence Cargo Semi Trailer for sale

Specifications

Overall Dimension

(Lx W x H)(mm)

12500*2500*1600+600mm

Tare Weight(KG)

6500

Loading Weight( KG)

60000

Wheel Base(mm)

7450mm+1310mm+1310mm

Semi Trailer Chassis

Platform plate

3mm Diamond plate

The material of Main beam

Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.

Side beam

Q235 16# channel steel

Axle Brand

13TON Axle  FUWA Brand

Axle Number

Three

Suspension system

Mechanical Suspension

Leaf spring

90(W)mm*13(Thick)mm*10 Layer

Landing Gear

28ton Chinese brand,double speeds

Tire Type and quantity

12R22.5 12units

Wheel Rim

9.00-22.5

Traction Pin

2” or 3.5”

Spare Wheel Bracket

2 pieces

Tool Box

1 Standard

Electrical & Paint

Brake system

Dual Line braking system

Brake air chamber

Six double chamber

Electrical system

1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Painting

Color as customer’s requirement

Packing&Shipping

Packing

Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint

Delivery way

Transfer to Qingdao/Tianjin Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume.
