Sinotruk Howo Container Chassis Trailer

Sinotruk Howo Container Chassis Trailer

Vehicle type
Semi Trailers
Overall dimension
13950*2500*1550mm
Tare weight
6500Kg
Brake Valve
WABCO
Tyre and quantity
12R22.5 , 12 units
Axle brand and number
13 ton , FUWA brand ,3 units
Painting
Optional
Product Introduction
Overview

Sinotruk Howo Container Chassis Trailer main beams are made of super-strong steel casting, which increases the strength by 2 times, and eliminates the side panels for a lighter body. Vehicle warranty of 2 years, 12 performance tests of the whole vehicle and key components to ensure driving safety.

A major change in the Sinotruk Howo Container Chassis Trailer is the different way the trailer legs are mounted. Instead of attaching the trailer’s outriggers directly to the beams, a tripod is placed underneath the beams so that the outriggers have a greater point of attachment to the force. As a result, the trailer will be more stable when parked alone and its service life will be further improved.

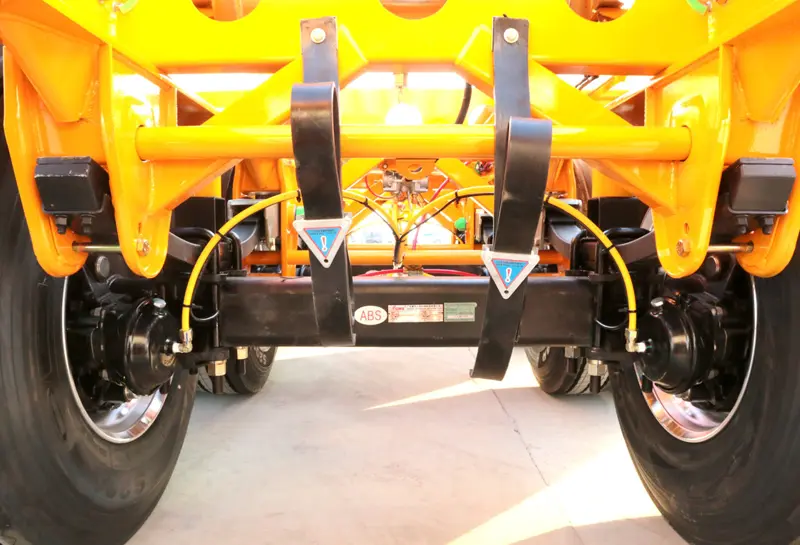

Sinotruk Howo Container Chassis Trailer In terms of light weight, Sinotruk Howo Container Chassis Trailer adopts aluminum alloy fence, aluminum alloy tool box and aluminum alloy fenders to reduce the weight and chooses the antilock braking system, which greatly improves the service life of tires.

Lower loading surface: Sinotruk Howo Container Chassis Trailer frame adopts special small gooseneck structure, which greatly reduces the height of the loading surface and the center of gravity of the cargo, facilitates the transportation and improves the driving safety of the vehicle.

Sinotruk Howo Container Chassis Trailer

Sinotruk Howo Container Chassis Trailer also named 45ft skeletal semi trailer, container chassis trailer etc. Sinotruk Howo Container Chassis Trailer are generally used for transport ISO containers in port, shipyard, routes, bridges, tunnels, transfer station, supporting multimodal transport logistics system. 45ft long fit 4 to 14 sets container locks suitable for 45′ dry container, tank container and reefer container etc.

sinotruk howo container chassis trailer-4
Specification
Semi Trailer Sinotruk Howo Container Chassis Trailer
Dimension 13950*2500*1550mm
Height 1550mm
Width 2500mm
Skeletal trailer weight 6500Kg
Main Beam “I” Section 500mm height Q345/T700 material
Twist-Lock 12/14 set  ISO Standard
Suspension Mechanical / Air / Bogie
Axle 3 axles BPW/FUWA/PDME etc
Rim 8/12/16 pieces 9.0-22.5 Steel/Aluminum
Tire 8/12/16 pieces 12R22.5 Bridgestone/Triangle/Linglong etc
Brake Valve WABCO
Brake Chamber 4/6 sets T30/30
Air Tank 28L
Brake Pipe Nylon Wire Pipe
Landing Gear 28T Lifting JOST/YAHUA
Kingpin 2″(50mm)/3.5″(90mm) JOST Bolting Type
Lights 12v/24v LED Waterproof
Color Customized



Sinotruk Howo Container Chassis Trailer Pictures



Sinotruk Howo Container Chassis Trailer | sinotruk trailer | chassis container trailer​ | container chassis semi trailer​



Sinotruk Howo Container Chassis Trailer | sinotruk trailer | chassis container trailer​ | container chassis semi trailer



Sinotruk Howo Container Chassis Trailer | sinotruk trailer | chassis container trailer​ | container chassis semi trailer



Product Applications
sinotruk howo container chassis trailer-2
Sinotruk Howo Container Chassis Trailer
sinotruk howo container chassis trailer-1
Sinotruk Howo Container Chassis Trailer
sinotruk howo container chassis trailer
Sinotruk Howo Container Chassis Trailer
