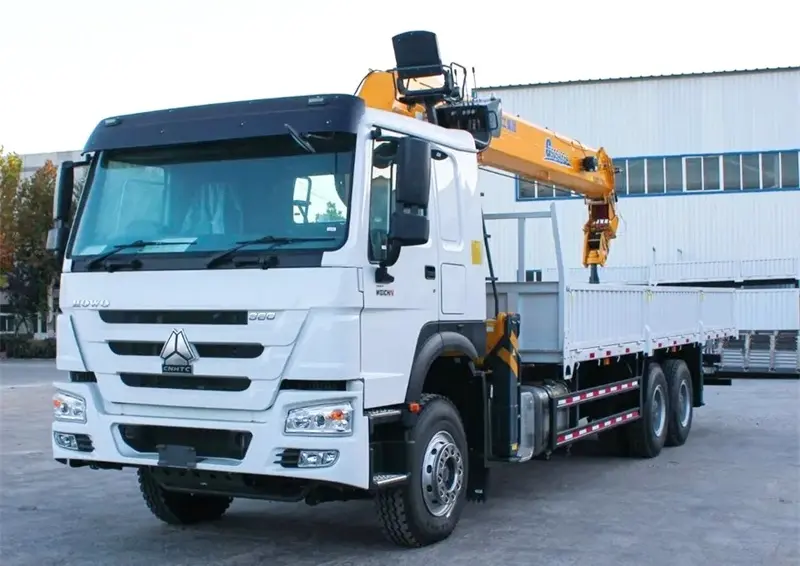

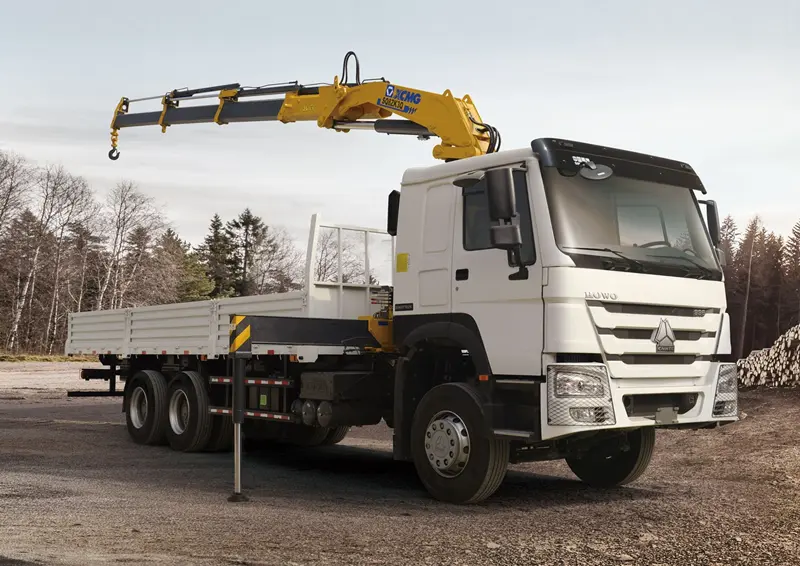

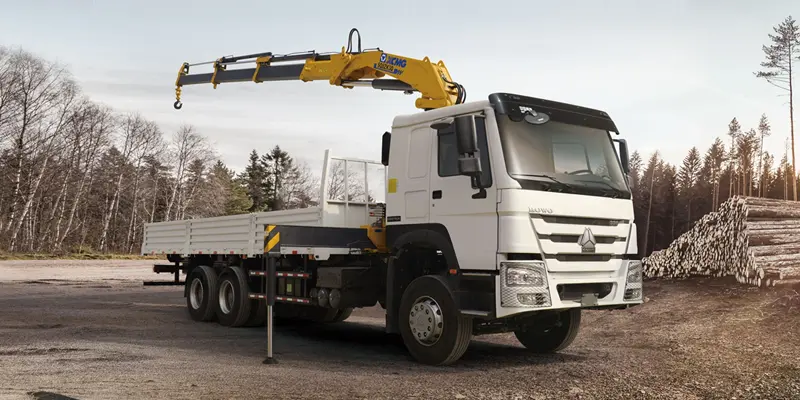

Sinotruk Howo 7 6×4 Crane Truck

Vehicle type

Special Vehicles

Model

ZZ5257N5247B1

Power(hp)

340

Engine

WP10.340E22 engine

Emission level

Euro II

Total mass (t)

Drive type

6x4

WhatApp Message

Product Introduction

Overview

The Sinotruk Howo TX 6×4 tanker truck is a high-performance heavy-duty truck designed for oil transportation. With a 6×4 drive layout, it offers the power and stability to drive safely in all kinds of complex road conditions.The Sinotruk Howo TX tanker truck has a fuel tank capacity of typically more than 20,000 liters, which is suitable for long-distance transportation and large-scale oil distribution.

Equipped with a state-of-the-art pumping system, the tanker is able to carry out refueling and unloading operations quickly and efficiently, which greatly improves work efficiency. In addition, the Sinotruk Howo TX 6×4 tanker’s body design is carefully optimized for durability and corrosion resistance, ensuring excellent performance over long periods of use.

Sinotruk Howo 7 6x4 Tractor Truck

Safety is one of the highlights of Sinotruk Howo TX tanker trucks. The vehicle is equipped with multiple safety protection systems to ensure the safety and stability of the oil during transportation. Whether it’s at a gas station in the city or in a remote oil field, the Sinotruk Howo TX 6×4 tanker truck excels and is ideal for all types of oil transportation. Sinotruk Howo TX 6×4 tanker truck reliable performance and economical operating costs make it the first choice for many logistics companies.

Parameters

Brand: HOWO	Strain: 7	Substrain: 7
Vehicle category: Medium and heavy trucks	Vehicle Use: Special Purpose Vehicle, Crane Truck	Drive type: 6×4, 8×4
Total mass (t): 25	Total mass (kg): 8500	Wheelbase (mm): 5225
Vehicle length (mm): 10855	Vehicle width (mm): 2494	Vehicle height (mm): 3147
Truck Model: ZZ5257N5247B1
Engine: WP10.340E22 engine	Engine power (Ps): 340	Emission level: Euro II
Cab: HW76 new front cab	Transmission: HW19710 gearbox + HW70 Power take-off(PTO)
Frame: Double layer frame (8+8/300)	Front axle: VGD95 hand-adjustable arm front axle (drum)	Drive axle: MCX16ZG hand-adjustable arm double rear axle (drum)
Drive axle speed ratio: ratio 4.803	Steering gear: Bosch steering gear	Brake control system: without ABS
Bumper: High bumper (full metal)		Fuel tank/gas cylinder: 400L fuel tank
Tires: 295/80R22.5 tires (mixed tread/18PR)
Howo Crane Truck Specifications: Vehicle Type: Special Purpose Vehicle (Carrying Crane) Cab: HW76 new front cab Engine: WP10.340E22 Transmission: HW19710 + HW70 flange pickup Axles: VGD95 front, MCX16ZG rear (hand-adjustable-arm) Frame: Double-deck (8+8/300) Suspension: Front/rear reinforced multi-leaf springs (10/12) Steering: Bosch steering wheel Exhaust System: Standard version ABS: Without ABS Bumper: High-level (all metal) Seats: Main mechanical + secondary lightweight Speed Ratio: 4.803 Intake System: Road version Tires: 295/80R22.5 (mixed tread/18PR) Fuel Tank: 400L Optional Features: E-mark certified, rear tow hitch, unlimited speeds, fire extinguisher, reverse buzzer, under-vehicle start-stop switch Protection: Metal bumpers with light protectors, intercooler protection Comfort: Cold and warm air conditioning

Product Advantages

Sinotruk howo 7

HOWO-7: Fully Equipped to Face the Toughest Working Conditions
The HOWO-7 truck excels in challenging environments like construction sites and mines, thanks to its strength, ruggedness, and durability.
In harsh working environments, HOWO-7 is fully equipped to face the toughest working conditions.

High comfort

The HOWO 7 series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.

Safe cabin

The cabin's body is constructed with a one-piece steel frame, providing robust strength, rigidity, and superior resistance to impacts and external forces. Its safety performance has been proven through stringent crash testing.

Air cushion

The air cushion helps the driver quickly find a suitable seating position; the ergonomic design of the seat belt and seat helps avoid the driver feeling suffocated due to emergency braking while driving.

Four-point air suspension

The four-point air suspension provides excellent stability, shock absorption, and comfort, and features a cabin rearward displacement function during collisions, ensuring passenger safety.

Product Applications

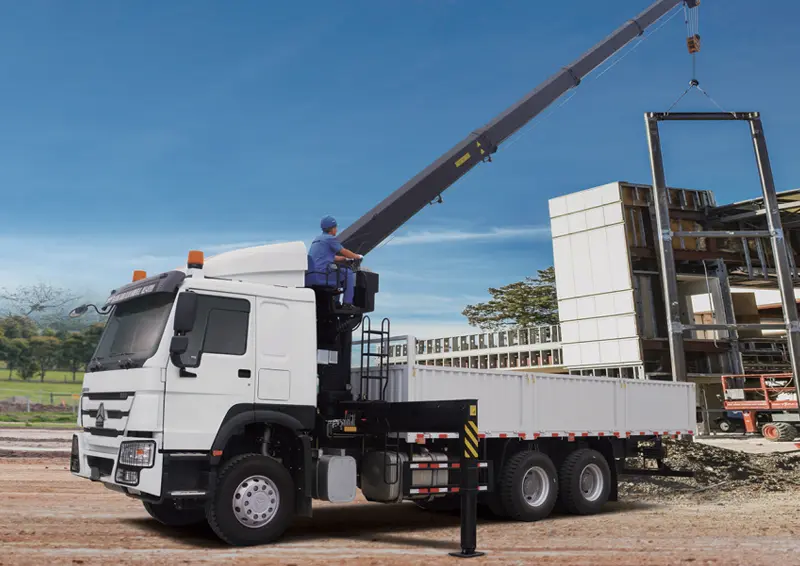

Sinotruk Howo 7 6×4 Crane Truck
