Sinotruk Howo 380 Mixer Truck Price China

Sinotruk Howo 380 Mixer Truck Price China

Vehicle type
Mixer Trucks
Model
ZZ1317V3267B1
Dimension(m)
12000×2.496×3950
Maximum Speed
80km/h
Mixing dynamic volume
14m³
Engine
Sinotruck D10.38-50
Drive type
8x4
Product Introduction
Overview

Sinotruk howo 380 mixer truck price china (8×4) has become an ideal choice for the engineering and construction field due to its powerful power performance, durable design and efficient mixing capacity. Sinotruk howo 380 mixer truck price china (8×4) intelligent configuration and safety safeguards enable it to perform well under complex working conditions, meeting users’ needs for efficiency and reliability.

Powerful performance:
Sinotruk howo 380 mixer truck price china (8×4) is equipped with a 380 hp engine, which is powerful and suitable for heavy-duty transportation.
Optimized fuel economy to reduce operating costs.

Rugged design:
Frame is made of high-strength steel with excellent load-bearing capacity.
The mixing drum is made of wear-resistant material, which has strong corrosion resistance and prolongs the service life.

High-efficiency mixing capacity:
Sinotruk howo 380 mixer truck price china (8×4) mixing drum is scientifically designed for even mixing and high efficiency.
Suitable for all kinds of concrete transportation needs, ensuring construction quality.

Comfortable Driving Experience:
Sinotruk howo 380 mixer truck price china (8×4) is equipped with a spacious cab with a wide field of vision and convenient operation.
The humanized design of the seat and console reduces driving fatigue.

Intelligent and safe:
Sinotruk howo 380 mixer truck price china (8×4) is equipped with an intelligent monitoring system to monitor the vehicle status in real time.
Support GPS navigation and fault warning function to enhance safety.

Multi-functional adaptability:
8×4 drive form adapts to complex working conditions.
Large-capacity mixing drum meets the needs of various projects.

Sinotruk howo 380 mixer truck price china

Sinotruk howo 380 mixer truck price china (8×4) is widely used in urban construction, large-scale infrastructure, roads and bridges and construction projects in remote areas due to its excellent performance and reliability. Sinotruk howo 380 mixer truck price china strong adaptability and efficient concrete transportation capacity make it one of the indispensable equipment in the construction industry.

sinotruk howo 380 mixer truck price china-1
Parameters
SINOTRUK HOWO 380 MIXER TRUCK
Cabin HW76 cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
Engine Diesel 4-stroke direct injection diesel engine
Engine model:WP10.380E22380HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Transmission HW19710, 10F & 2R
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle VGD95, 1×9500 KGS
Steering with double T-cross section beam
Rear Axle MCX16ZG, 2×16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Chassis Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members
Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires 12.00R20, Radial (steel wire) Tires. 10+1 Pics.
Mixer Body Tank Body: it can as your requirements
Fuel Tank 400L
Overall Dimension 9000*2550*3950 mm
Product Advantages
sinotruk howo 380 mixer truck price china-7
Chassis structure
High-strength frame with strong load-bearing capacity.
A variety of wheelbase options to adapt to different transportation needs.
sinotruk howo T5G mixer trucks for sale-6

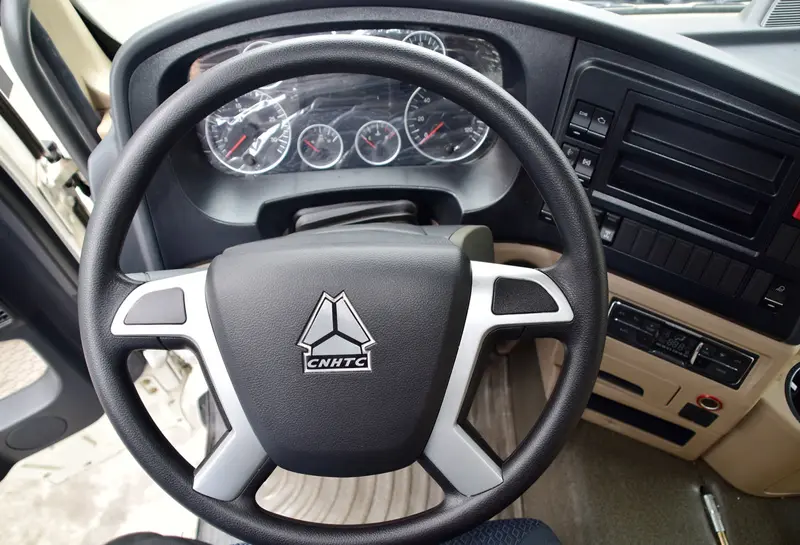

Driver's compartment
Equipped with cold and warm air conditioning system, adapting to various climate conditions.
Multi-functional instrument panel with clear and easy-to-read information display.
Equipped with airbags and anti-collision design to protect the driver's safety.
sinotruk howo 380 mixer truck price china-4
Mixing barrel
Volume: 10-12 cubic meters available.
Material: high-strength wear-resistant steel, prolonging service life.
Mixing speed: high efficient and stable, ensure the uniformity of concrete.
sinotruk howo 380 mixer truck price china-6

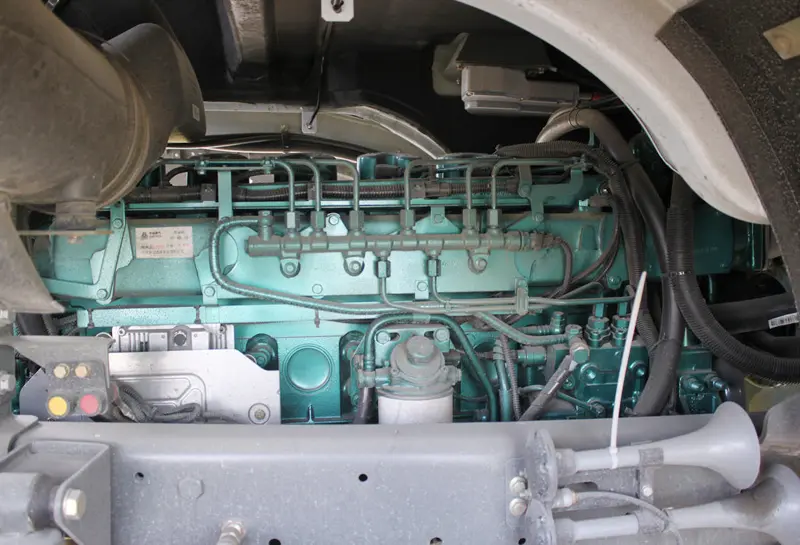

Power system
Engine model: Sinotruk WD615 series engine.
Maximum power: 380 hp, meeting the demand of efficient transportation.
Fuel type: diesel fuel, in line with National VI emission standards.
sinotruk howo 380 mixer truck price china-5

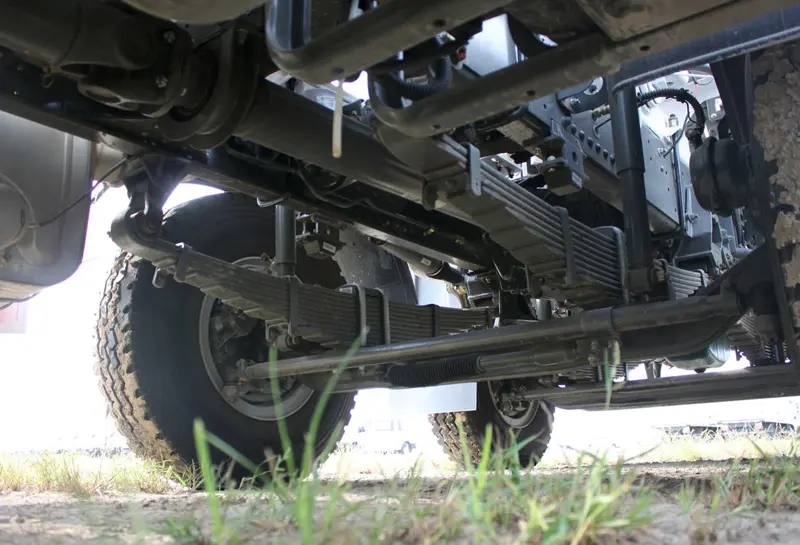

Chassis construction
Drive form: 8x4 drive, suitable for heavy duty transportation.
Reinforced axle and suspension system provide higher load carrying capacity.
Product Applications
sinotruk howo 380 mixer truck price china-3
Sinotruk howo 380 mixer truck price china
sinotruk howo 380 mixer truck price china-1
Sinotruk howo 380 mixer truck price china
sinotruk howo 380 mixer truck price china
Sinotruk howo 380 mixer truck price china
