Home > Trucks > Cargo Trucks > Sinotruck Howo TX 270 4×2 Cargo Truck

Sinotruck Howo TX 270 4×2 Cargo Truck

Sinotruck Howo TX 270 4×2 Cargo Truck

Vehicle type
Cargo Trucks
Model
ZZ5187CCYK501GF1
Engine
SINOTRUK MC07.27-60
Horsepower
270hp
Fuel tank
400L
Transmission
SINOTRUK HW11710ACL
Max Speed
89KM/h
WhatApp Message
sinotruck howo 4×2 TX cargo truck

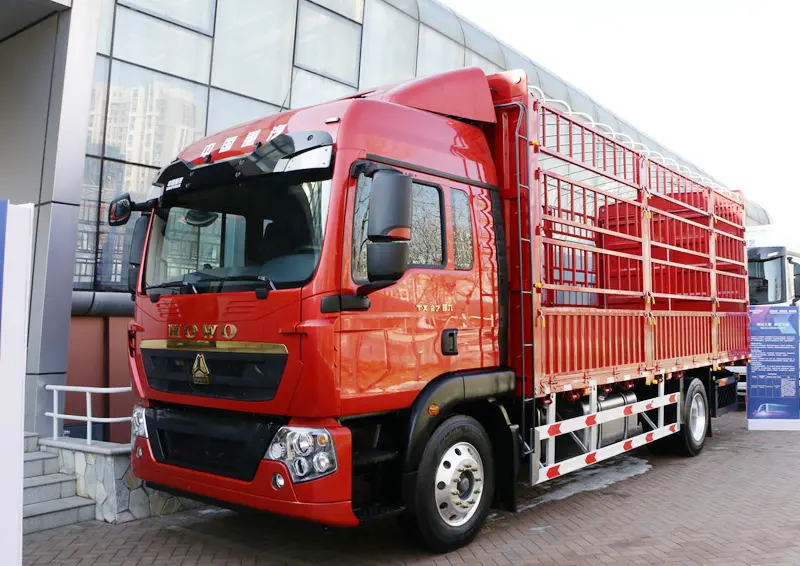

sinotruck howo 4×2 TX cargo truck-1

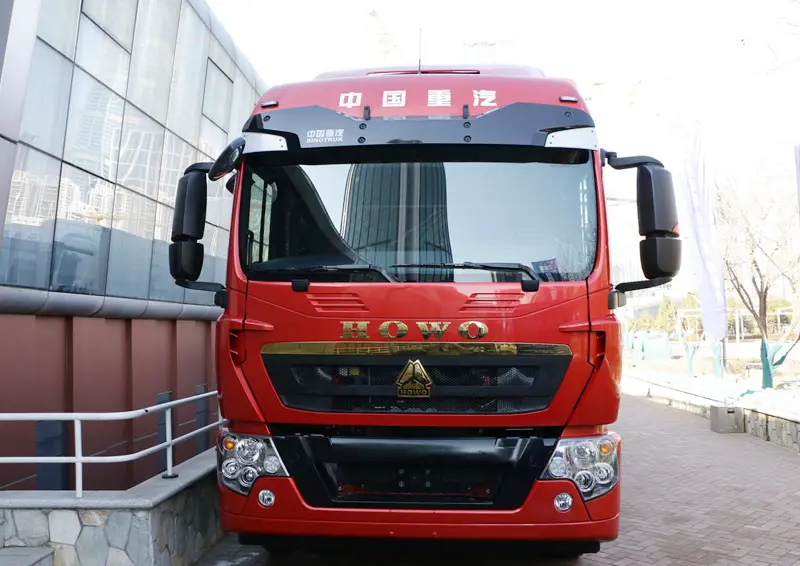

sinotruck howo 4×2 TX cargo truck-2

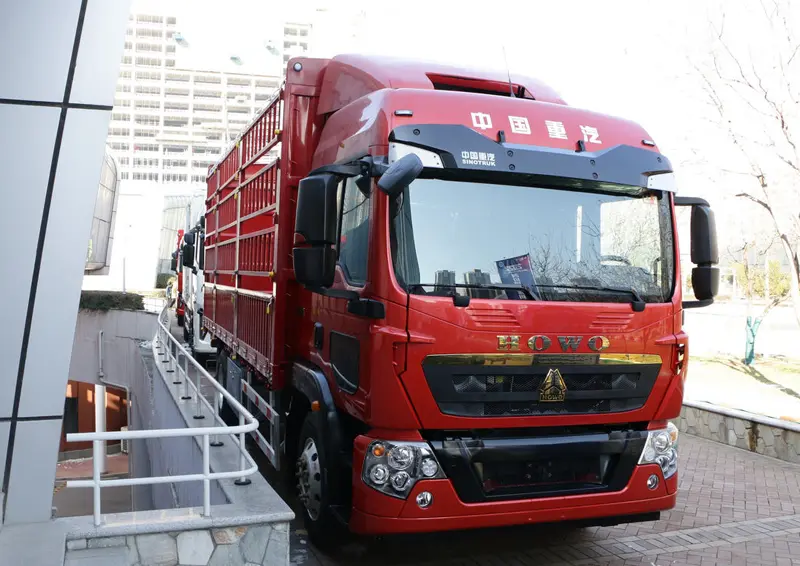

sinotruck howo 4×2 TX cargo truck-3
sinotruck howo 4×2 TX cargo truck
sinotruck howo 4×2 TX cargo truck
sinotruck howo 4×2 TX cargo truck-1
sinotruck howo 4×2 TX cargo truck-2
sinotruck howo 4×2 TX cargo truck-3
sinotruck howo 4×2 TX cargo truck
Product Introduction
Overview

New Benchmark for Trunk Transportation: Sinotruck Howo TX 270 4×2 Cargo Truck
The Sinotruck Howo TX 270 4×2 Cargo Truck, specially designed for efficient logistics, is equipped with a 270 hp National VI emission engine with a peak torque of 1,050N-m, which, together with the small speed ratio rear axle, achieves excellent fuel consumption of only 22L per 100km at high speeds.

With the small speed ratio rear axle, Sinotruck Howo TX 270 4×2 Cargo Truck realizes the excellent performance of fuel consumption of only 22L in 100km under high speed working condition. The combination of 4×2 drive and 9-ton front axle/16-ton rear axle keeps the weight of the truck at 6.8 tons and the compliant load up to 15 tons.

Sinotruck Howo TX 270 4×2 Cargo Truck

Power Chain Matching: Sinotruck Howo TX 270 4×2 Cargo Truck adopts the golden combination of HW19710CL transmission + MCY08BGS drive axle, which improves the transmission efficiency by 5%.

Scene Adaptability: Optimized for express transportation. Platform height (1.1m) + maximum 40m³ cargo volume, support for dumping transportation.

Maintenance cost: 100,000km long oil change cycle, key components are used in the international first-tier supplier system.

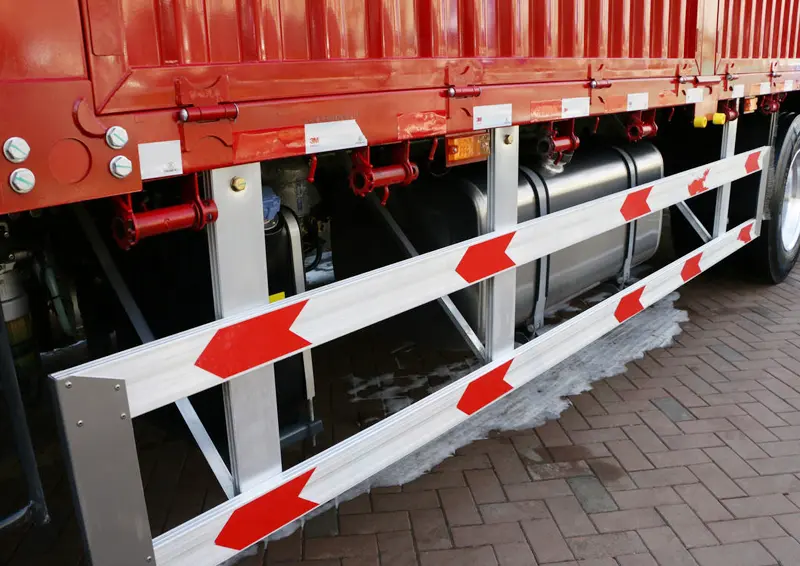

sinotruck howo 4×2 TX cargo truck-8
Parameters
Truck Namer Sinotruck Howo TX 270  4×2 Cargo Truck
Engine Model MC07.29-61
Dimensions (mm) 12000×2550×3980
Wheelbase (mm) 7100
Front overhang and rear overhang (mm) 1430/3470
Factory-determined maximum total mass (Kg) 18000
Rated number of passengers (persons) 2,3
Engine model MC07.29-61
Net power (kw)/speed (r/min) 210/2200
Maximum torque (Nm)/speed (r/min) 1200/120-1800
Gearbox HW11710ACL (hand-held gear) gearbox
Clutch (mm) φ430
Rear axle model MCJ09BGY Self-adjusting arm single rear axle (drum)
Rear axle ratio 3.91
Fuel tank (L) 600
Frame section (mm) (6+4)250
Suspension (front spring, rear spring) Standard front and rear multi-leaf springs (7/7+3)
tire 295/80R22.5 tire (longitudinal pattern/18PR)
Product Advantages

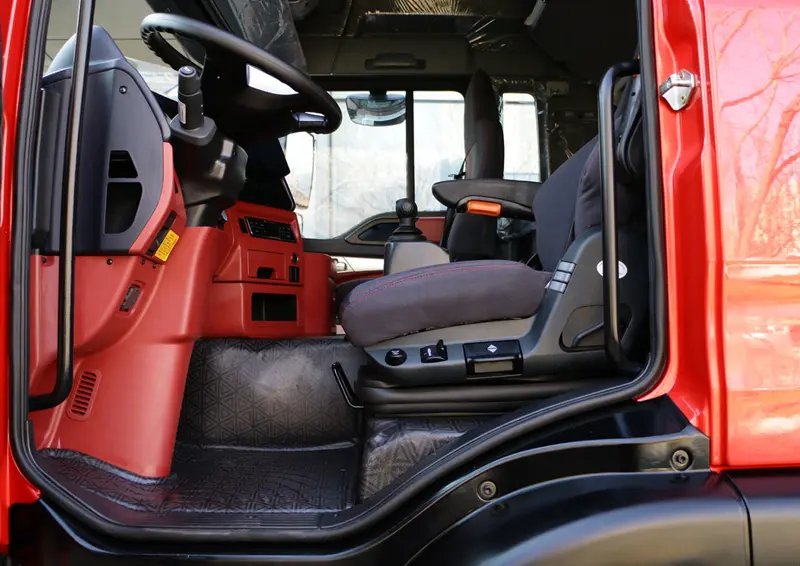

sinotruck howo 4×2 TX cargo truck-4
Ideal Working Environment
Sinotruck Howo TX 270 4×2 Cargo Truck cab is designed with the driver in mind, prioritizing comfort and convenience to enhance both work and living conditions. Every detail reflects a deep understanding of their needs.

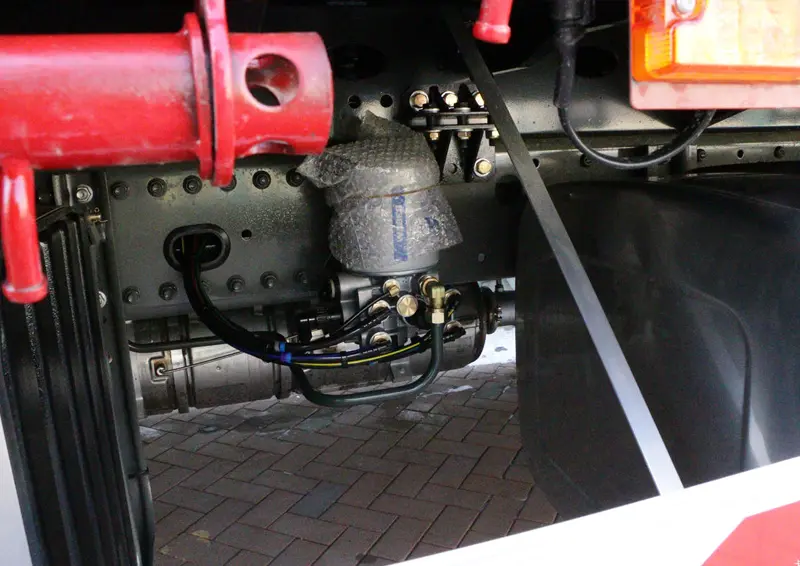

sinotruck howo 4×2 TX cargo truck-7
Strong Power, Efficient and Reliable
Meticulous design and optimization of the Sinotruck Howo TX 270 4×2 Cargo Truck powertrain, combined with careful component matching and integration, delivers seamless power transmission, maximized efficiency, enhanced vehicle performance, and significantly reduced fuel and maintenance expenses. It delivers stable and reliable power support for a wide range of applications, including long-distance hauling, heavy-load transport, and challenging road conditions.

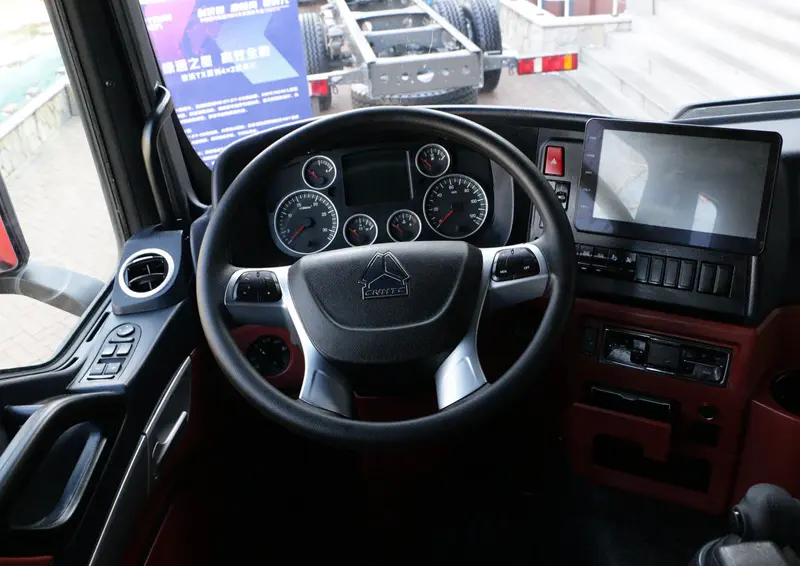

sinotruck howo 4×2 TX cargo truck-5
Intelligent Technology
Sinotruck Howo TX 270 4×2 Cargo Truck,Navigation System: optional GPS navigation system, convenient for route planning for long-distance transportation.
Audio system: equipped with audio system to enhance the driver's comfort in long-distance traveling.

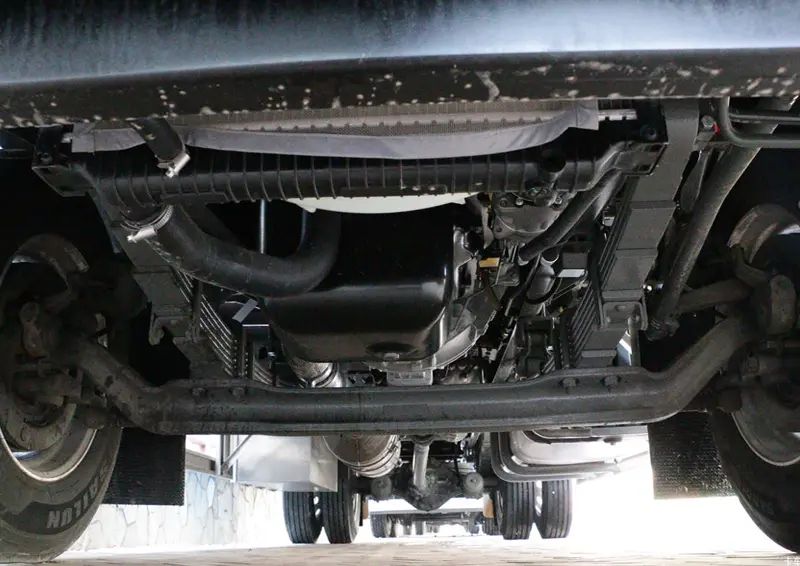

sinotruck howo 4×2 TX cargo truck-6
Chassis & Drive
Sinotruck Howo TX 270 4×2 Cargo Truck drive configuration, providing strong traction and stability, suitable for heavy-duty transportation.
Suspension system: steel plate spring suspension is adopted in front and rear, which enhances the anti-shock ability and comfort of the vehicle.
sinotruck howo 4×2 TX cargo truck-8
MC Series Engine
Sinotruck Howo TX 270 4×2 Cargo Truck Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.
Product Applications

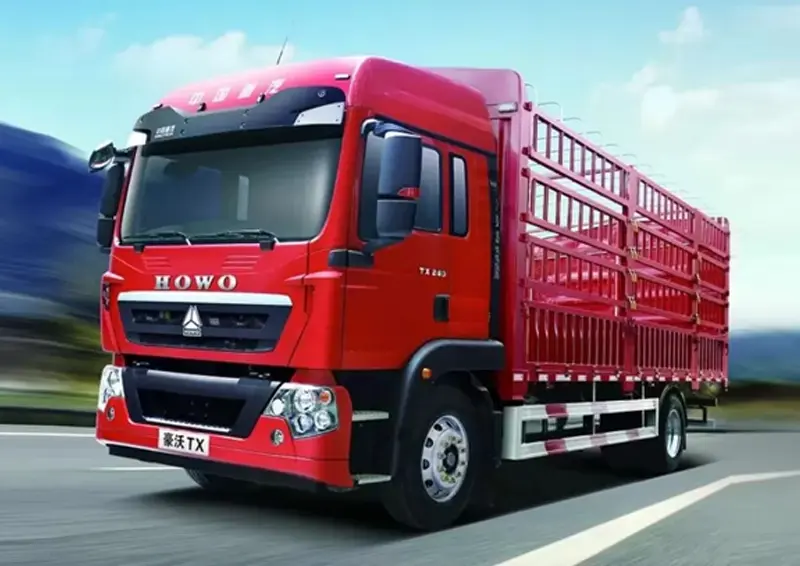

sinotruck howo TX 4×2 cargo truck-2
Sinotruck Howo TX 270 4×2 Cargo Truck
sinotruck howo TX 4×2 cargo truck-4
Sinotruck Howo TX 270 4×2 Cargo Truck
sinotruck howo 4×2 TX cargo truck-3
Sinotruck Howo TX 270 4×2 Cargo Truck
sinotruck howo 4×2 TX cargo truck-2
Sinotruck Howo TX 270 4×2 Cargo Truck
sinotruck howo 4×2 TX cargo truck-1
Sinotruck Howo TX 270 4×2 Cargo Truck
