Home > Trucks > Dump Trucks

Howo sinotruk 420 hp

Vehicle type

Dump Trucks

Model

ZZ3257M3841W

Engine (Ps)

WD615.69

Dimension

8545x2496x3450mm

Fuel tanker capacity

300L

Drive type

6x4

Max speed(km/h)

WhatApp Message

Product Introduction

Overview

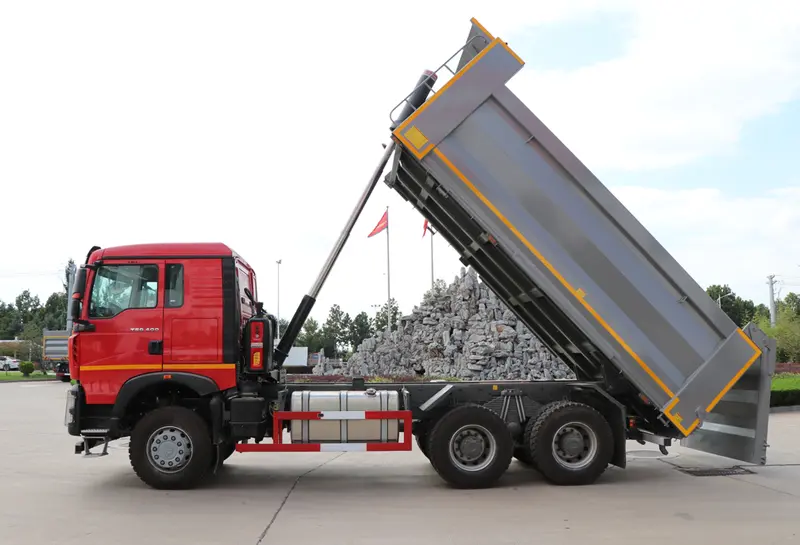

Howo sinotruk 420 hp dump truck, known also as a dumper truck or tipper truck, is used for taking dumps (such as sand, gravel, or demolition waste) for construction as well as coal. A typical Howo sinotruk 420 hp dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited (dumped) on the ground behind the truck at the site of delivery.

Howo sinotruk 420 hp

The highly-general chassis can perfectly complete the tasks in various scenarios; a variety of cabs with different configurations can meet your different driving needs; Engines at various HP + transmissions with various torques can use the horsepower requirements in various scenarios. In short, no matter what you need, you have made the right choice to give it to the versatile HOWO

Parameters

Truck Mode		ZZ3257M3841W
Truck Brand		SINOTRUK –HOWO
Driving Type		Left Hand Driving optional
Dimension(Lx W xH)(unloaded)(mm)		8545x2496x3450
Cargo body size (LWH)		5600x2300x1120
Cargo body thickness(mm)		bottom:8mm, side:6mm
Lift type		Under-body Hydraulic Lifting
Wheel base (mm)		3825+1350
Max speed(km/h)		80
Curb weight(kg)		12190
Loading Weight(kg)		12680
Fuel tanker capacity(L)		300
Clutch		Single-plate dry clutch Φ430mm
Engine Model (Steyr technology, made in China)		WD615.69
		336HP
		EURO II
		Diesel
Transmission		HW19710,10 forwards and 2 reverse
Steering system		8118
Front axle	HF9
Rear axle	HC16
Color	Optional
Tire	12.00R20 10+1 spare
Cab	HOWO76 single sleeper & air-condition

Product Advantages

Smarter and more convenient

The 7-inch central control screen is adopted for convenient human-computer interaction. The multi-functional leather steering wheel are provided with 16 buttons, which are easy to operate and can be upgraded with functions such as Bluetooth phone, MP5 player, instrument menu and AEB.

More comfortable

Optimized air distribution at the driver and passenger side vents can provide a more comfortable body feeling. The overall air volume has increased by 9.5% compared to the previous generation. Under the sleeper, an integrated super-large storage space is added to make the space utilization more reasonable.

More safely,more quieter

The cab is designed with four-point suspension, which can filter out bumps and vibrations. Moreover, the cab shock absorbers and chassis shock absorbers have undergone comprehensive recalibration and tuning, so that the noise level of the complete vehicle is reduced by 3dB, creating a quieter driving environment.

Golden Power

The Howo TX truck is upgraded to a new generation of golden power system, providing a richer range of power configurations to meet different needs. It can output strong power of up to 540 HP and 2500 Nm, and fully meet the emission requirements of Euro ll to Euro VI.

Advanced Driver Assistance System (ADAS)

We embrace a people-first approach to safety, putting the well-being of all road users at the forefront. Utilizing digital technology for intelligent monitoring and control, we wholeheartedly safeguard your safety during your journey.

Global Supply Chain

The Howo truck is equipped with assemblies and parts from world-class supply chain,comprehensively improving vehicle reliability and stability.WABCO valves, BOSCH steering gear and VOSS pipe joints are used, all of which are reliable and stable.Global top Sax damping and tuning systems are selected.

Product Applications

Howo sinotruk 420 hp

Howo sinotruk 420 hp

Howo sinotruk 420 hp

Howo sinotruk 420 hp
