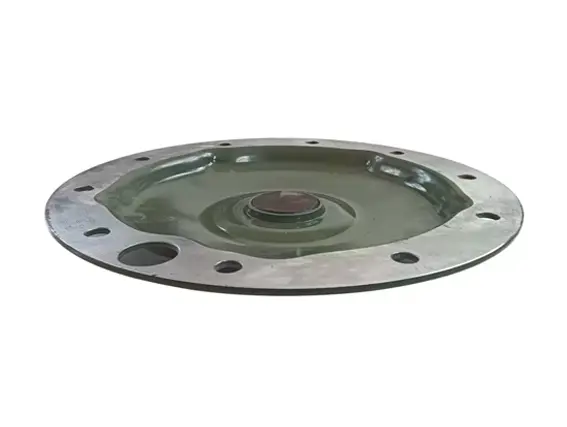

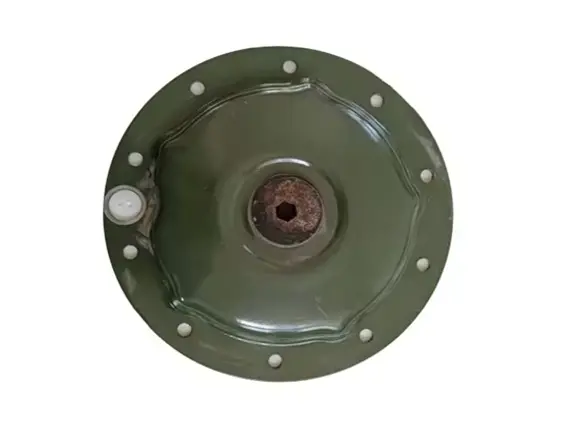

WG7129340001 Howo Spare Parts AC16 Axle Wheel Edge End Cover

Model Number:WG7129340001

Material: Iron

Application:Sinotruk Heavy Duty Truck

Place of Origin:Shandong,China

DELIVERY TIME:7-25 Days

Single package size:30X10X30 cm

WhatApp Message

Part Details

HOWO AC16 REAR AXLE HUB AND BRAKE PARTS
Number	Material Code	Name	Quantity
1	AZ7129340310	Rear wheel hub assembly	2
1.1	WG7129340309	Rear wheel hub	1
1.2	WG7121340130	Wheel bolts	10
2	WG9231340002	Cylinder head hexagonal plug assembly	2
3	WG9981330024	Magnetic Hexagonal Cone Plug Assembly M24x1.5 DIN158	2
4	WG7129340001	End cap assembly	2
5	WG9981340065	End cap paper pad	2
6	MQ6-02099-0204	Hexagonal socket head screw M12X1.5X30-8.8-A3C	6
7	WG9981340066	Hexagonal flange bearing face toothed bolt	20
8	ZQ150B0816	Hexagonal head bolt M8	12
9	WG7129340185	Locking gasket	2
10	Q2541025	Cross groove countersunk head screw	4
11	WG9100340056	Gap adjustment arm assembly (left)	1
12	WG9100340057	Gap adjustment arm assembly (right)	1
13	WG9761450176	Extreme alarm device	2
14	WG9981451015	Return spring	4
15	Q5280430	Elastic cylindrical pin	4
17	AZ9003960010	Locking screw	4
18	WG7121340035	Brake dust cover (left)	2
19	WG7121340036	Brake dust cover (right)	2
20	AZ7129341170	Wheel reducer housing assembly	2
21	Q50110	Lock pin	4
22	WG9012340011	End cap top pin	2
23	WG7129340171	Sun gear (Z=19)	2
24	WG9003990052	Steel wire retaining ring for shaft	2
25	AZ9981340423	Half axis (left)	1
26	AZ9981340424	Half axis (right)	1
27	AZ7129340172	Thrust pad	2
28	WG7129340051	Internal gear ring (Z=56)	2
29	WG9231340016	Locking gasket	2
30	WG7129340020	Ring gear bracket assembly	2
31	710W90810-0074	Wire retaining ring	2
32	WG9012340029	seal ring	4
33	710W96002-0230	Blocking DM8mm	2
34	WG9981032222	Conical roller bearing 32222	4
35	AZ7121340019	Spacer assembly	2
36	WG9981340213	Shaft sealing ring	2
37	WG9012340020	Sealing gasket	2
38	WG7121340921	Oil shield	2
39	Q40308	Spring washer	20
40	ZQ150B0816	Hexagonal head bolt M8	20
41	WG9231342006	Rear brake drum (high carbon)	2
42	WG880440010	Additional gasket	4
43	WG880340023	O-ring seal	2
44	WG7121340007	bushing	4
45	1.90004E+11	External Circlips	2
46	WG9231340318	Oil blocking pan	2
47	WG9981340226	Brake camshaft (left)	1
48	WG9981340227	Brake camshaft (right)	1
49	WG880440032	Return spring pin	4
50	AZ9231342073	Brake shoe lining assembly	4
50.1	WG9231342074	Brake shoes	1
50.2	WG9231342066	Lift up brake friction pad (cam side)	1
50.3	WG9231340068	rivet	26
50.4	WG9231342069	Enhanced brake friction pad	1
51	1.99E+11	Support sales	4
52	Q5280624	Elastic pillar sales	4
53	WG9231340556	ABS sensor bracket	2
54	WG9112340049	Return spring	4
55	WG9000340027	Roller	4
56	ZQ151B1635TF2	Hexagonal head bolt M16 * 1.5 * 35	16
57	ZQ151B1645TF2	Hexagonal head bolt M16 * 1.5	4
58	WG9981340060	Brake base plate (left)	1
59	WG9981340061	Brake base plate (right)	1
60	1.99014E+11	Camshaft bracket	2
61	710W96002-0267	Rubber stopper	4
62	AZ9003963030	Lubricating grease nozzle assembly (AM8 * 1 D71412)	4
62.1	1.90004E+11	Metric taper thread grease nozzle	1
62.2	AZ9003963010	Grease nozzle cap	1
63	ZQ151B1490	Hexagonal head bolt M14 * 1.5	2
64	ZQ151B1445	Hexagonal head bolt M14 * 1.5	2
65	WG880340022	Gasket	2
66	WG80 320028	Adjust the gasket	1
67	WG80 320029	Adjust the gasket	1
68	WG80 320030	Adjust the gasket	1
69	WG80 320046	Adjust the gasket	1
70	1.90004E+11	Shaft spring retaining ring	2
71	WG9112340010	ABS sensor output protective cover	2
72	Q40308	Spring washer	12
73	WG3809470031	Adjust the gasket	1
74	WG3809470032	Adjust the gasket	1
75	WG3809470033	Adjust the gasket	1
76	WG880340031	Adjust the gasket (thickness 0.1)	1
77	WG880340032	Adjust gasket (thickness 0.15)	1
